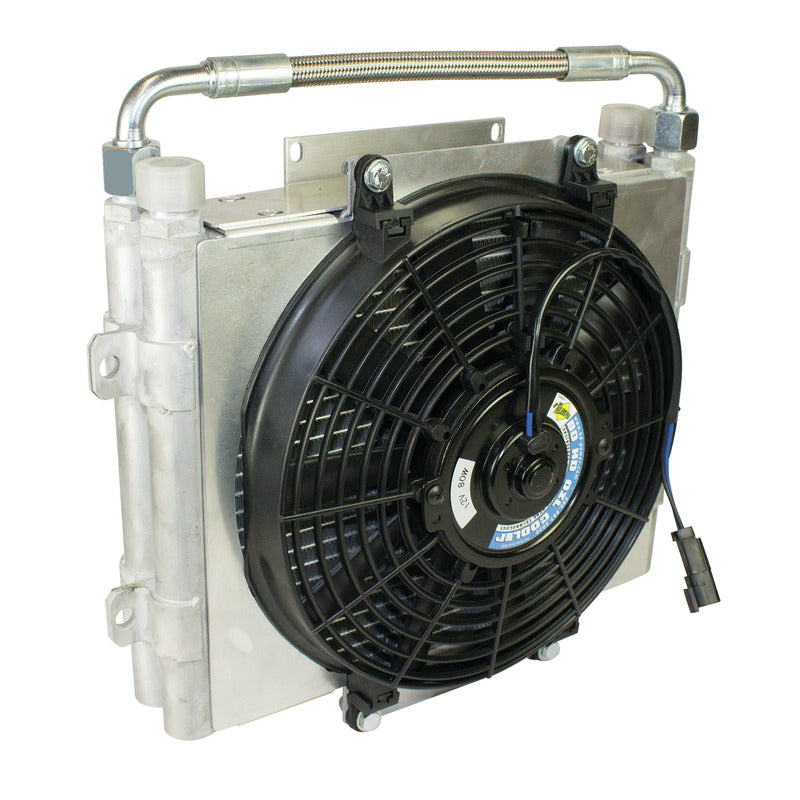

Xtrude Trans Cooler Double Stacked (No Install Kit) BD Diesel
Xtrude Trans Cooler Double Stacked (No Install Kit) BD Diesel
Couldn't load pickup availability
- If there is an applicable core charge, it will be included in this price and will be avail for a refund when approved after cores are returned and inspected. core charges can apply to injectors, turbos, injection pumps and possibly a few other parts. please contact if you have any questions.
Hot Tranmission oil has to be Cooled to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350 percent temperature drop versus the factory system - 36 percent better temperature drop than BD's standard single core kit.
The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure.
The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.
Warranty:
Parts
- 12-Months
- 24,000 Miles
Note:
Exceeding the duty cycle may result in voiding the
Warranty:
Intended to be used in conjunction with factory Tranmission coolers and not as stand-alone units
Emissions:
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)
Features:
- Cooler Assembly Only
- Double stacked cores deliver over 40,000 BTU/HR of cooling
- Over 350 percent temperature drop versus the factory system
- 136 percent better temperature drop than XTRUDED single core kit
- Motor is IP54 with 65 percent duty cycle
