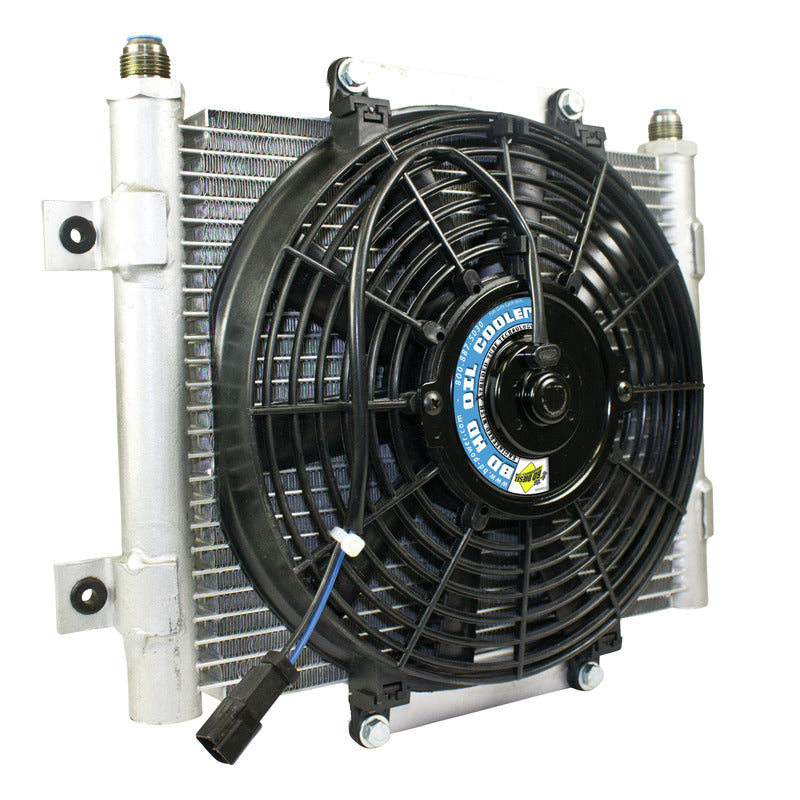

Xtrude Tranmission Cooler with Fan -10 JIC Male Connection BD Diesel1300611

22 percent more cooling over other designs; 200 Micro Extruded passages; Large surface area to transfer heat for external air flow cooling; Turbulent oil flow design promotes a more complete cooling; Large 5/8-inch ports prevents inlet/outlet restriction

Furnace brazed rails have been tested to 300psi of pressure; 80-watt, 10-inch, 800 CFM electric fan; 33,930 BTU/HR and in excess of 30,000 GVW!; Motor is IP54 with 65 percent duty cycle; Cooler Assembly Only

Warranty:

Parts

• 12-Months
• 24,000 Miles

Note:
Exceeding the duty cycle may result in voiding the

Warranty:

Intended to be used in conjunction with factory Tranmission coolers and not as stand-alone units

Emissions:

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)

Features:

• 22 percent more cooling over other designs
• 200 Micro Extruded passages
• Large surface area to transfer heat for external air flow cooling
• Turbulent oil flow design promotes a more complete cooling
• Large 5/8-inch ports prevents inlet/outlet restriction
• Furnace brazed rails have been tested to 300psi of pressure
• 80-watt, 10-inch, 800 CFM electric fan
• 33,930 BTU/HR and in excess of 30,000 GVW!
• Motor is IP54 with 65 percent duty cycle
• Cooler Assembly Only
