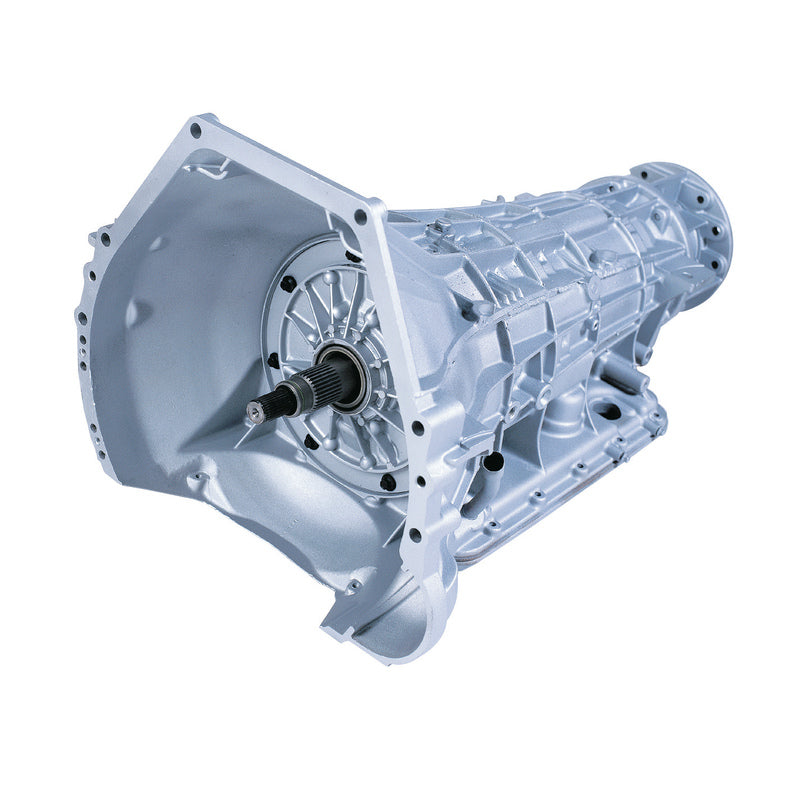

Tranmission Stage 4 Kit 1999-2003 Ford 7.3L Power Stroke 4R100 2WD PTO BD Diesel - 1064442FPTO

The stock Tranmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD Tranmission.

All Tranmissions come with BD's heavy duty Tranmission pan and most packages come bundled with our auxiliary Tranmission filter kit for added protection!

Install Time:

• 5 Hours

Warranty:

Parts

36-Months
150,000 Miles

Labor

12-Months
24,000 miles

Note:

No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air Tranmission cooler outlet.

Note:
BD Torque Converter must be installed at the time of installation of the Tranmission - use of a 3rd party or OE converter will invalidate the Tranmission

Warranty:

Emissions:

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)

Features:

• Increase the durability of your drivetrain
• BD aluminum HD deep pan, increases oil capacity by 6qt
• Re-calibrated accumulator body
• Quicker, firmer shifts
• Full shift kit with line mod valve to increase pressures
• Increased pressure to converter
• Added lube circuits to OD planet
• Added lube and support to output and Intermediate shafts
• Drilled and tapped Direct and Intermediate feeds to prevent leaks at case
• Upgraded OD snap ring
• Machined center support
• Reworked front pump
• Fully rollerized geartrain
• Clutch Count: Coast Clutch 2
• Clutch Count: Forward 5 (25 percent increase over stock)
• Clutch Count: Direct 5
• Clutch Count: Low Reverse 7 (17 percent increase over stock)
• Clutch Count: Intermediate 4 (33 percent increase over stock)
• Clutch Count: Overdrive 4 (33 percent increase over stock)
• Each Tranmission is dyno tested

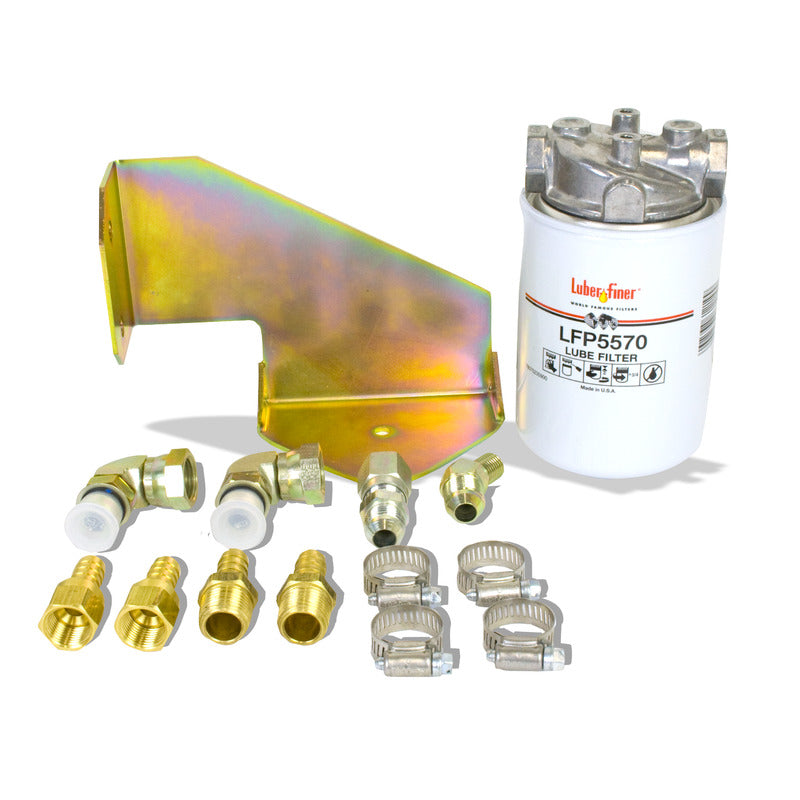

• 1990-2003 include auxiliary frame mounted full flow filter kit
• OEM equipt Tranmission mounted PTO

This Part Fits:

Specifications:
