TorqueMaster Dodge 68RFE Tranmission 2019-2024 4WD c/w Billet Input Shaft BD Diesel1064294B

BD's 68RFE is the industry leading Tranmission. BD has addressed the common failures associated with the stock 68RFE. Burnt Overdrive clutches are a thing of the past, utilizing custom billet QT100 reaction plates, longer Big Stack spline OD shaft, and 16 frictional surfaces.

Comes with Billet Input Shaft designed to withstand rapid acceleration and high torque.

Install Time:

• 9 Hours

Warranty:

Parts

36-Months
150,000 Miles

Labor

12-Months
24,000 miles

Note:

No Race abuse covered

Note:
BD Torque Converter must be installed at the time of installation of the Tranmission - use of a 3rd party or OE converter will invalidate the Tranmission

Warranty:

Special tuning required for 2019-up applications for increased line pressure

Emissions:

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)

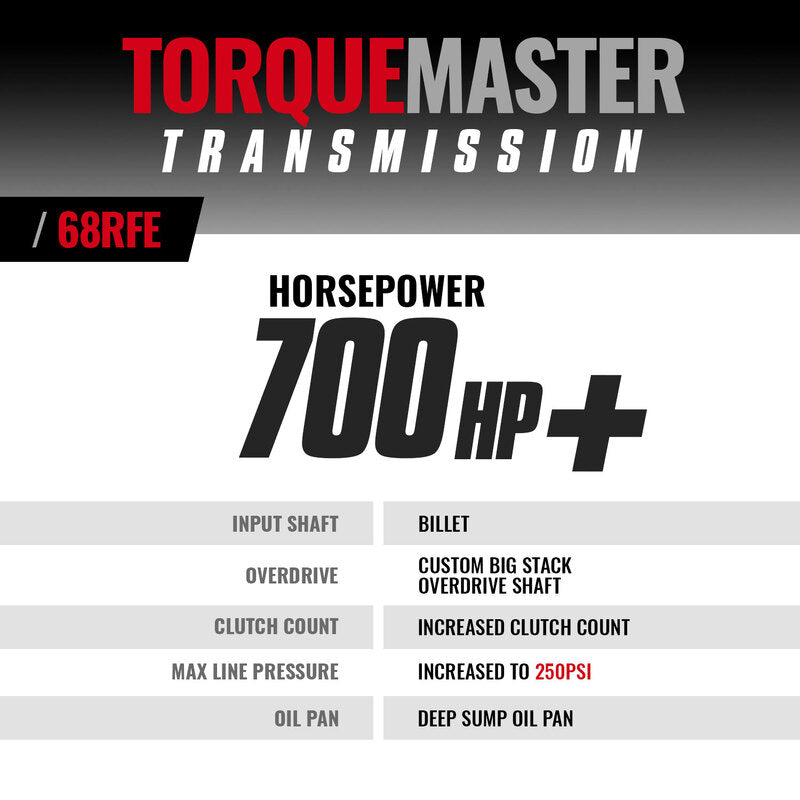

Features:

• Hard anodized valve body and new solenoid pack installed in every unit
• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• Heavy duty cam and roller design Low Reverse one way clutch
• New 4C billet spring retainer
• Steel girdle added to 2C piston to allow for more clutches and broader apply area
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Over Drive clutches 33 percent increase and 2C clutches 33 percent increase

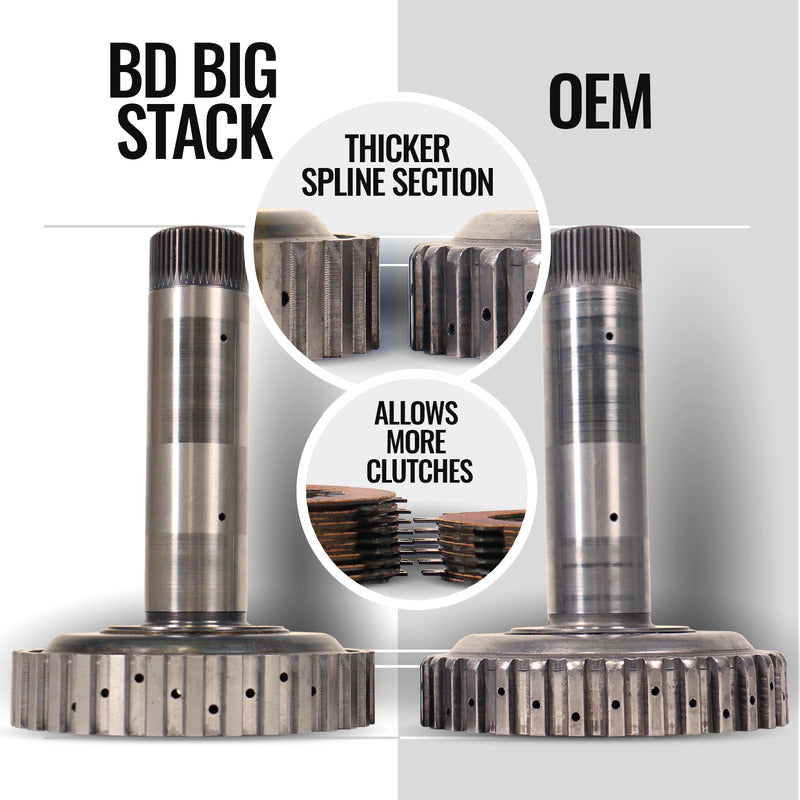

• Custom Big Stack Overdrive shaft
• BD reinforced accumulator plate
• BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
• Performance Tranmission but with the added touch of a Billet Input Shaft to take the snap from rapid throttle and high horsepower
• Special tuning required for 2019-up applications for increased line pressure. Line Pressure Controller not included.

This Part Fits:
