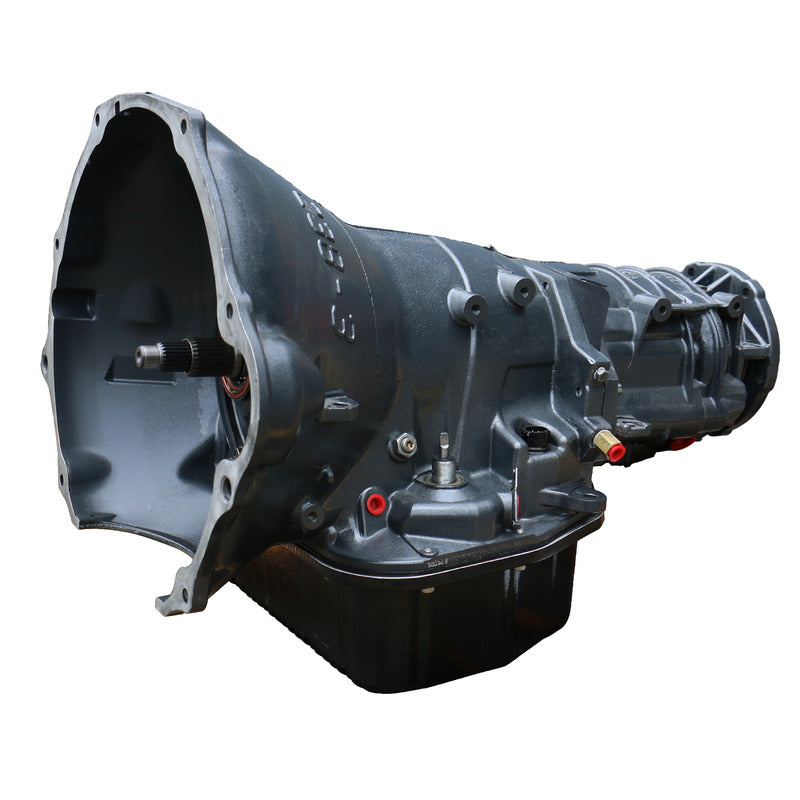

TorqueMaster Dodge 48RE Tranmission 2005-2007 4WD w/TVV Stepper Motor c/w Auxiliary Filter and Billet Input BD Diesel1064234BF

The stock Tranmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD Tranmission.

All Tranmissions come with BD's heavy duty Tranmission pan and most packages come bundled with our auxiliary Tranmission filter kit for added protection! Comes with Billet Input Shaft designed to withstand rapid acceleration and high torque.

The Perfect combination for those installing the ProForce 3 or Hi5 Torque Converter.

Install Time:

7 Hours 30 Minutes
Includes swapping of sensors and cooler flush

Warranty:

Parts

36-Months
150,000 Miles

Labor

12-Months
24,000 miles

Note:

No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air Tranmission cooler outlet.

Features:

• Increase the durability of your drivetrain
• Stock thrust bushings replaced with roller Torrington bearings
• Every Tranmission is tested on a dyno
• Upgraded Valvebody
• Increased line pressure to 190-200psi
• No shuttle shifting problems
• Drilled Intermediate shaft for increased lubrication
• Modified manual valve for lube in all positions
• Billet band strut
• Billet band lever
• Billet Input Shaft to take the snap from rapid throttle and high horsepower
• Billet Big fine spline input shaft
• Clutch Count: OD 6
• Clutch Count: OD Direct 10
• Clutch Count: Forward 5
• Clutch Count: Direct 6
• High temp/energy Raybestos band
• Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
• Upgraded governor solenoid
• Cooler line case saver in every Tranmission

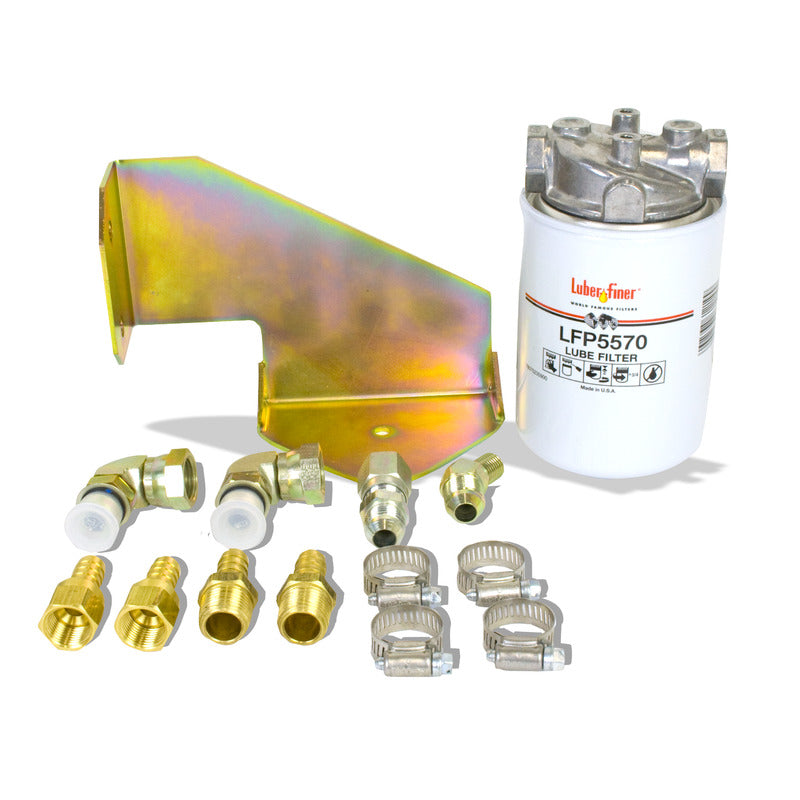

• BD auxiliary full flow filter kit for extra protection
• BD rigid aluminum heavy duty Tranmission pan
• Pan heat-dissipating fins keep temperature down
• Magnetic drain plug
• Pan adds 2qt extra oil capacity
• Not warranted for Race or Sled Pull use

This Part Fits:
