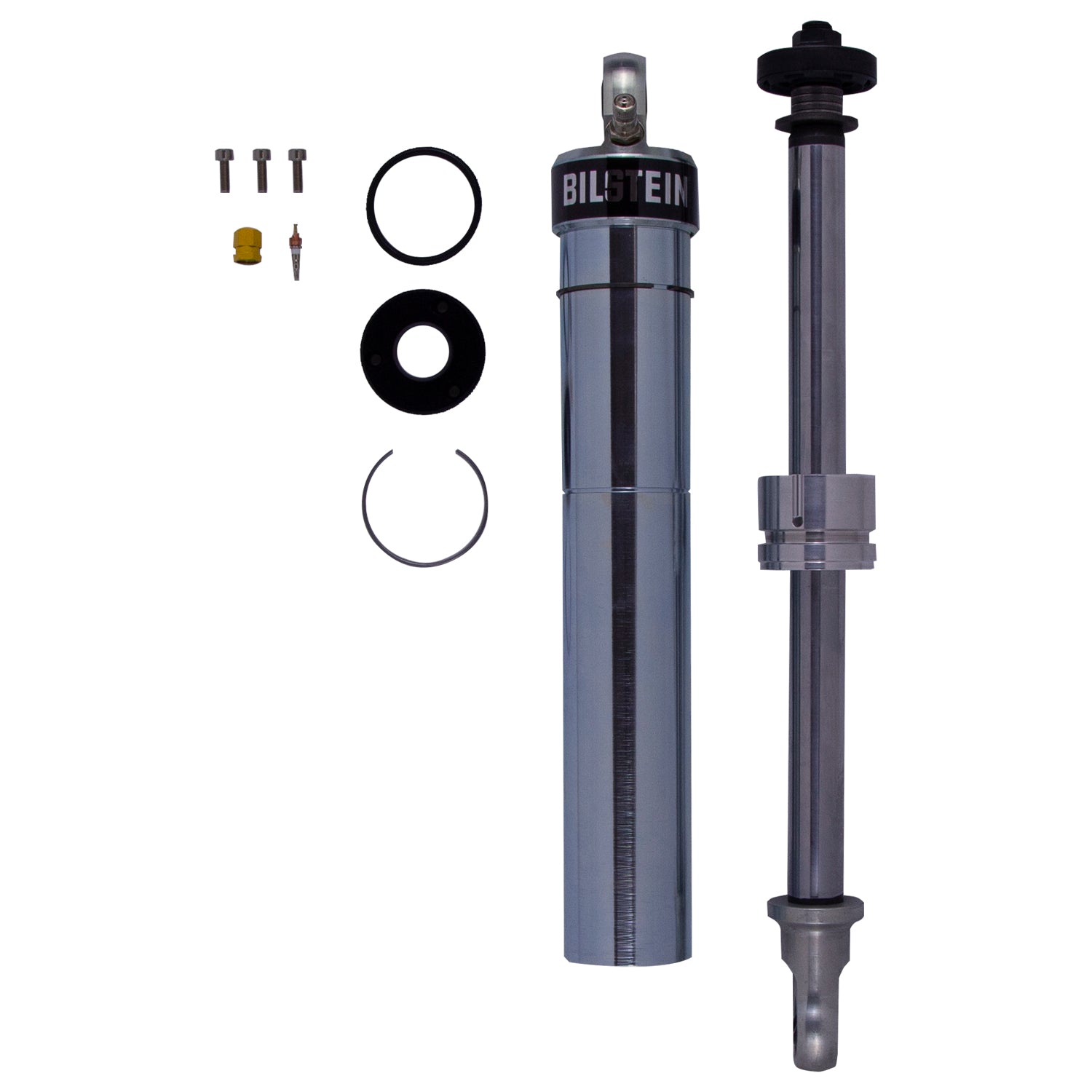

Suspension Shock Absorber EM46-D90N0 9 Inch Digressive non-adj emulsion Monotube EM46 Series Bilstein

Bilstein EM46 Series shock absorbers are emulsion dampers that feature an all-steel smooth body construction and 46mm piston for motorsports applications.

The shock absorbers also include a large 22mm shaft, severe duty 3 stage high temperature rod seal and can convert to coilover usage (kit sold separately).

EM46 Series shock absorbers are ideal for racers looking for a rebuildable shock with the ability to create and fine tune spring rate as a replacement or supplement for suspension springs.

Details:

• Series: EM46 Series
• Internal Design:Monotube
• Lower Mount Type: 1/2in Heim
• Upper Mount Type: 1/2in Heim
• Finish: Zinc Plated
• Adjustable: Non-Adjustable
• Body Design: Smooth Body Screw Top (Non-coilover)
• Collapsed Length Inch: 15.24
• Body Material: Steel
• Extended Length Inch: 25.24
• Boot Included:No
• Pistion Diameter: 46mm
• Pistion Type: Digressive
• Shaft Diameter: 22mm
• Stroke Travel Length In: 10
• Stroke Travel Length In: 254
• Warranty: 90 Day Warranty
