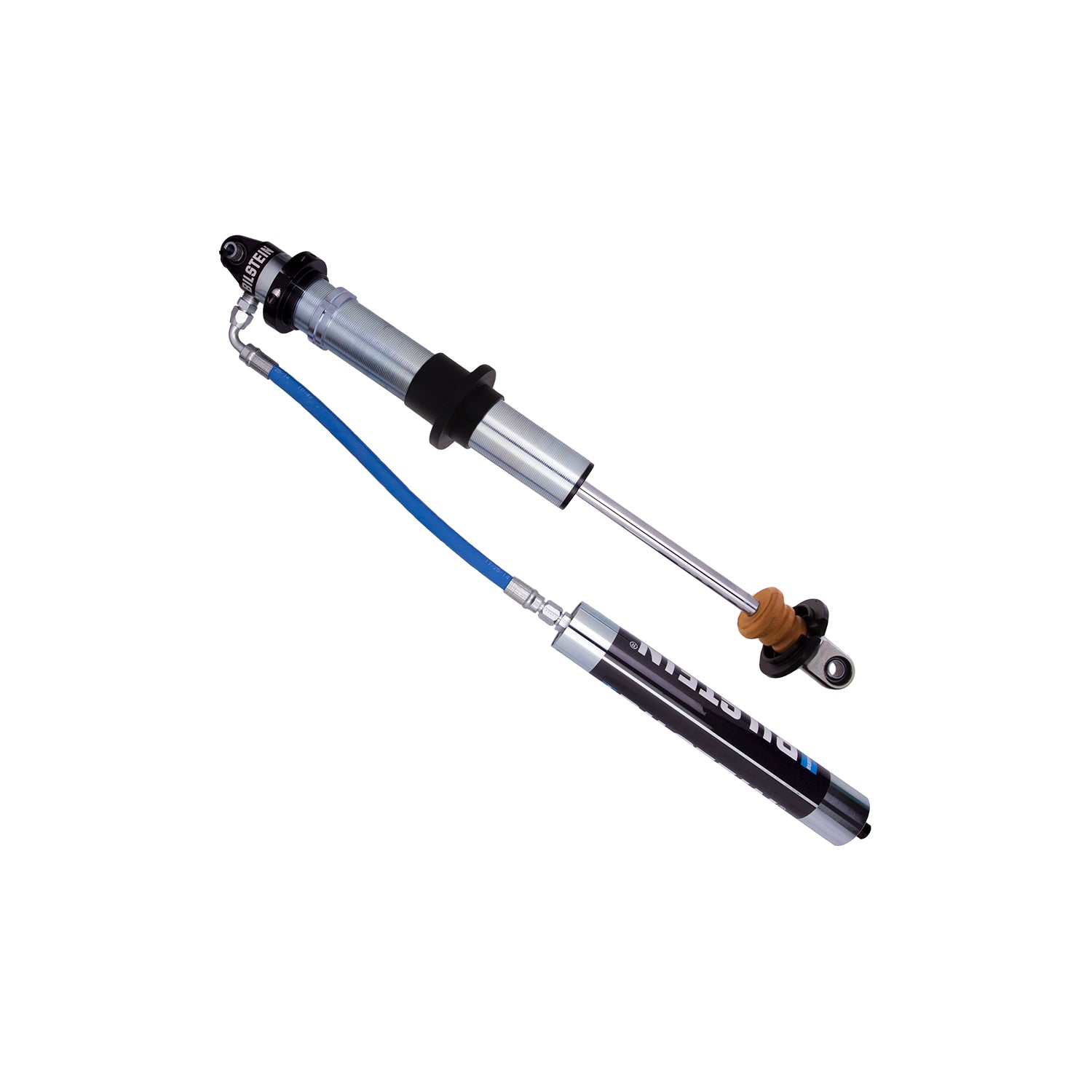

Suspension Shock Absorber 60mm Coilover 12 Inch 255/100 9200 Series Monotube M 9200 (Coilover) Bilstein

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings.

M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs.

• These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable.
• M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

Details:

• Series: M 9200 (Coilover)
• Internal Design:Monotube
• Lower Mount Type: Eye .5x1.5in
• Upper Mount Type: Eye .5x1.5in
• Finish: Zinc Plated
• Body Design: Threaded Body (Coilover)
• Collapsed Length Inch: 21.5
• Compression at 52m s: 1000
• Extended Length Inch: 33.5
• Mount Type: Eye-to-Eye
• Pistion Diameter: 60mm
• Rebound at 52m/s: 2550
• Reservior: Yes
• Shaft Diameter mm: 22
• Stroke Travel Length In: 12
• Stroke Travel Length In: 304.8
• Notes: 60mm Coilover, 12. 0 Inch, 255/100, 9200 Series
• Warranty: 90 Day Warranty
