Steering Upgrade Kit Silverado/Sierra Duramax 1500HD 2001-2003 and 2005-2007 and 2500 HD/3500HD Silverado/Sierra 2001-2010 WITH PITMAN/IDLER BD Diesel1032160

A major common weak point on Chevrolet/GM HD series trucks is the steering linkage and tie rods with high torque engines, lift kits, and larger tires putting greater strains on the steering system than what OEM intended.

These common failures include loose steering, front wheels toe-in under load while in four-wheel drive, and broken tie rods. If you have performance upgrades in your truck, lifted it, or do serious towing, you will want to upgrade your steering kit Before doing catastrophic damage to your truck!

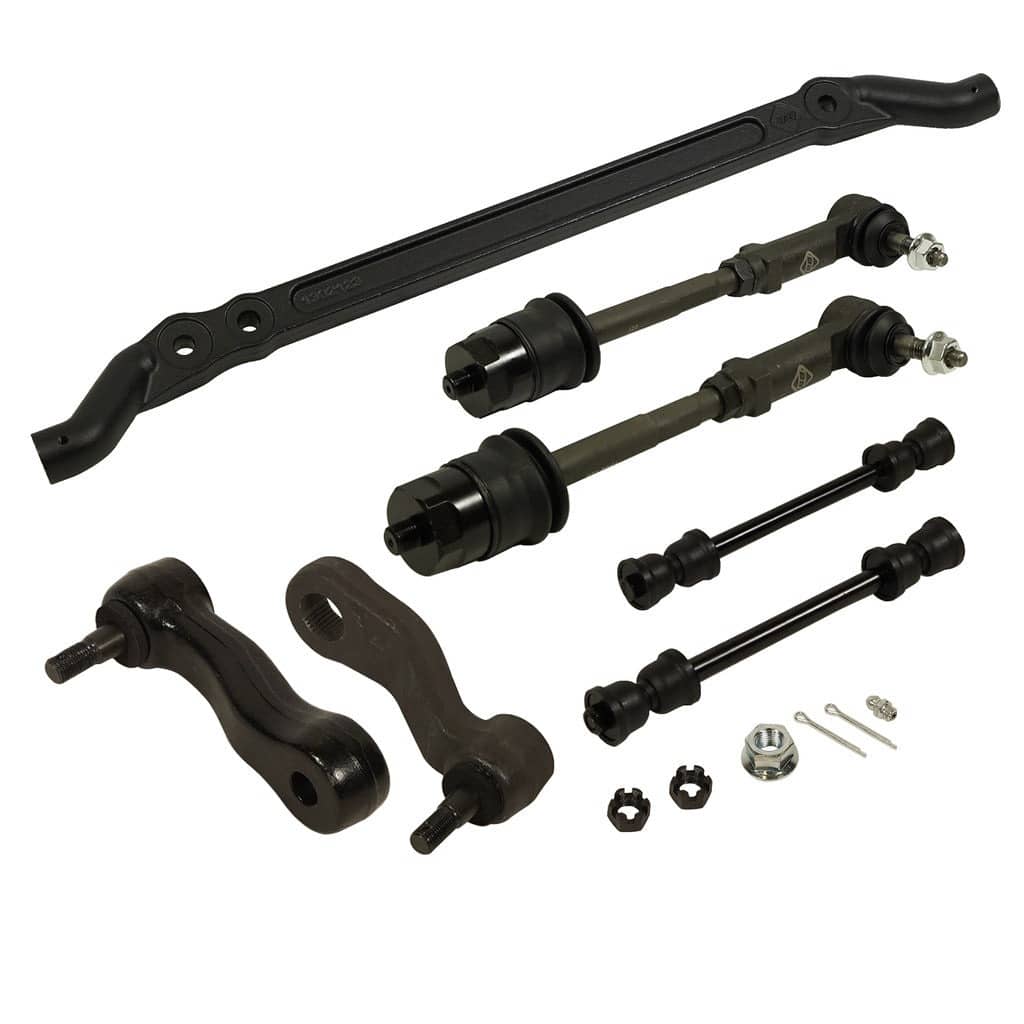

This kit includes centerlink, tie-rods (2), sway bar end links (2), pitman arm (3-spline), and idler arm. The forged I-Beam Centerlink is 30 percent stronger than OEM which reduces flex in the steering system and creates a strong base for the tie rods to be attached to. The tie rods are 1.5x thicker than OEM for reduced flex and have larger inner ball joints for reduced wear.

Testing has shown that BD tie rods can take over double the amount of force than what OEM rods can handle. Ball joints come with sintered bearings and allow for better load holding and increased life. Longer, high-strength through bolt-designed sway bar end links are included to accommodate larger tie rods and leveling kits.

Polyurethane bushings have OEM-style shaping for articulation and durability. Ball joints, pitman, and idler arm are all greaseable. The entire kit retains factory geometry for accurate steering and will allow for any OEM replacement parts to drop in without any geometry sacrifice or modification required.

Other upgrade kit designs change the geometry of the steering which can sacrifice safety and drivability for straight-line strength while pulling or racing. This can also create a dangerous bump steer where the vehicle becomes uncontrollable on uneven roads. By not altering the steering geometry, the BD upgrade kit saves you from this problem.

The total package is an economic upgrade for worn-out steering and will increase the durability, longevity, and dependability of your truck while saving money by preventing catastrophic repairs.

Install Time:

• 3 Hours

Warranty:

Parts

• 12-Months

Note:
Limited Lifetime Warranty available with registration

Emissions:

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)

Features:

• Forged I-Beam Centerlink 30 percent stronger than OEM for less deflection
• Forged Centerlink retains factory geometry for accurate steering

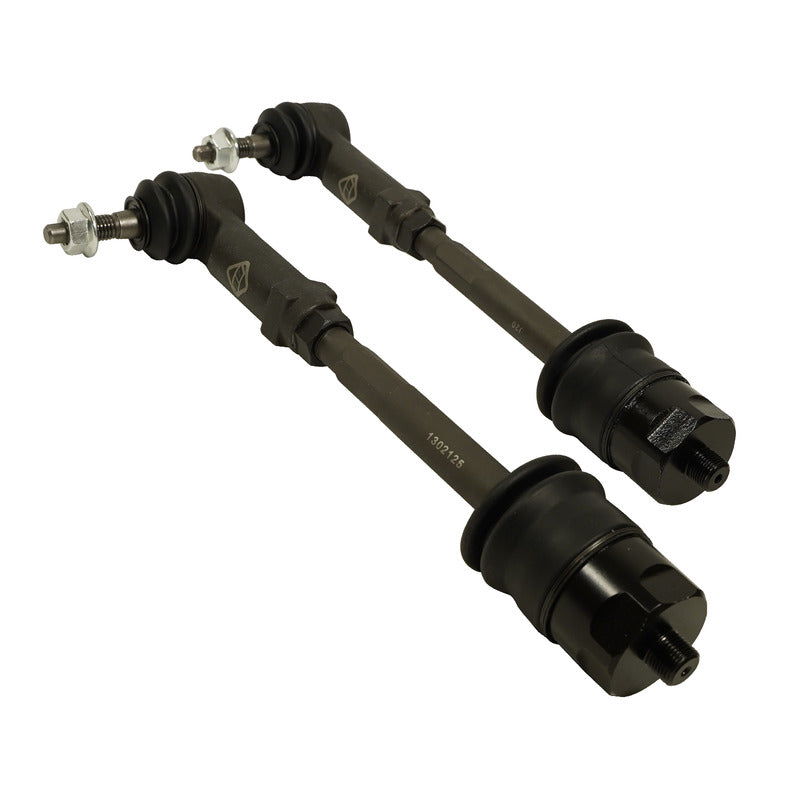

• Tie rods 1.5x larger than OEM
• Larger Greaseable Ball Joints for long service life

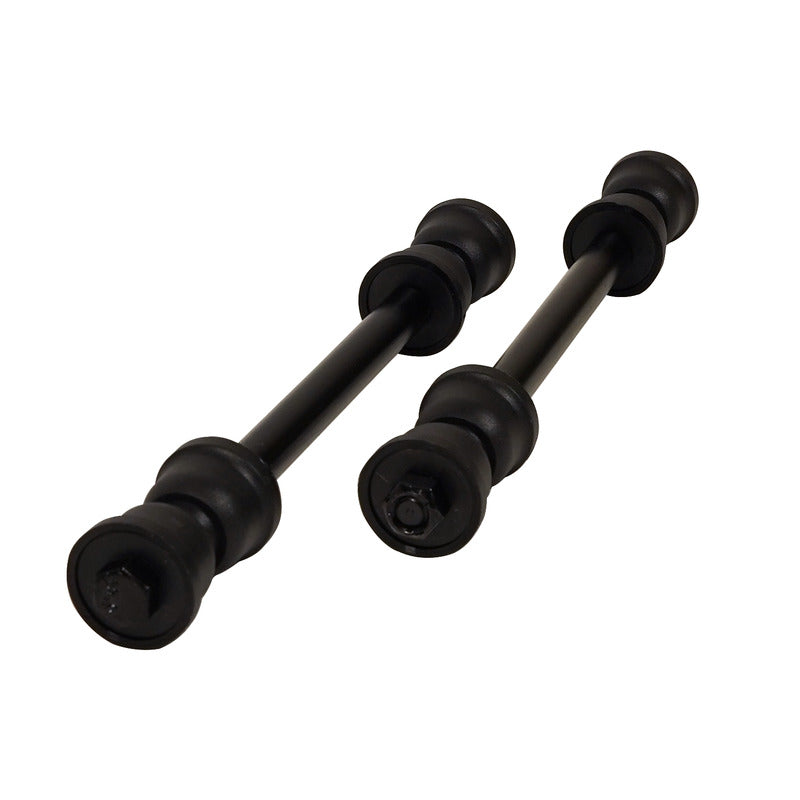

• Sway bar end links 1-inch longer than factory to accommodate leveling kits
• Durable polyurethane sway bar end link bushings shaped for articulation and durability 1-inch longer
• Sway bar end links prevent damage to Tie Rod Seals/Boots

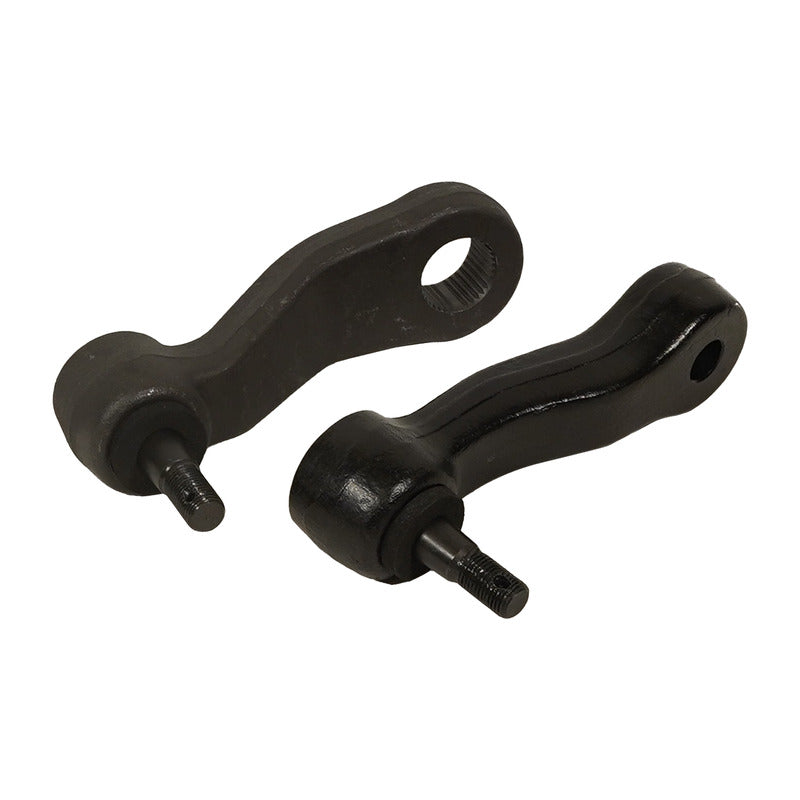

• Greaseable pitman arm and idler arm Compatible with OEM components
