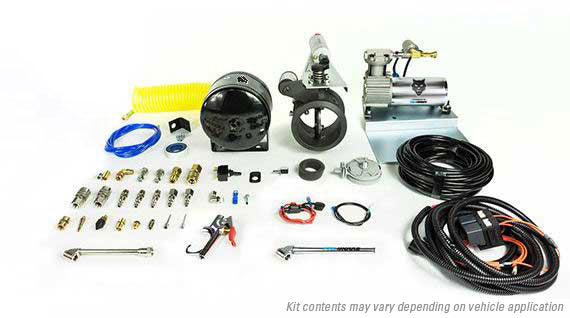

PRXB Exhaust Brake Kit – C44047 – InLine Mount 5 Inch Exhaust (Air Actuated)

PRXB Exhaust Brake Kit – C44047 – InLine Mount 5 Inch Exhaust (Air Actuated)

$1,658.10 CAD
$1,658.10 CAD
Sale Sold out
Shipping calculated at checkout.
  • If there is an applicable core charge, it will be included in this price and will be avail for a refund when approved after cores are returned and inspected. core charges can apply to injectors, turbos, injection pumps and possibly a few other parts. please contact if you have any questions.

Product Description

  • PRXB gives you the best holdback in the 1400-1800 RPM range.

  • The spring controlled pressure regulated mechanism on the exhaust brakes protects against engine overpressure.

  • When the brake is deactivated, exhaust flow is unrestricted and won't interfere with power output.

  • Patented 90 degree Non-contacting Butterfly Valve is specially engineered to maximize backpressure while preventing seizing.

  • The brakes use industry exclusive Arcor nitride coating on housing and components.

Optional Parts:

  • Switch: Optional  Part Number C18042 for Dodge RAM 2003-2007 Cummins 5.9L ISB 24 Valve Engine with Standard Transmission.
  • Switch: N/A for Dodge 2006-2007 Cummins 5.9L ISB 24 Valve Engine with 48RFE Automatic Transmission.
  • ECM Bypass: Optional Part Number C14037 for Dodge RAM 2003-2004 Cummins 5.9L ISB 24 Valve Engine with Standard Transmission.
  • ECM Bypass: Optional Part Number C20135 for Dodge RAM 2004.5 Cummins 5.9L ISB 24 Valve Engine with Standard Transmission.
  • ECM Bypass: Optional Part Number C20141 for Dodge RAM 2005 Cummins 5.9L ISB 24 Valve Engine with Standard Transmission.
  • ECM Bypass: N/A for Dodge RAM 2006-2007 Cummins 5.9L ISB 24 Valve Engine with Standard Transmission.
  • Transmission Controller: N/A for Dodge RAM 2006-2007 Cummins 5.9L ISB 24 Valve Engine with 48RFE Automatic Transmission

 * NOTE:  All 1994-2002 trucks using a DirectMount kit that have 4" aftermarket exhaust systems require an additional adapter – C11342
 ** NOTE:  For vehicle’s in which the factory HX / HY35 turbo charger has been changed to an aftermarket turbo charger, use only an inline kit.
     A mounting group must also be purchased with the kit. Exhaust Size: 4" – C11400, 3.5" – C11420, 3" – C11440

 NOTE:  All above DirectMount 2003-2007 kits will NOT work with Banks Turbo Back Monster® Exhaust. However, they will work with Banks Cat Back Monster® Exhaust.
Applications for aftermarket turbo chargers, please contact PS&M Diesel for further kit information: 1-403-356-0225
