Internal Oil Cooler Delete Kit GM Duramax 01-10

Internal Oil Cooler Delete Kit GM Duramax 01-10

$413.99 CAD
$0.00 CAD $413.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • If there is an applicable core charge, it will be included in this price and will be avail for a refund when approved after cores are returned and inspected. core charges can apply to injectors, turbos, injection pumps and possibly a few other parts. please contact if you have any questions.

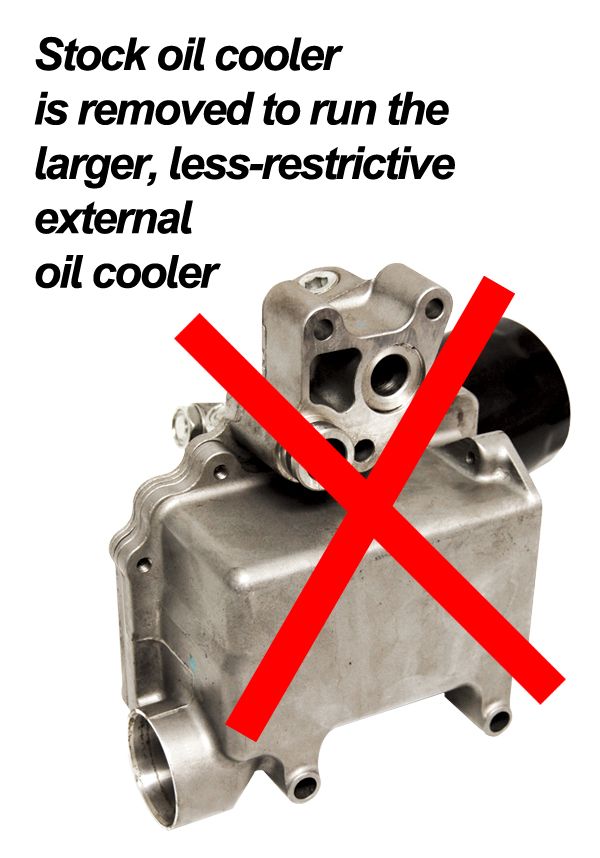

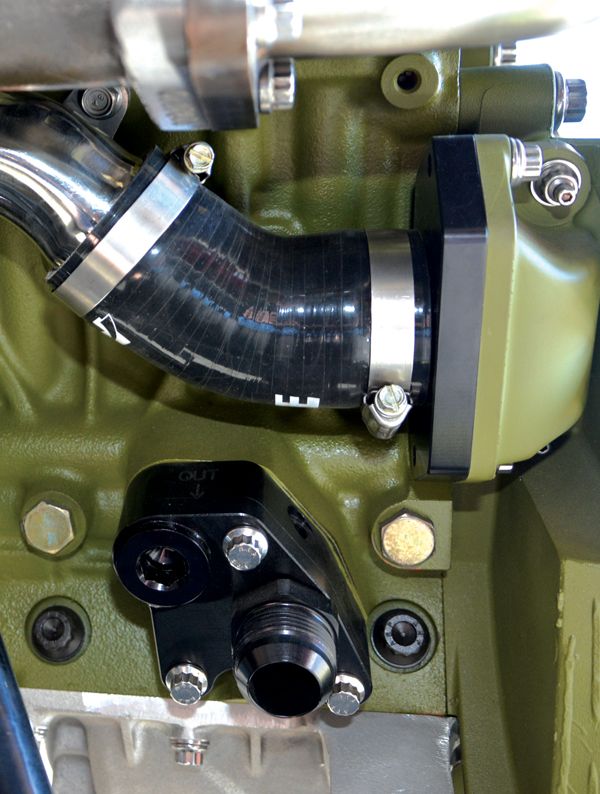

Designed for high performance Duramax engines that require remote oil cooler and filtration solutions. Popular for hot rod, marine and race applications that require larger less restrictive cooler/filter systems. Compact design adds additional clearance for tight engine frames.
Features:

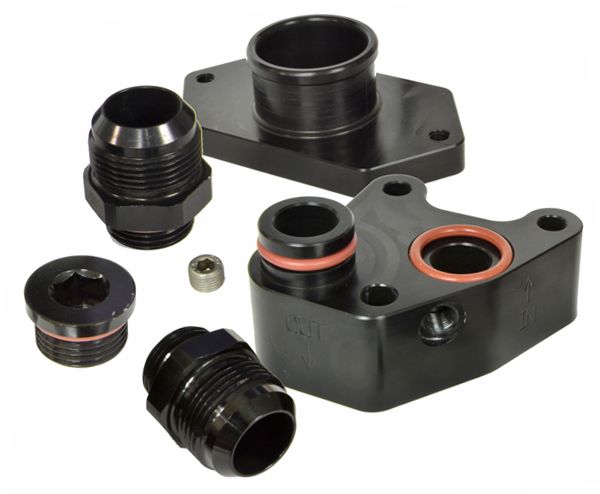

  • Internal Oil Cooler Delete Kit

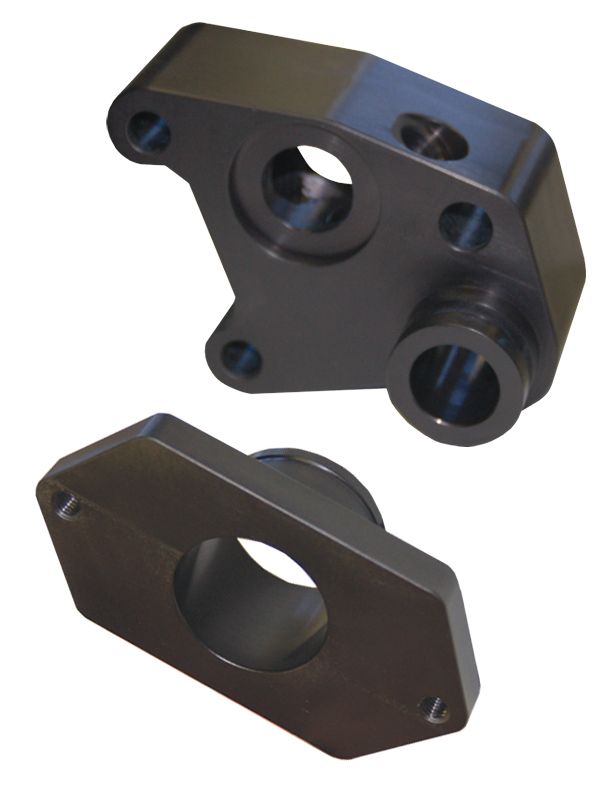

  • Machined from billet aluminum with hard-anodized black finish
  • Uses existing factory oil-cooler mounting bolts
  • -12AN ORB port, -16AN (1 inch) oil inlet/outlets
  • 1/8 inch NPT oil temp sender port (measures oil temp entering block)
  • Includes Engine Coolant Bypass Adapter
  • Sold As A Kit

Applications:

  • 2001-2010 GM 6.6L Duramax engines

Note:

  • Use with Coolant Tube Kit (114001050)and Remote Filter Mount (114002000)
  • Recommended to use with -16AN (1 inch) hose for maximum flow
