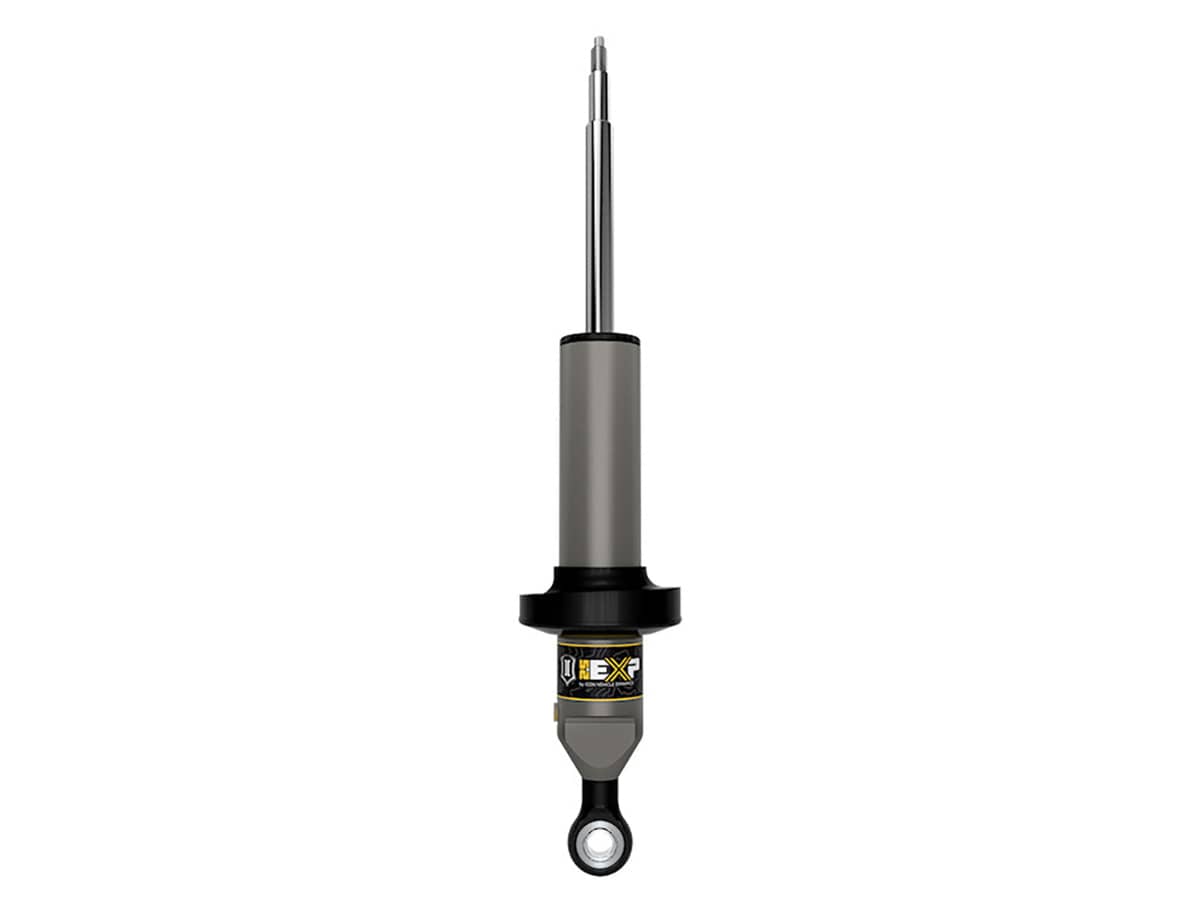

FRONT 2.5 EXP COILOVER | 22-25 TUNDRA / 23-25 SEQUOIA
FRONT 2.5 EXP COILOVER | 22-25 TUNDRA / 23-25 SEQUOIA
Couldn't load pickup availability
- If there is an applicable core charge, it will be included in this price and will be avail for a refund when approved after cores are returned and inspected. core charges can apply to injectors, turbos, injection pumps and possibly a few other parts. please contact if you have any questions.
- Fully rebuildable and re-tunable
- Vehicle specific tuned for superior shock damping and control
- 2.5 Aluminum Series Shock with Internal Reservoir
- Adjustable ride heights from 0-3” of front lift over stock with the use of snap ring
- Utilizes factory coil and coil hardware
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
- Impact extruded, hard anodized aluminum cylinder offers excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearing for extended longevity and minimal deflection
Important Note: Advertised lift height ranges are for a stock equipped vehicle. Not compatible with TRD Pro Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install EXP Coilovers are sold individually. A quantity of 2 are required per vehicle. ICON does not recommend lifting above 2.25" without an ICON upper control arm. Failure to do so can result in improper wheel alignment and cause damage to front axles on 4WD model For 4WD models without TRD Off-Road Package ICON recommends using ICON Diff Drop (ICT-55156) or using Toyota TRD axles Failure to do so could result in front axle damage. Not required for TRD Pro. If equipped with TRD aluminum skid plate part ICT-55164 is also required Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Sequoia.
