Flowtech Rams Horn Exhaust Manifolds - Black Paint - 11704FLT

Flowtech exhaust manifolds are the perfect combination of quality and value. These Rams horn exhaust manifolds fit all popular hot rods with the popular small block Chevy engines.

Specifications:

Bolt size	3/8-16 x 3/4
Brand	Flowtech Exhaust
CARB (California) Compliant	No
Category	Exhaust
Collector Diameter	2.25
Design	Ram Horn
Emission Code	3
Engine	Chevrolet Small Block Gen I
200	Painted
3390	Performance
Hardware Included	Yes
Header Finish	Black Paint
Header Style	Ram Horn
10	Steel
Pack Qty	Pair
Primary Tube Dia.	1-5/8 inch
Primary Tubing Diameter	1-5/8
Primary Tubing Diameter	1.625
Product Type	Manifold
Tube Diameter	1.625"
Warning	California Proposition 65
Bolt size	3/8-16 x 3/4
Brand	Flowtech Exhaust
CARB (California) Compliant	No
Category	Exhaust
Collector Diameter	2.25
Design	Ram Horn
Emission Code	3
Engine	Chevrolet Small Block Gen I
200	Painted
3390	Performance
Hardware Included	Yes
Header Finish	Black Paint
Header Style	Ram Horn
10	Steel
Pack Qty	Pair
Primary Tube Dia.	1-5/8 inch
Primary Tubing Diameter	1-5/8
Primary Tubing Diameter	1.625
Product Type	Manifold
Tube Diameter	1.625"
Warning	California Proposition 65
Description_INV	OBS SMALLBLOCK CHEVY RAM HORN MANIFOLD -
Description_ASC	Manifold to head bolts not included.Header Dimensions: Width of Header at widest point from exhaust flange- 3.823" Height of Header from highest to lowest point - 7.13" Length of Header from leading edge to trailing edge - 18.623" Cylinder Head surface to outside point - 3.52" Bolt center to top of manifold - 3.51" Manifold bolt center to bottom of collector - 5.50" Collector mounting bolt circle center to center - 3.031"
Description_DES	Flowtech Rams Horn Exhaust Manifolds - Black Paint
Description_EXT	Small Block Chevy Rams Horn Exhaust Manifolds; 1-5/8" primary diameter; 2-1/4" Collector; Black Paint
Description_MKT	Flowtech exhaust manifolds are the perfect combination of quality and value. These Rams horn exhaust manifolds fit all popular hot rods with the popular small block Chevy engines.
Description_FAB	Tight fit block hugger design for popular hot rods powered by the popular small block Chevy motors
Description_FAB	Cast iron construction styled in the vintage “Rams Horn” design for maximum engine clearance and maximum strength
Description_FAB	Smooth transition, 1-5/8” diameter primaries are used for increased exhaust flow increasing performance and improving throttle response
Description_FAB	3/8” thick 2-1/4” collector for maximum strength
Description_FAB	Thick manifold flange pads for a leak-free seal and maximum strength
Description_FAB	Premium aluminum manifold gaskets and collector hardware is included
Description_FAB	Coated in high heat resistant black paint for a classic look

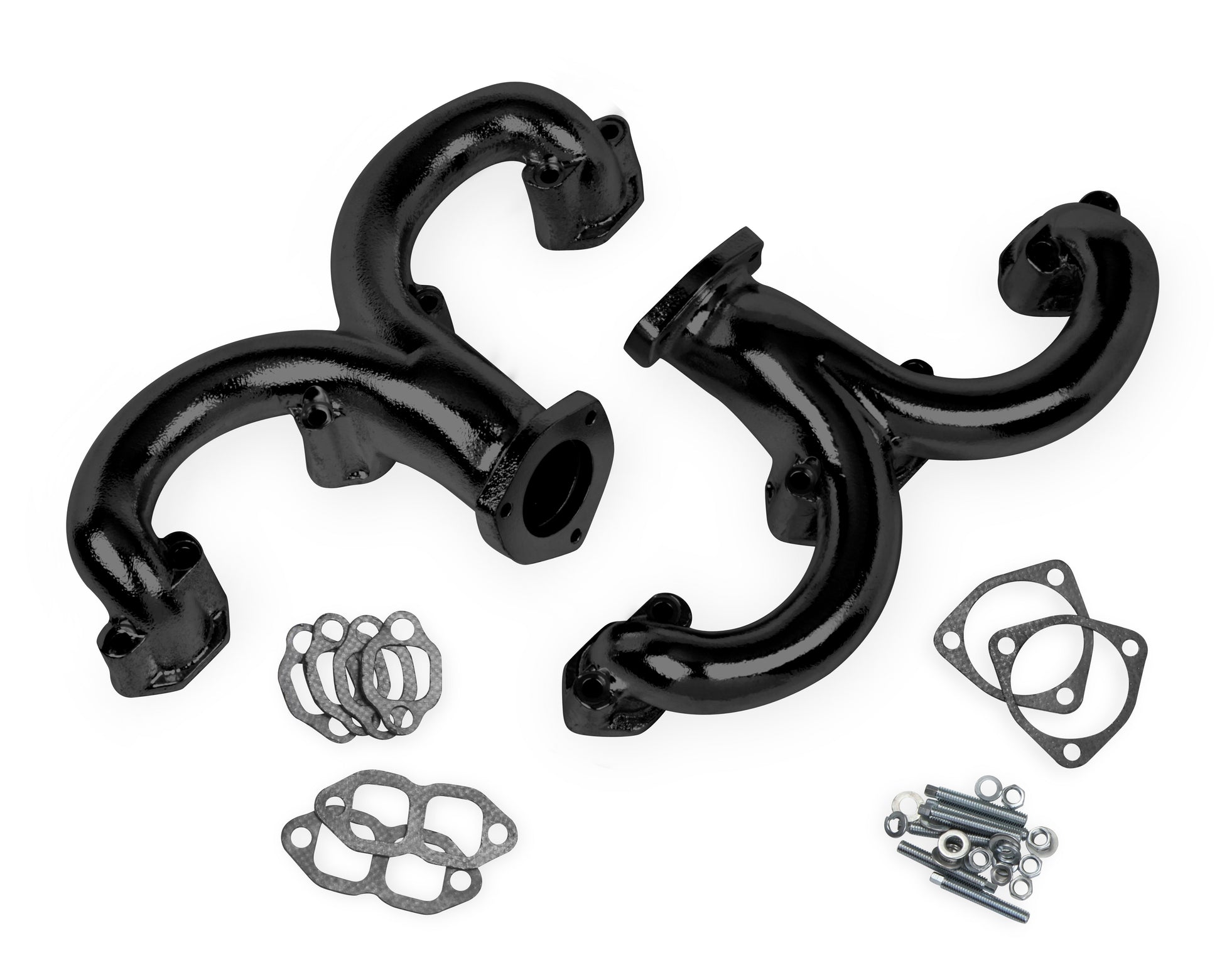

Description_FAB	Sold as a pair
Description_INV	OBS SMALLBLOCK CHEVY RAM HORN MANIFOLD -
Description_ASC	Manifold to head bolts not included.Header Dimensions: Width of Header at widest point from exhaust flange- 3.823" Height of Header from highest to lowest point - 7.13" Length of Header from leading edge to trailing edge - 18.623" Cylinder Head surface to outside point - 3.52" Bolt center to top of manifold - 3.51" Manifold bolt center to bottom of collector - 5.50" Collector mounting bolt circle center to center - 3.031"
Description_DES	Flowtech Rams Horn Exhaust Manifolds - Black Paint
Description_EXT	Small Block Chevy Rams Horn Exhaust Manifolds; 1-5/8" primary diameter; 2-1/4" Collector; Black Paint
Description_MKT	Flowtech exhaust manifolds are the perfect combination of quality and value. These Rams horn exhaust manifolds fit all popular hot rods with the popular small block Chevy engines.
Description_FAB	Tight fit block hugger design for popular hot rods powered by the popular small block Chevy motors
Description_FAB	Cast iron construction styled in the vintage “Rams Horn” design for maximum engine clearance and maximum strength
Description_FAB	Smooth transition, 1-5/8” diameter primaries are used for increased exhaust flow increasing performance and improving throttle response
Description_FAB	3/8” thick 2-1/4” collector for maximum strength
Description_FAB	Thick manifold flange pads for a leak-free seal and maximum strength
Description_FAB	Premium aluminum manifold gaskets and collector hardware is included
Description_FAB	Coated in high heat resistant black paint for a classic look
Description_FAB	Sold as a pair
