Fits Audi A4 17-20, A4 Quattro 17-24, A5 Sportback 18-24 - IC100022

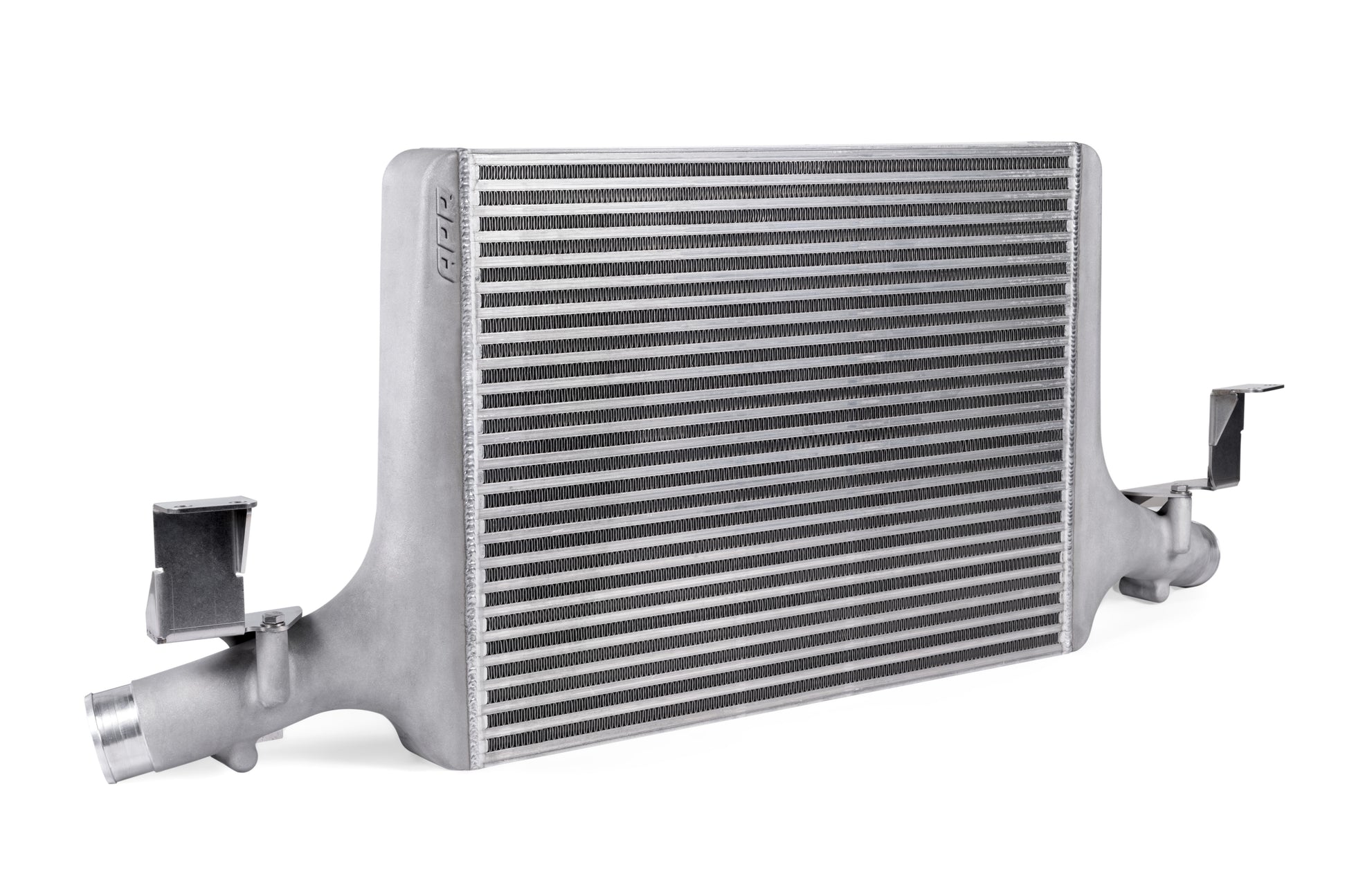

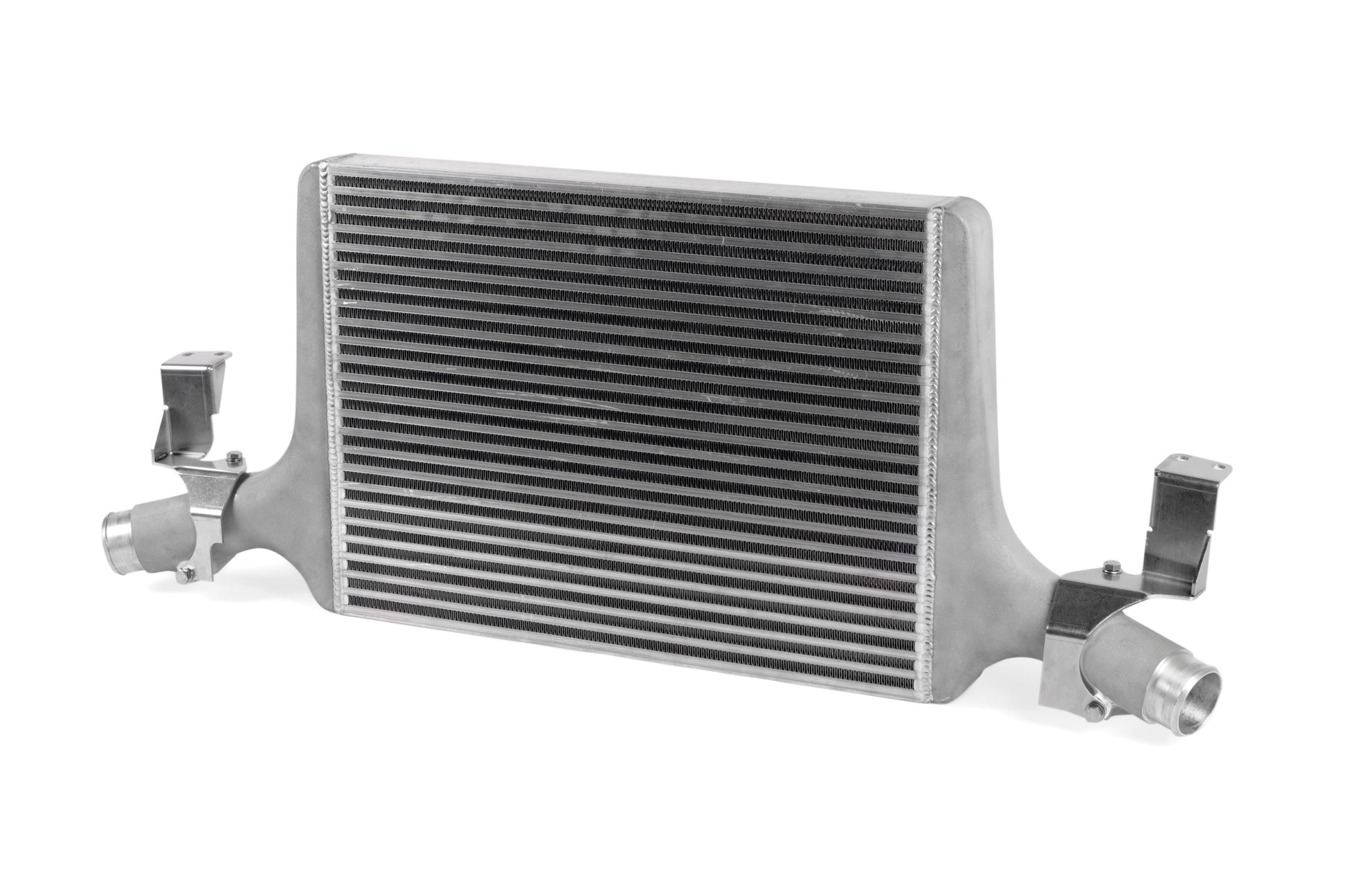

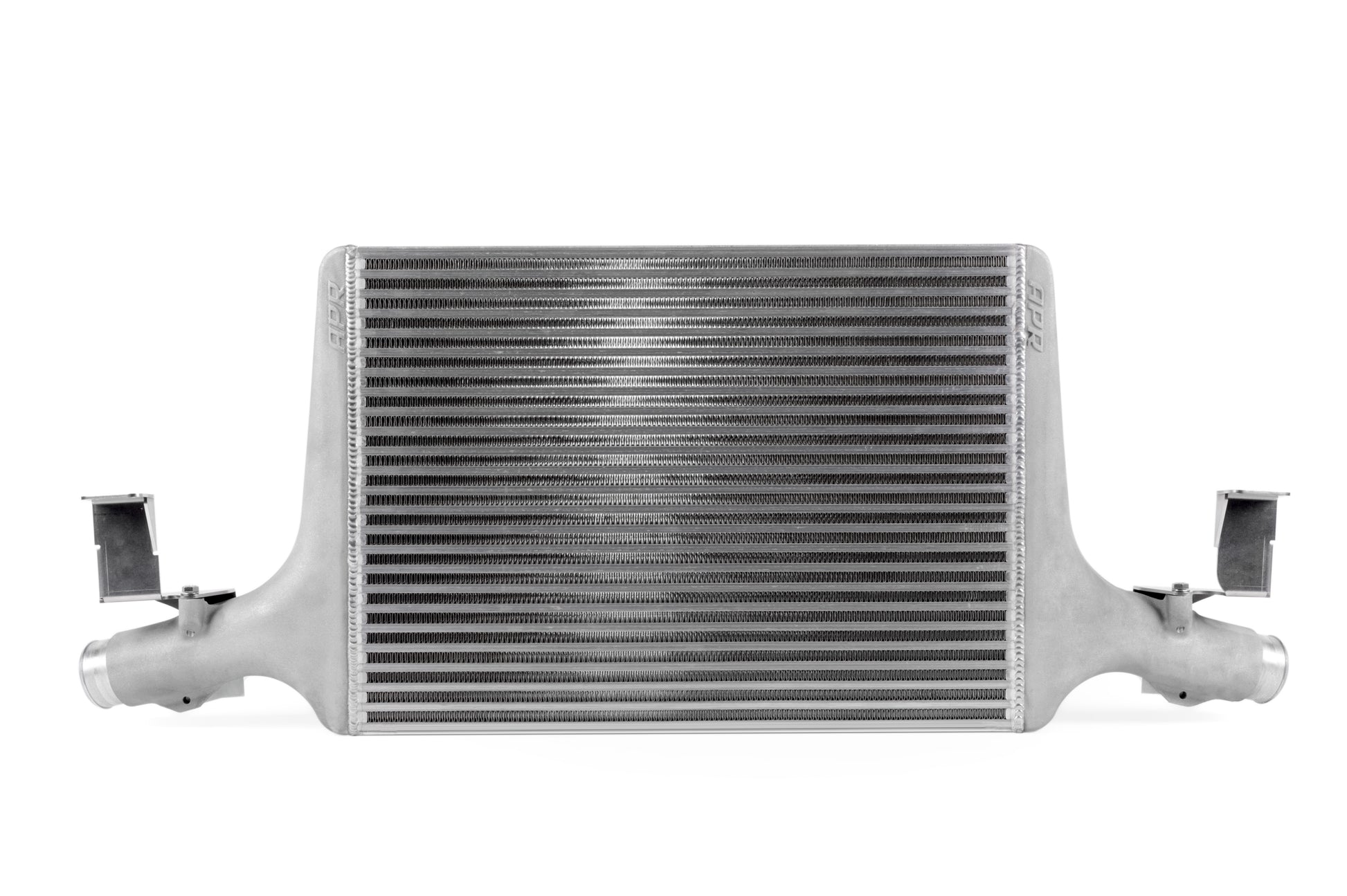

The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.

This Part Fits:

Year	Make	Model	Submodel	Notes
2017	Audi	A4
2018	Audi	A4
2019	Audi	A4
2020	Audi	A4
2017	Audi	A4 Quattro
2018	Audi	A4 Quattro
2019	Audi	A4 Quattro
2020	Audi	A4 Quattro
2018	Audi	A5 Quattro
2019	Audi	A5 Quattro
2020	Audi	A5 Quattro
2018	Audi	A5 Sportback
2019	Audi	A5 Sportback
2020	Audi	A5 Sportback

Specifications:

Brand	APR
Category	Belts and Cooling
17	Silver / Natural
Cooler Type	Air to Air
Core Frontal Area	357.50
267	16.25
Core Type	Bar and Plate
Core Volume	804.38
Core Width	2.25, 22
Direct Fit	Yes
Emission Code	7
End Tank Construction	Cast
End Tank Material	356-F Aluminum
Hose Clamp Type	T-Bolt
Hose Type	Silicon
Product Type	Intercooler Systems
Sub Category	Radiators, Coolers and Related Components
Version	B9 2.0T (A4/A5)
Warning	California Proposition 65
Welding Type	TIG
Description_SHO	Intercooler
Description_INV	Intercooler Kit, B9 A4
Description_ASC	Please note, this system does not fit ROW vehicles with the shorter crash bar support brackets.
Description_DES	APR Intercooler System - B9 1.8/2.0 TFSI
Description_EXT	Fits Audi A4 17-20, A4 Quattro 17-24, A5 Sportback 18-24
Description_MKT	The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.
Description_FAB	Dramatically lowers intake air temp (IAT)
Description_FAB	Increases HP while minimizing power-robbing heat soak!
Description_FAB	Retained as high as 45 AWHP compared to the factory system!

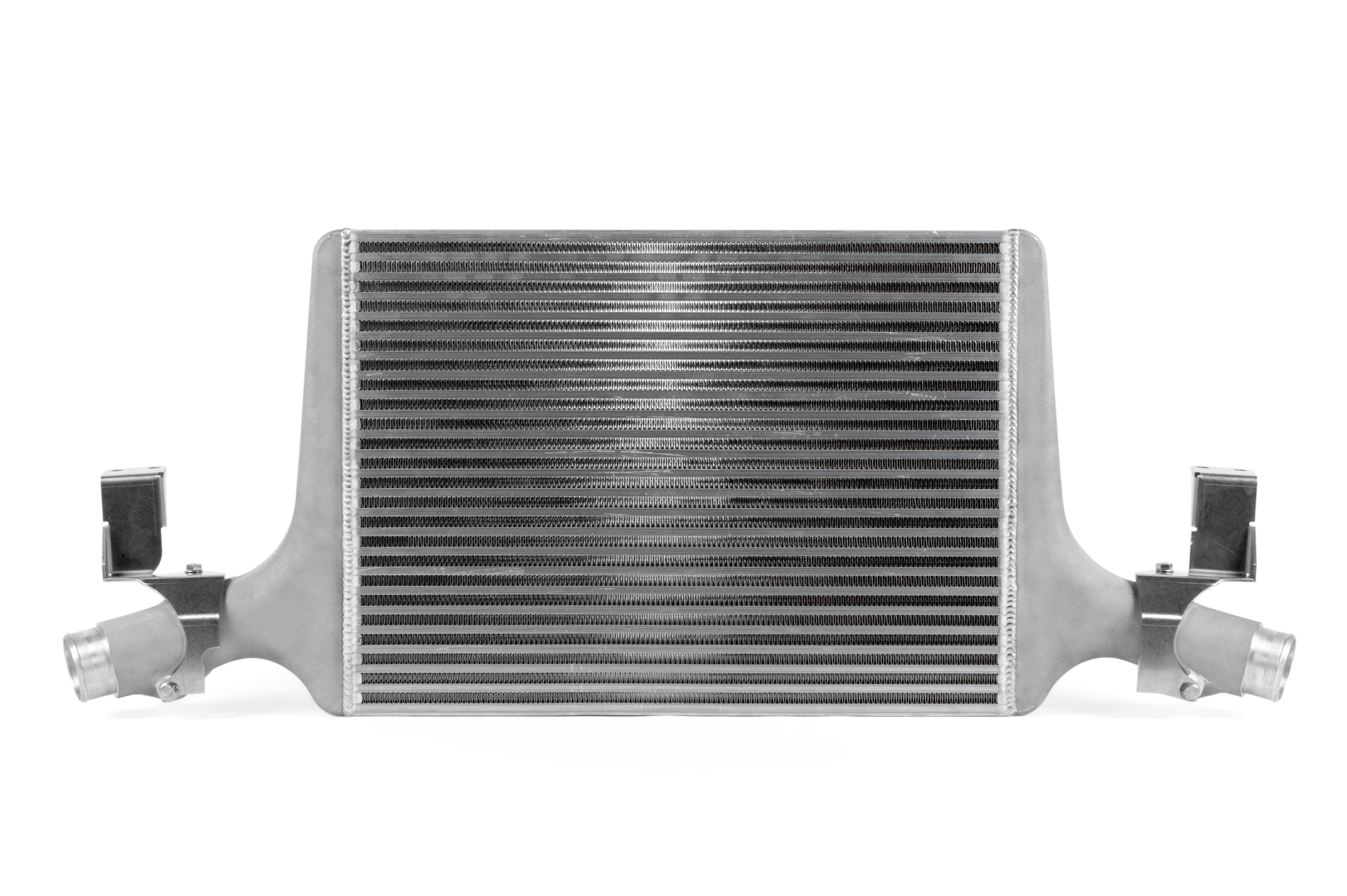

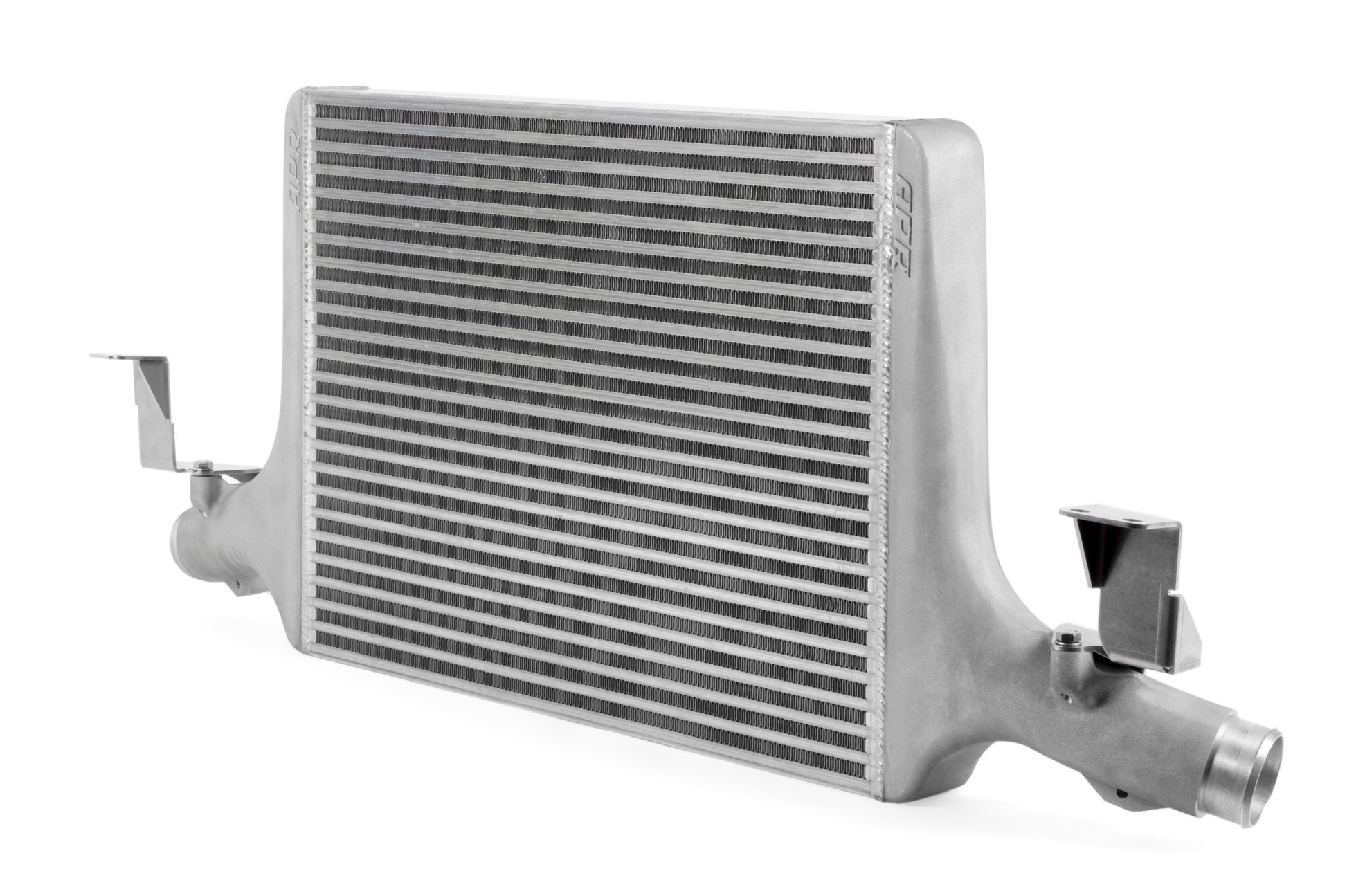

Description_FAB	Massive frontal surface area and core volume
Description_FAB	3.125" x 5.75" x 28.25" - 162.4 in² front. & 507.62 in³ volume - OEM
Description_FAB	2.250" x 16.2" x 22.00" - 356.4 in² front. & 801.90 in³ volume - APR

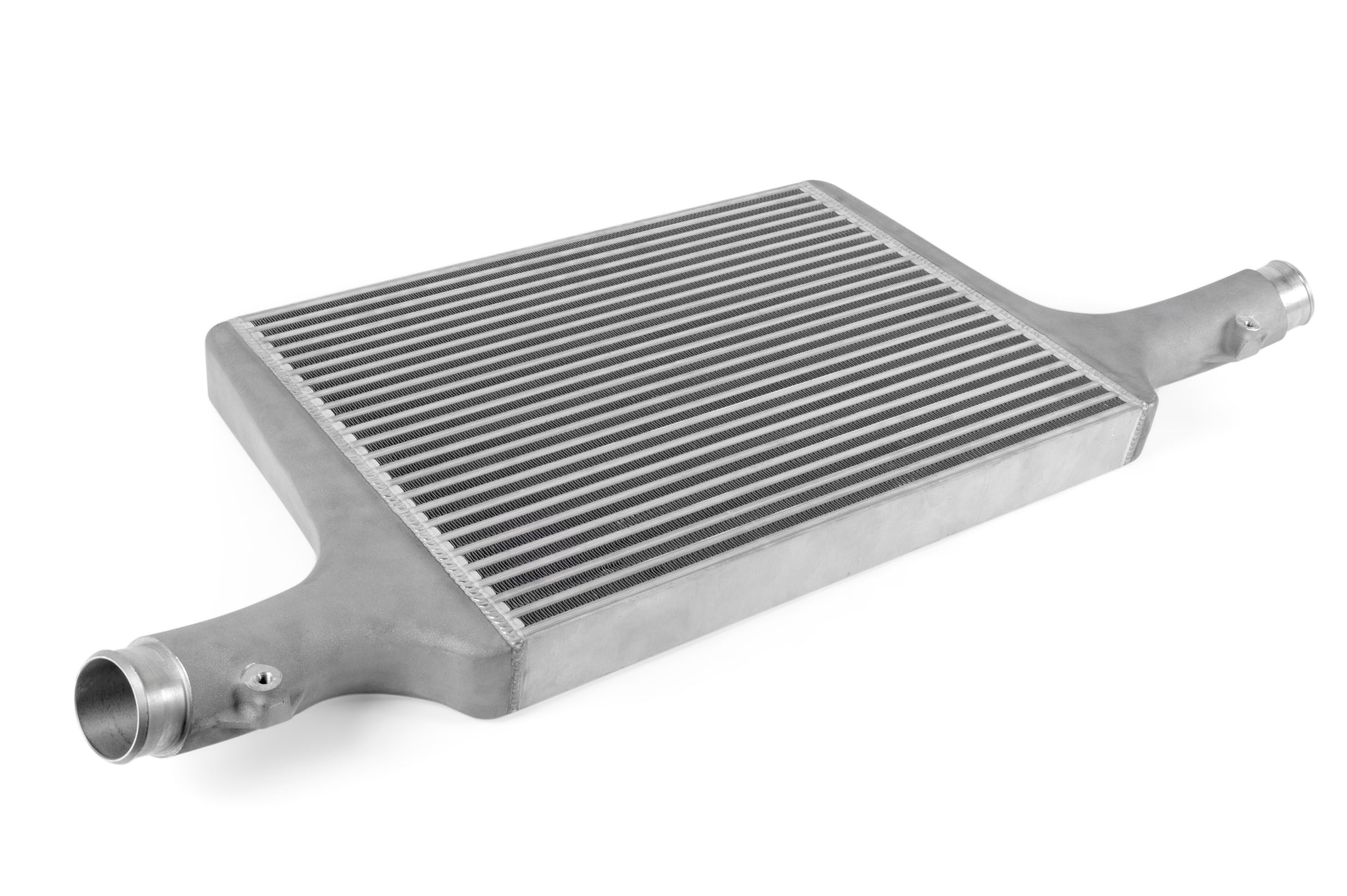

Description_FAB	Highly effective core design
Description_FAB	Bar-and-plate core with staggered and louvered fins.
Description_FAB	Rigorous testing determined core style, fin density, and size.
Description_FAB	Low pressure drop + highly effective cooling = high performance!

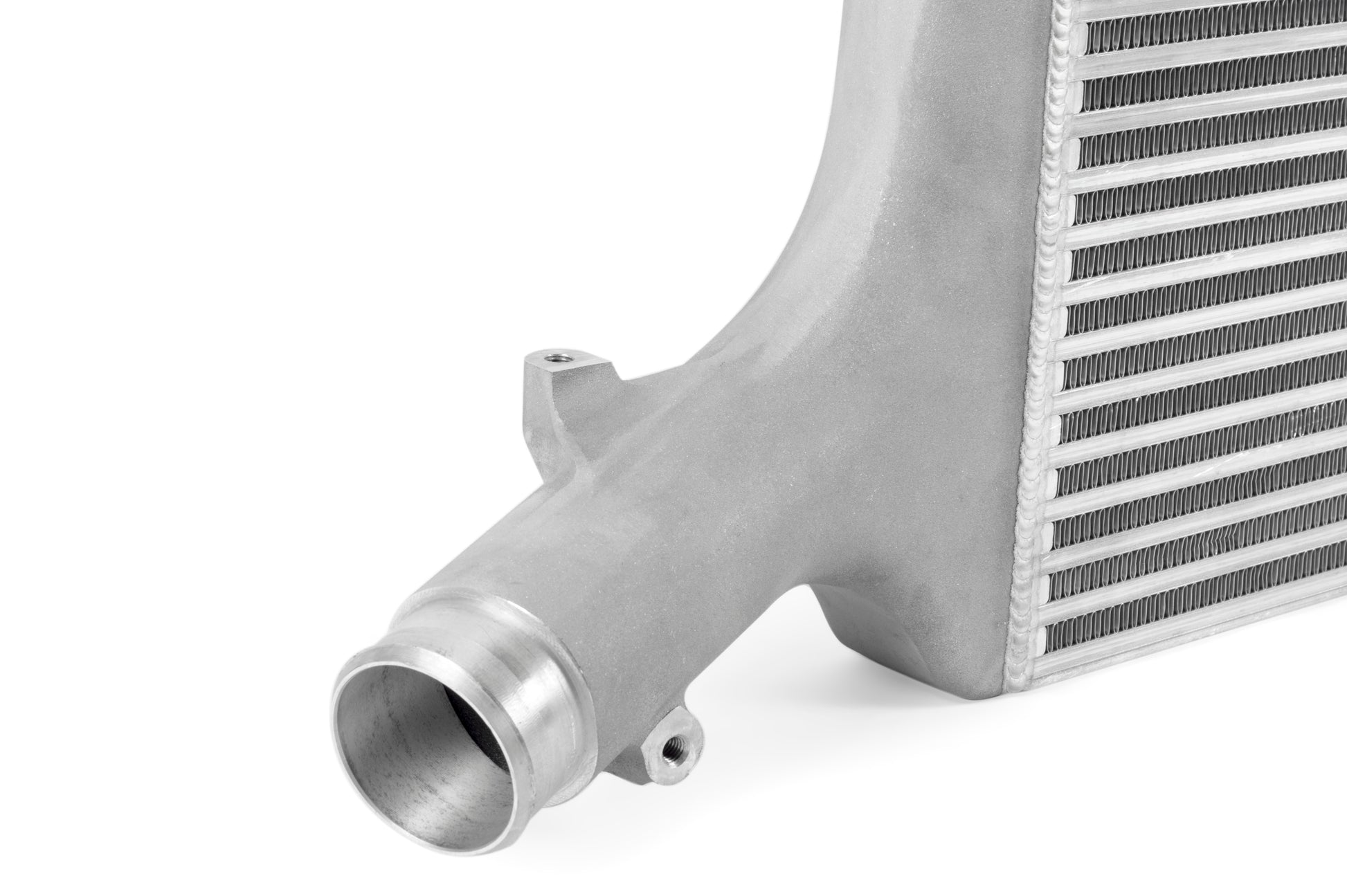

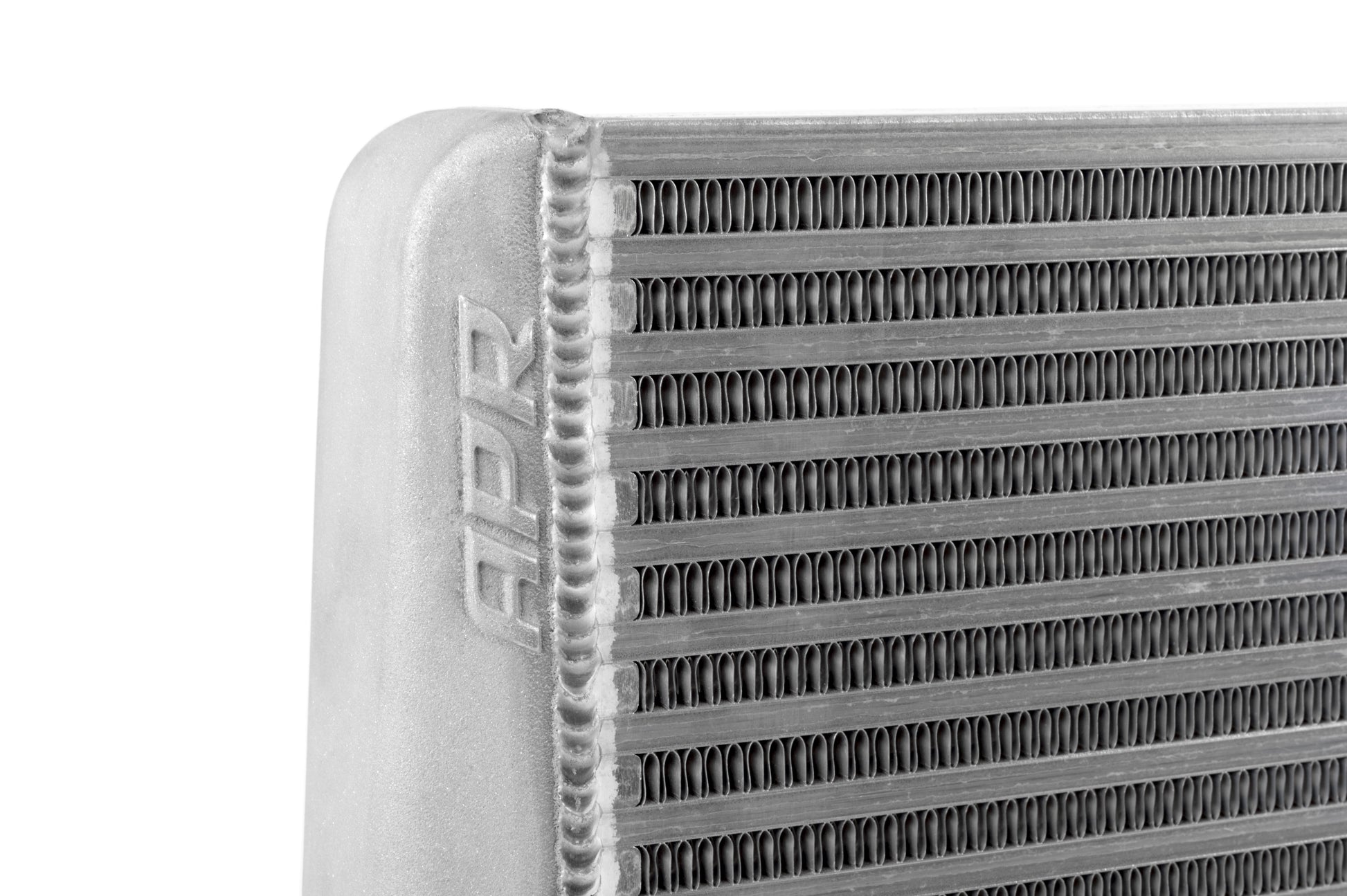

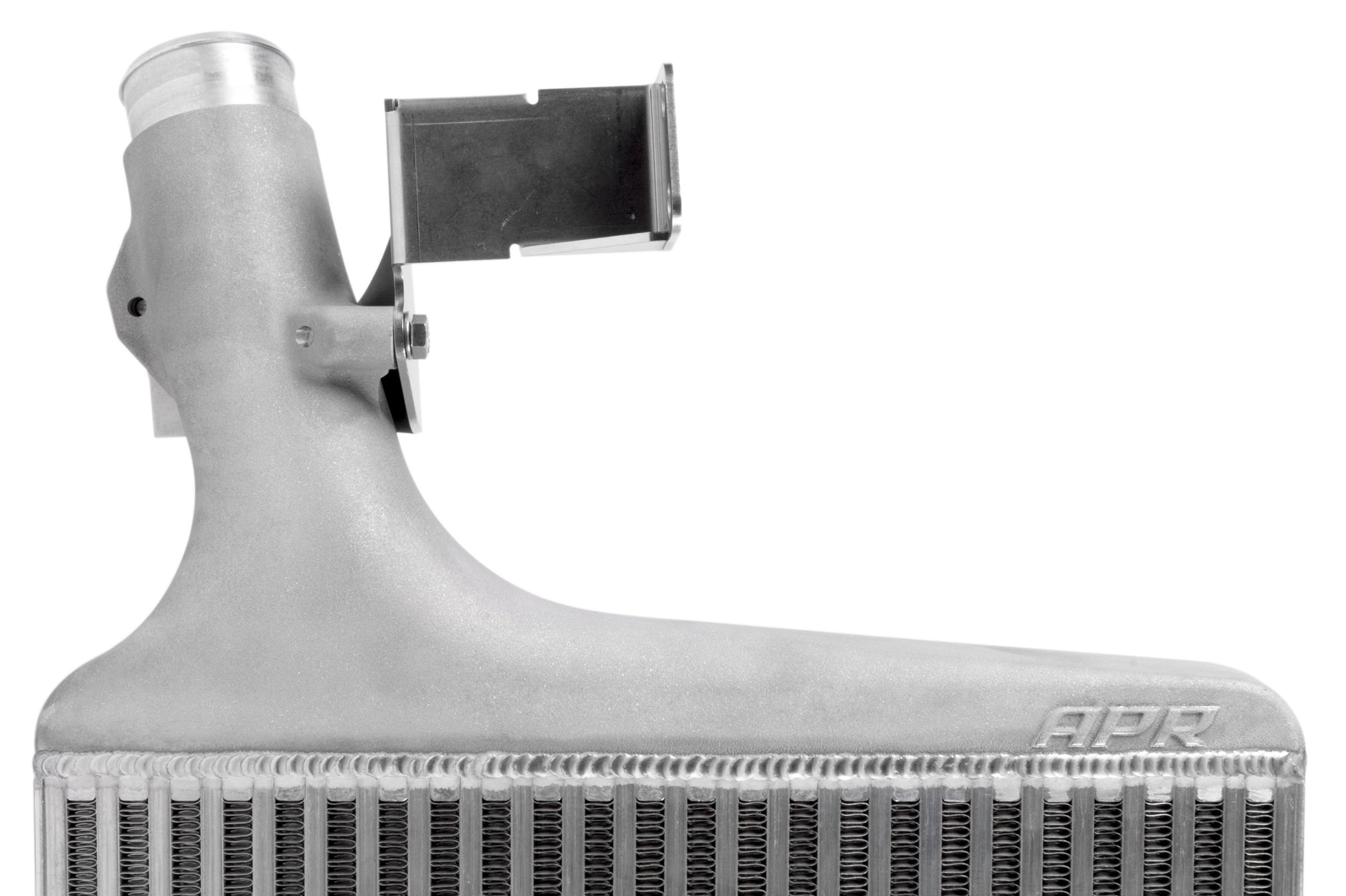

Description_FAB	Smooth cast end tanks
Description_FAB	Engineered for low turbulence/restriction and maximum flow
Description_FAB	Organically shaped to promote airflow across entire core.
Description_FAB	Pressure tested to prevent power robbing boost leaks.

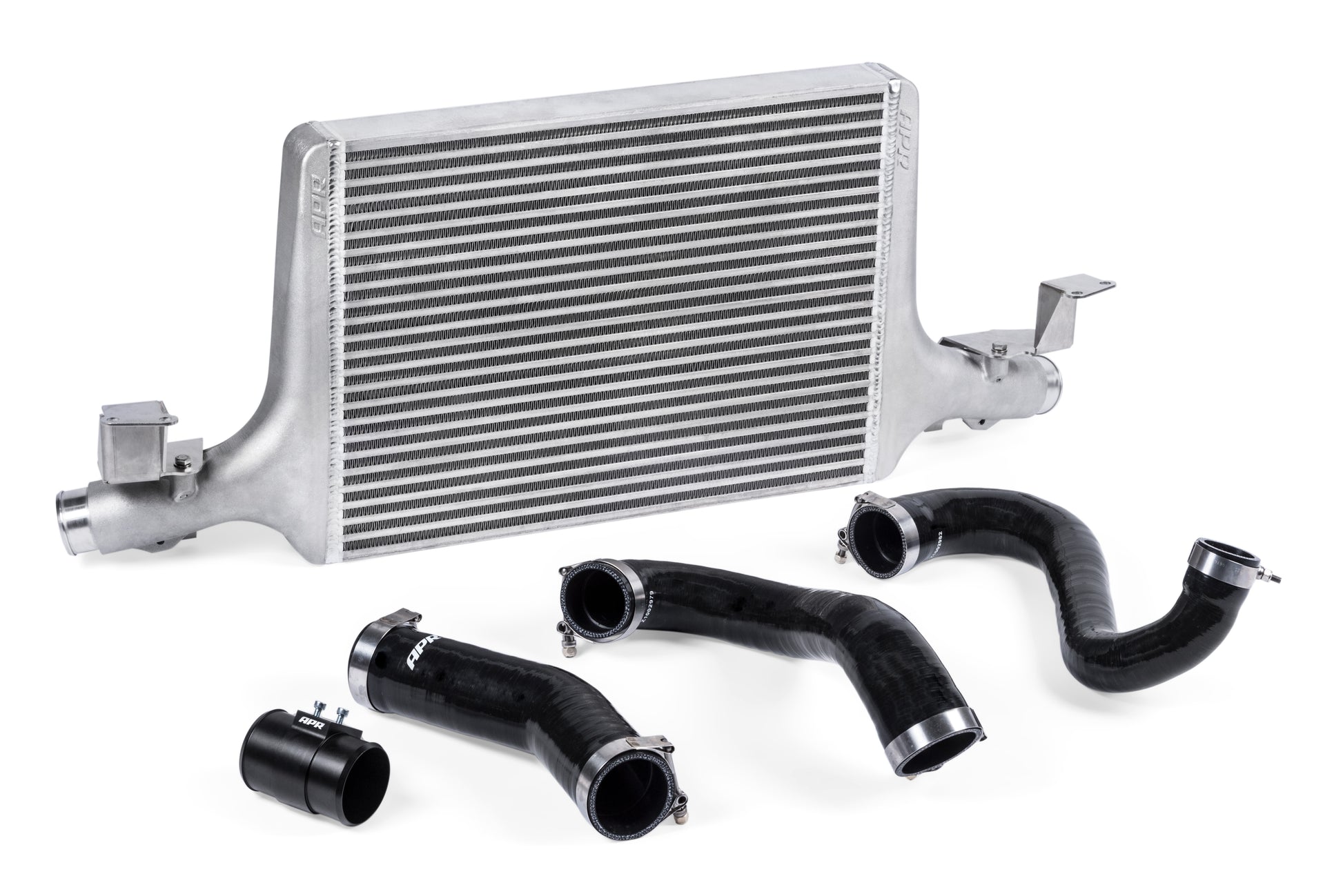

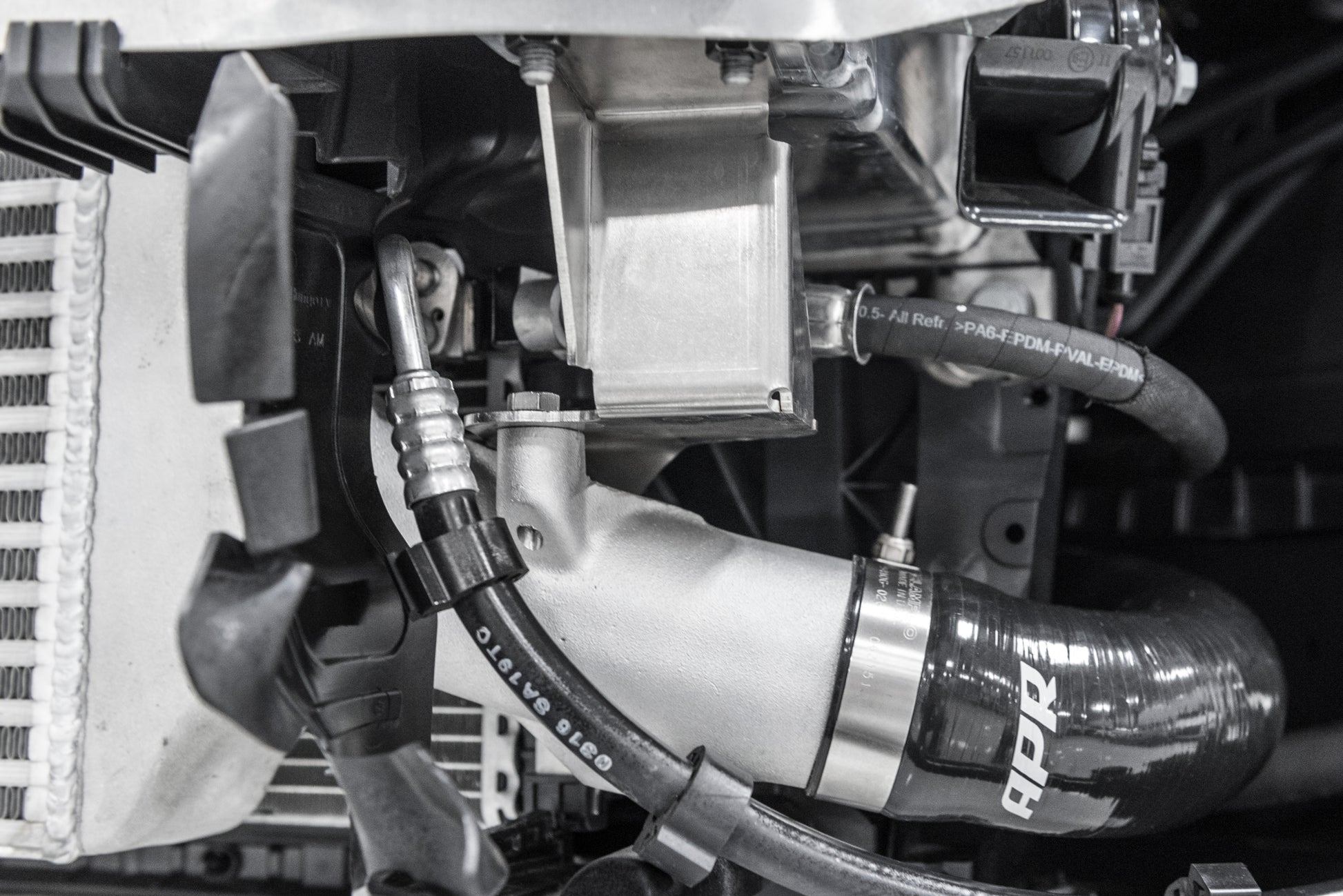

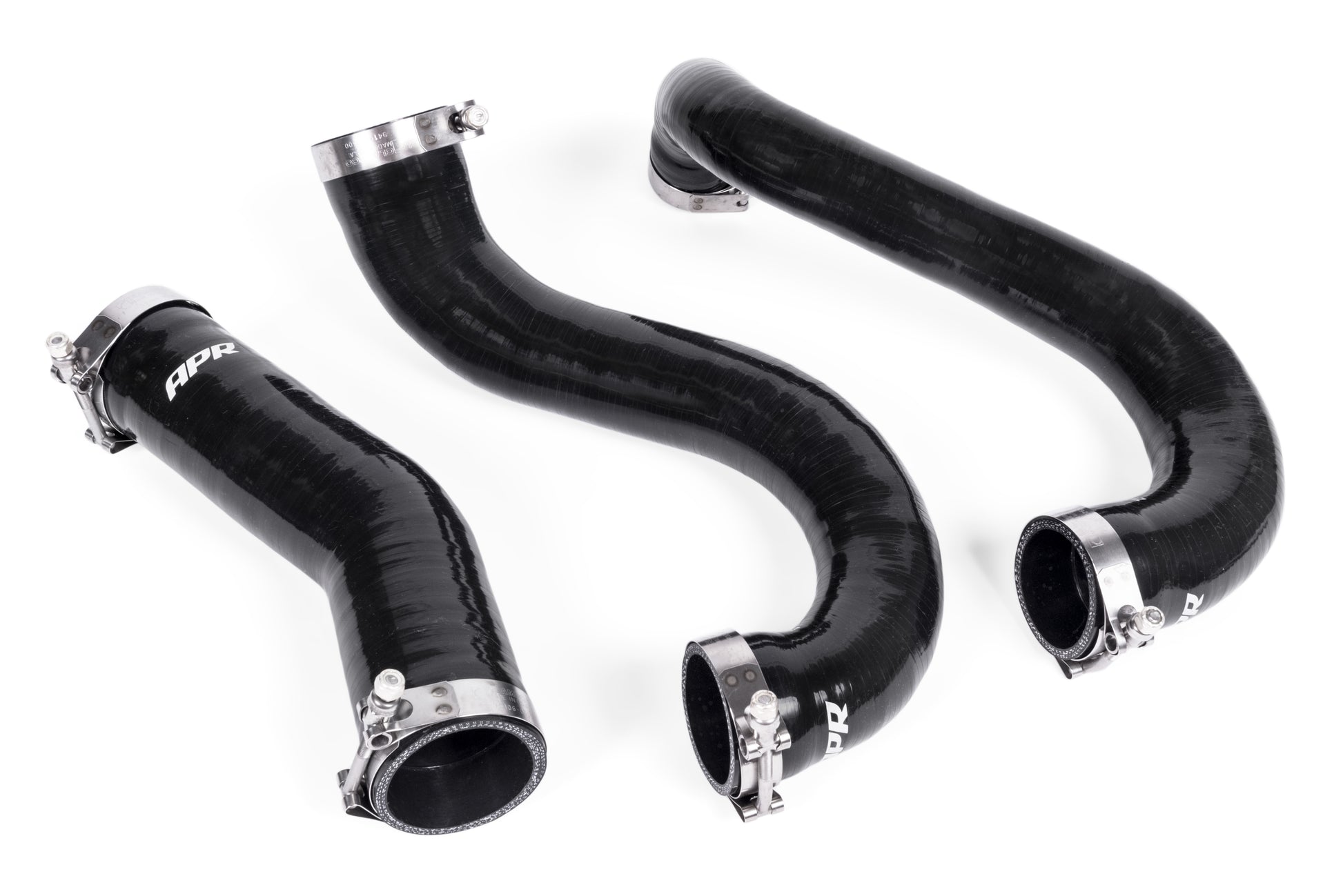

Description_FAB	Silicone inlet and outlet hoses
Description_FAB	Multi-ply silicone design with internal wire reinforcement, fluorosilicone internal protective layer and APR's EZ-Flow stepped design.
Description_FAB	Clampco T-bolt clamps
Description_FAB	Strong, stainless-steel Clampco T-Bolt clamps provide better clamping for increased protection against hose slippage and boost leaks.

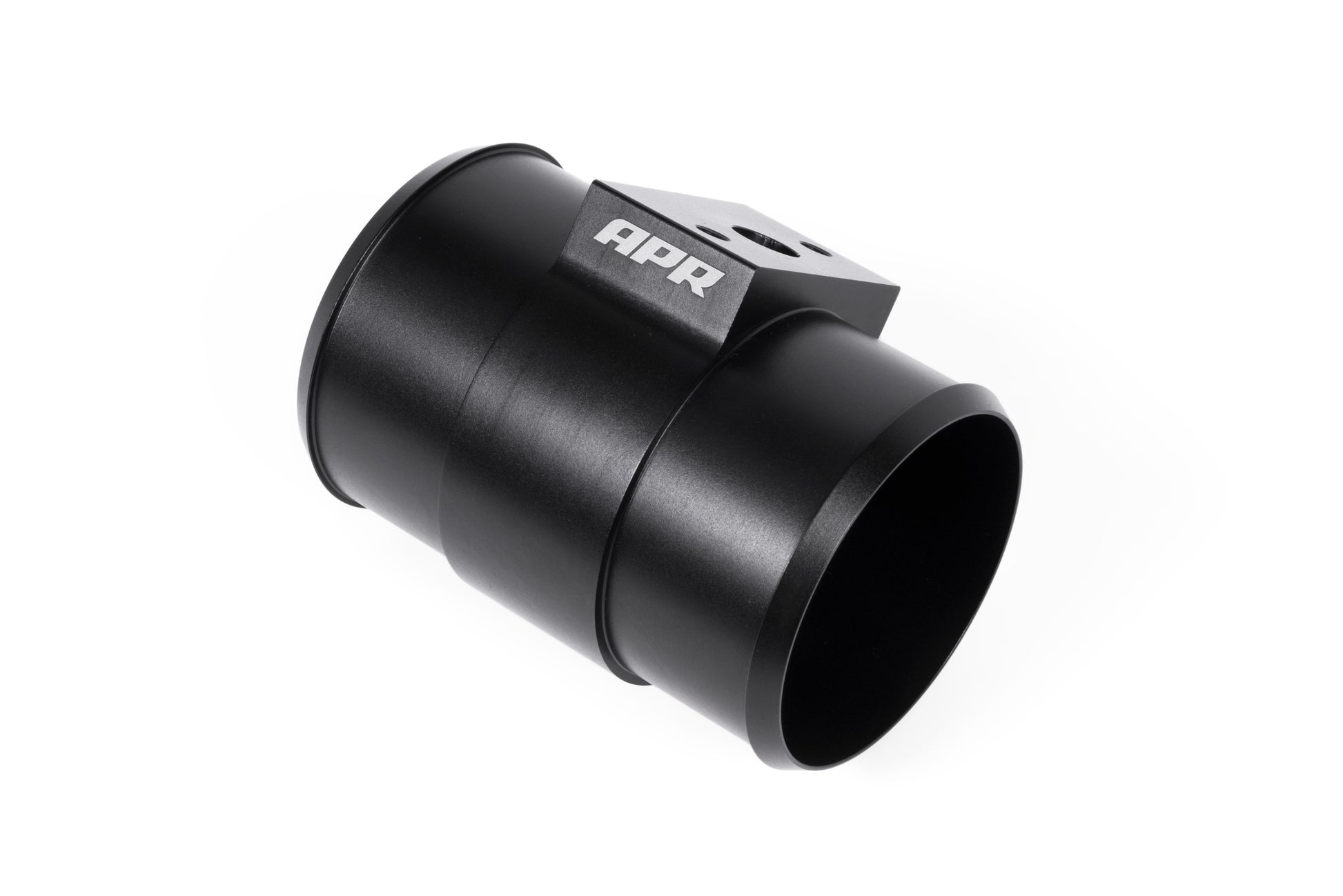

Description_FAB	Billet MAP housing
Description_FAB	Precision CNC-machined for secured sensor placement with an attractive matte-black anodized finish.

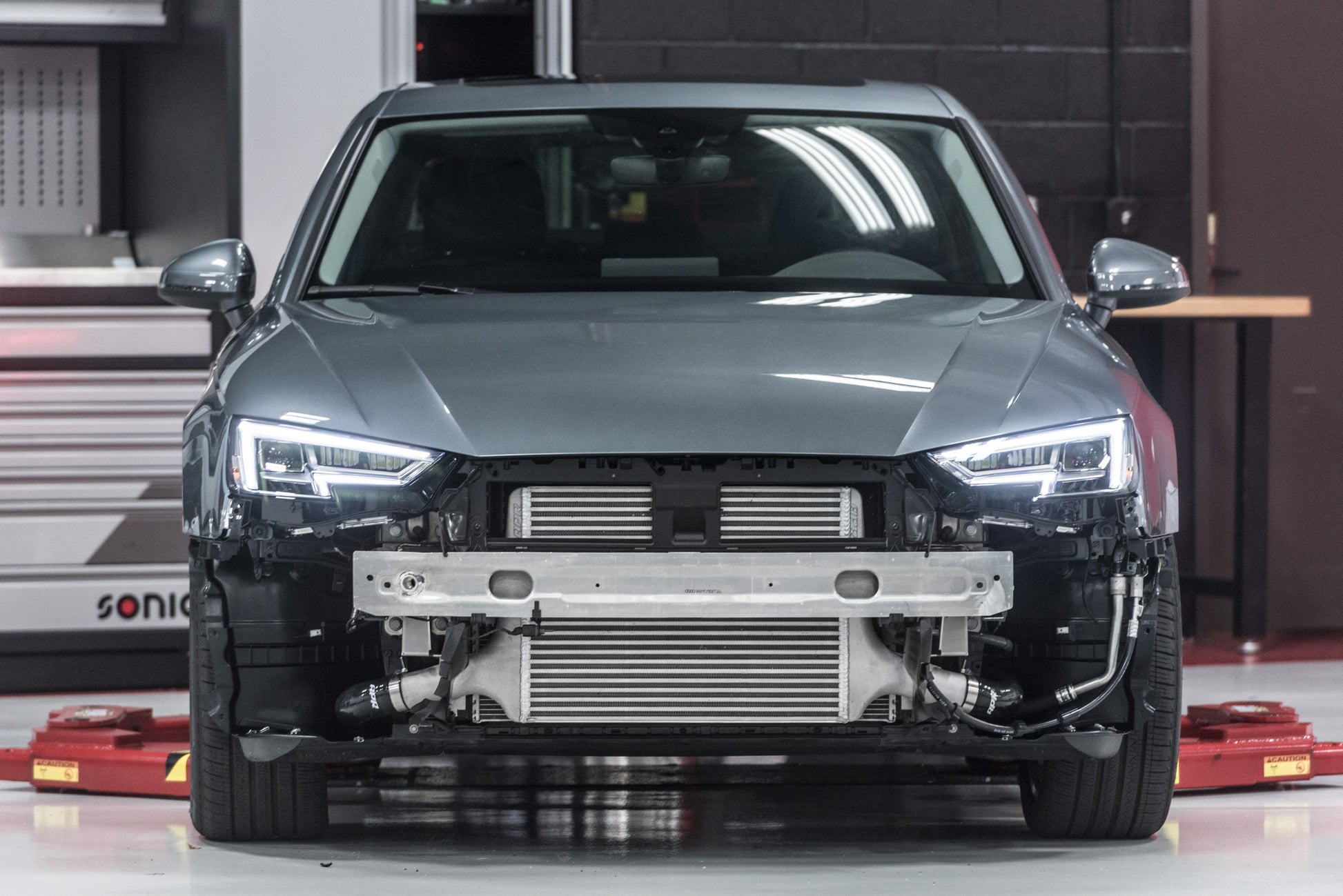

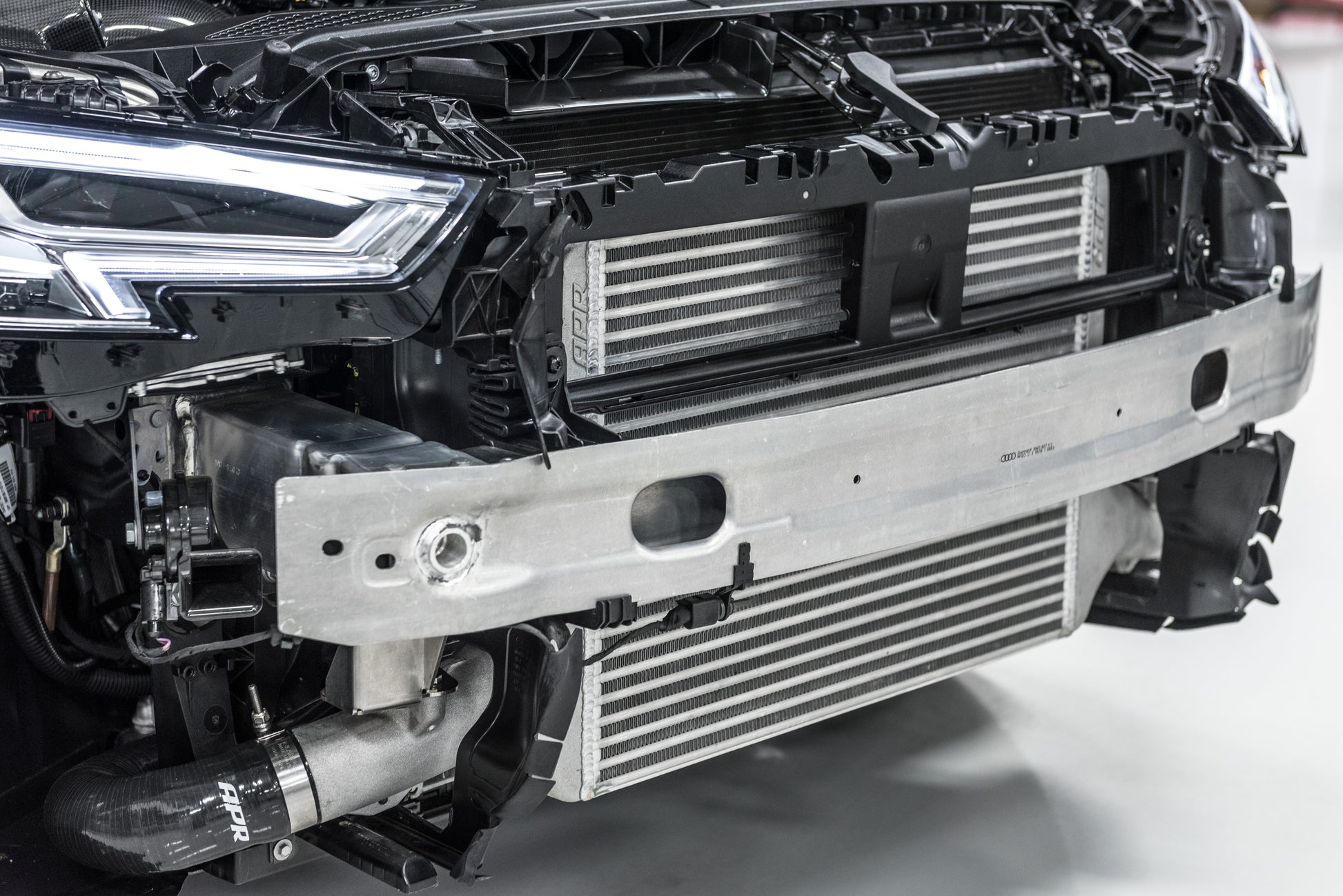

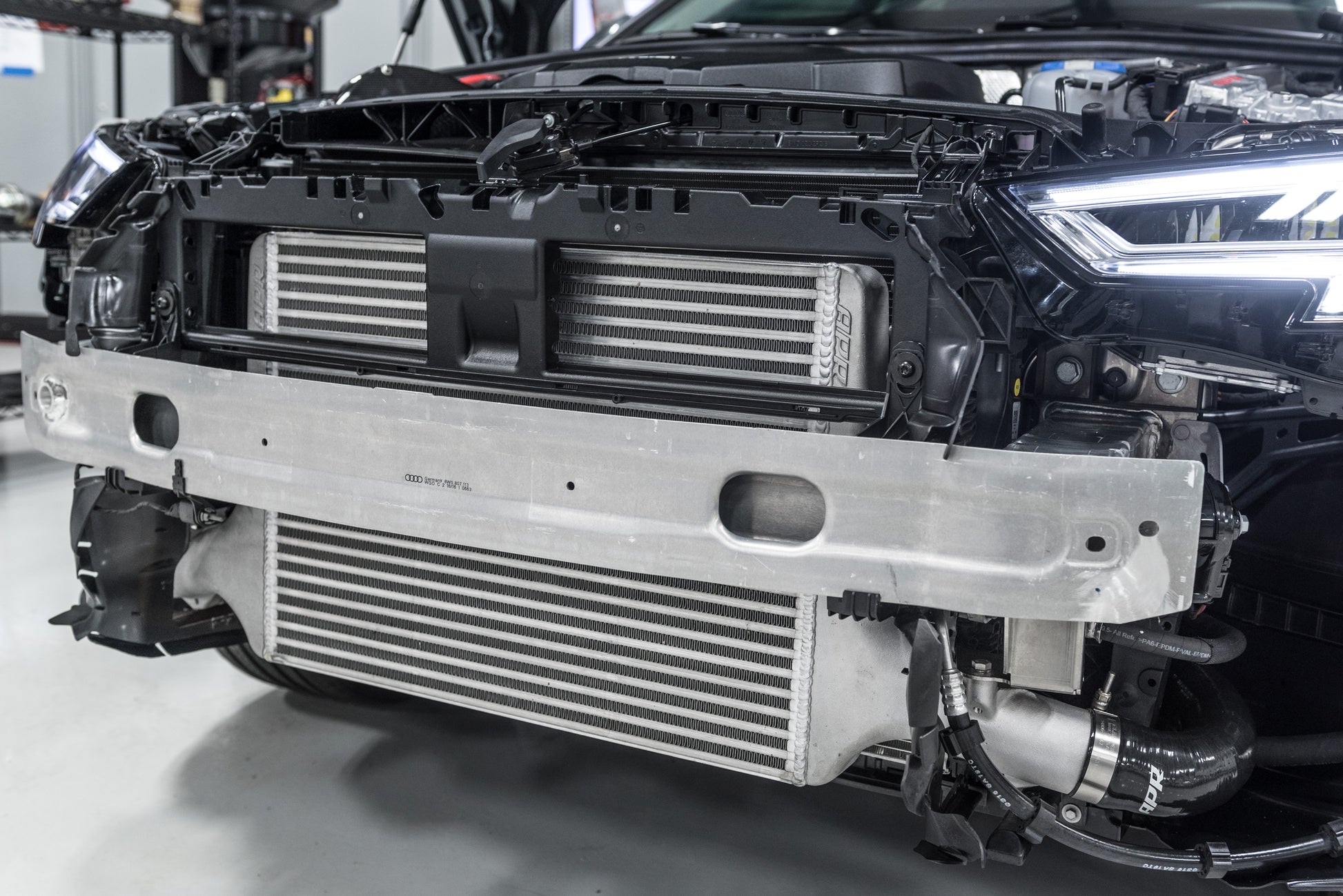

Description_FAB	Easy to install
Description_FAB	Simple bolt-on install with no trimming or drilling necessary!
Description_FAB	Designed by engineers with lasers
Description_FAB	With the best equipment and smartest engineers, it just works!
