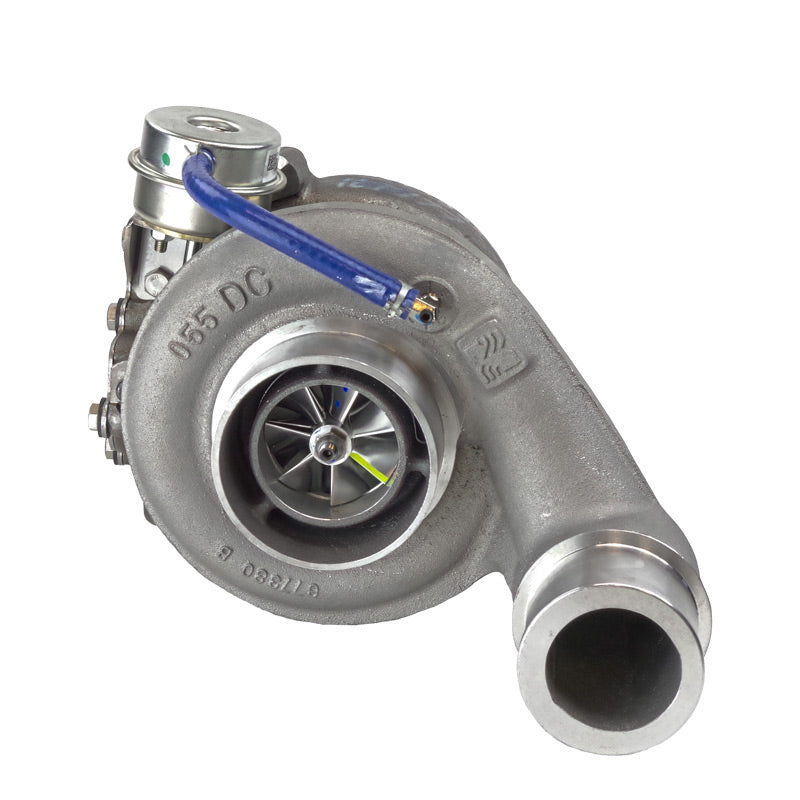

Dodge Viper Phatshaft 64 Turbo For 2004.5-2007 5.9L Cummins Industrial Injection
Dodge Viper Phatshaft 64 Turbo For 2004.5-2007 5.9L Cummins Industrial Injection
Couldn't load pickup availability
- If there is an applicable core charge, it will be included in this price and will be avail for a refund when approved after cores are returned and inspected. core charges can apply to injectors, turbos, injection pumps and possibly a few other parts. please contact if you have any questions.
The original PhatShaft is the perfect turbo for quick spool and low end performance. The Phat Shaft turbo also has the overall volume for overall torque for efficient full throttle power.
The PhatShaft can be purchased with a 12 or 14 turbine housing matched with a 65mm turbine. We suggest a 12 cm turbine housing if the engine is a 12 Valve and has moderate fueling upgrades such as 300hp injectors and a camplate.
If the engine has heavier fueling upgrades such as large injectors, aggressive cam plate and high rev governor springs then you will be better suited with 14cm housing. The benefit of the 14cm exhaust housing is lower Exhaust Gas Temperatures.
However with the 14cm housing, you will get a slightly slower response. The original PhatShaft is available in three different compressor sizes, 62mm, 64mm and 66mm. All three compressors have extended tip technology.
The waste gate is set at 40psi to prevent head gasket failure on the PhatShaft 62 and 45psi on the PhatShaft 64 and 66. All PhatShaft turbochargers are equipped with dual grooved bearings and an adjustable boost elbow.
