Industrial Injection
Dodge Common Rail Gorilla Girdle For 03 and Up Cummins 14mm With ARP XL Main Studs Industrial Injection
Dodge Common Rail Gorilla Girdle For 03 and Up Cummins 14mm With ARP XL Main Studs Industrial Injection
Regular price
$1,885.99 CAD
Regular price
$0.00 CAD
Sale price
$1,885.99 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- If there is an applicable core charge, it will be included in this price and will be avail for a refund when approved after cores are returned and inspected. core charges can apply to injectors, turbos, injection pumps and possibly a few other parts. please contact if you have any questions.
2003+ Common Rail 14Mm Gorilla Girdle W/ Arp Xl Main Studs

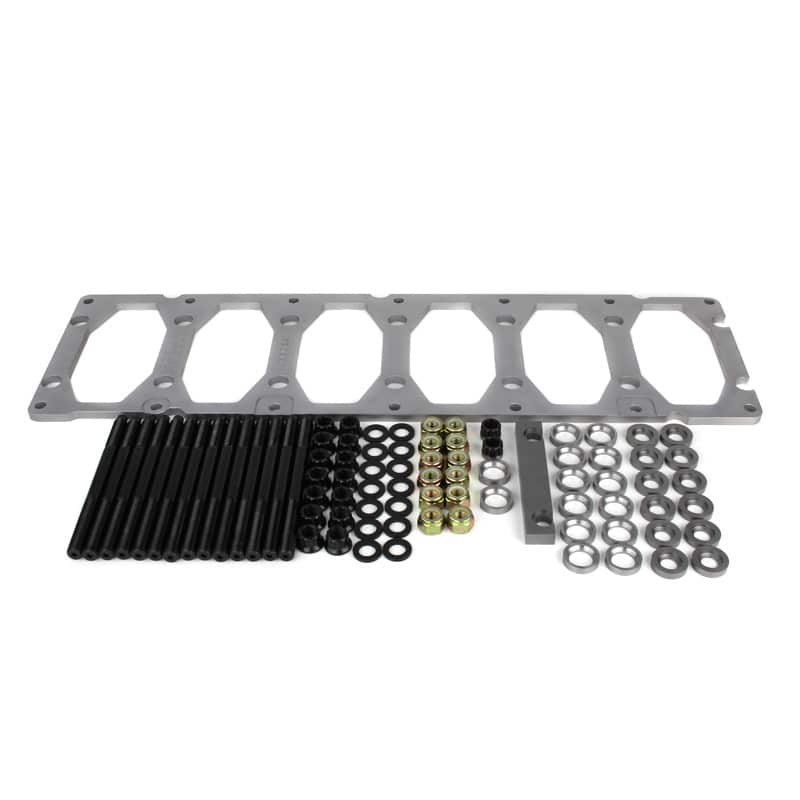

This kit includes:
- 1 Gorilla Girdle
- 14 top spacers
- (Large hole) 12 bottom spacers (small hole) 1 rear main spacer bar
- 2 rear main stud nuts (12 point)
- 12 main stud nuts (Nylock)
Before you start. First check the torque on the main studs. 14mm A1, 150 ft lbs
Requires Stamped Oil Pan
Note: On certain 6.7L Cummins engines that come factory with a windage tray instead of a factory girdle you will be required to get the early style longer oil pickup tube bolts as well as an early style oil pickup tube.
We are currently working on a fix for this to prevent any further install issues. Cummins oil pickup tube part number: 3949692 (qty 1) Cummins oil pickup tube bolt part number: 3902460 (qty 2)
