APR Supercharger Drive and Crank Pulley with Belt - Bolt on - 3.0 TFSI - MS100185

APR's Supercharger Drive Pulley Upgrade decreases the diameter of the factory pulley from ~63.25mm to 57.75mm, which in turn spins the supercharger ~9.5% faster. This results in a healthy bump in horsepower and torque across the entire RPM range with the supercharger operating at a higher rate of speed. The pulley is CNC machined from billet stainless steel, e-coated black for an OEM appearance and is bolted to the factory supercharger unit.APR's Supercharger Crank Pulley Upgrade increases the diameter of the factory pulley from ~162mm to ~187mm, which in turn spins the supercharger ~15.4% faster. This results in a larger bump in horsepower and torque across the entire RPM range, as the supercharger is spinning at an even higher rate of speed. The pulley retains the factory harmonically balanced crank pulley and bolts on top of the existing unit. It is CNC machined from light weight billet aluminum with weight saving pockets throughout. It has an anodized black finish and includes new crank pulley bolts.Upgrading both the supercharger drive and crank pulleys results in the factory supercharger spinning ~26.4% faster than stock. This speed was chosen after extensive engine and chassis dyno testing with various pulley sizes and supercharger speeds. The result is an even higher horsepower and torque gain across the entire RPM range. However, at the airflow levels achieved with a dual pulley setup, maximum power is severely restricted by the factory throttle body unit. The APR Ultracharger Throttle Body Upgrade is necessary to take full advantage of the dual pulley configuration, and is available in platform specific variations for the B8/B8.5 A4/A4/S4/S5, Q5/SQ5 and C7 A6/A7.Belt IncludedSoftware sold separately

This Part Fits:

Year	Make	Model	Submodel	Notes
2016	Audi	A6 Quattro
2017	Audi	A6 Quattro
2018	Audi	A6 Quattro
2016	Audi	A7 Quattro
2017	Audi	A7 Quattro
2018	Audi	A7 Quattro
2015	Audi	A8 Quattro
2016	Audi	A8 Quattro
2017	Audi	A8 Quattro
2018	Audi	A8 Quattro
2017	Audi	Q7
2018	Audi	Q7
2019	Audi	Q7

Specifications:

Brand	APR
Category	Belts and Cooling
17	Black
Construction	Billet
Diameter	57.75, 187
Emission Code	6
10	6061 Aluminum, T304 Stainless Steel
Product Type	Pulley Systems
Sub Category	Turbocharger, Supercharger and Ram Air
Version	Dual Pulley - Bolt On
Warning	California Proposition 65
Description_SHO	Pulley
Description_INV	DUAL PULLEY KIT, BOLT ON
Description_ASC	Please note, specific software is required to maximize output with this product.
Description_DES	APR Supercharger Drive and Crank Pulley with Belt - Bolt on - 3.0 TFSI
Description_EXT	Fits 2015-2018 Audi A6/A7/A8 - 2017-2019 Audi Q7
Description_MKT	APR's Supercharger Drive Pulley Upgrade decreases the diameter of the factory pulley from ~63.25mm to 57.75mm, which in turn spins the supercharger ~9.5% faster. This results in a healthy bump in horsepower and torque across the entire RPM range with the supercharger operating at a higher rate of speed. The pulley is CNC machined from billet stainless steel, e-coated black for an OEM appearance and is bolted to the factory supercharger unit.APR's Supercharger Crank Pulley Upgrade increases the diameter of the factory pulley from ~162mm to ~187mm, which in turn spins the supercharger ~15.4% faster. This results in a larger bump in horsepower and torque across the entire RPM range, as the supercharger is spinning at an even higher rate of speed. The pulley retains the factory harmonically balanced crank pulley and bolts on top of the existing unit. It is CNC machined from light weight billet aluminum with weight saving pockets throughout. It has an anodized black finish and includes new crank pulley bolts.Upgrading both the supercharger drive and crank pulleys results in the factory supercharger spinning ~26.4% faster than stock. This speed was chosen after extensive engine and chassis dyno testing with various pulley sizes and supercharger speeds. The result is an even higher horsepower and torque gain across the entire RPM range. However, at the airflow levels achieved with a dual pulley setup, maximum power is severely restricted by the factory throttle body unit. The APR Ultracharger Throttle Body Upgrade is necessary to take full advantage of the dual pulley configuration, and is available in platform specific variations for the B8/B8.5 A4/A4/S4/S5, Q5/SQ5 and C7 A6/A7.Belt IncludedSoftware sold separately
Description_FAB	Full dual pulley kit

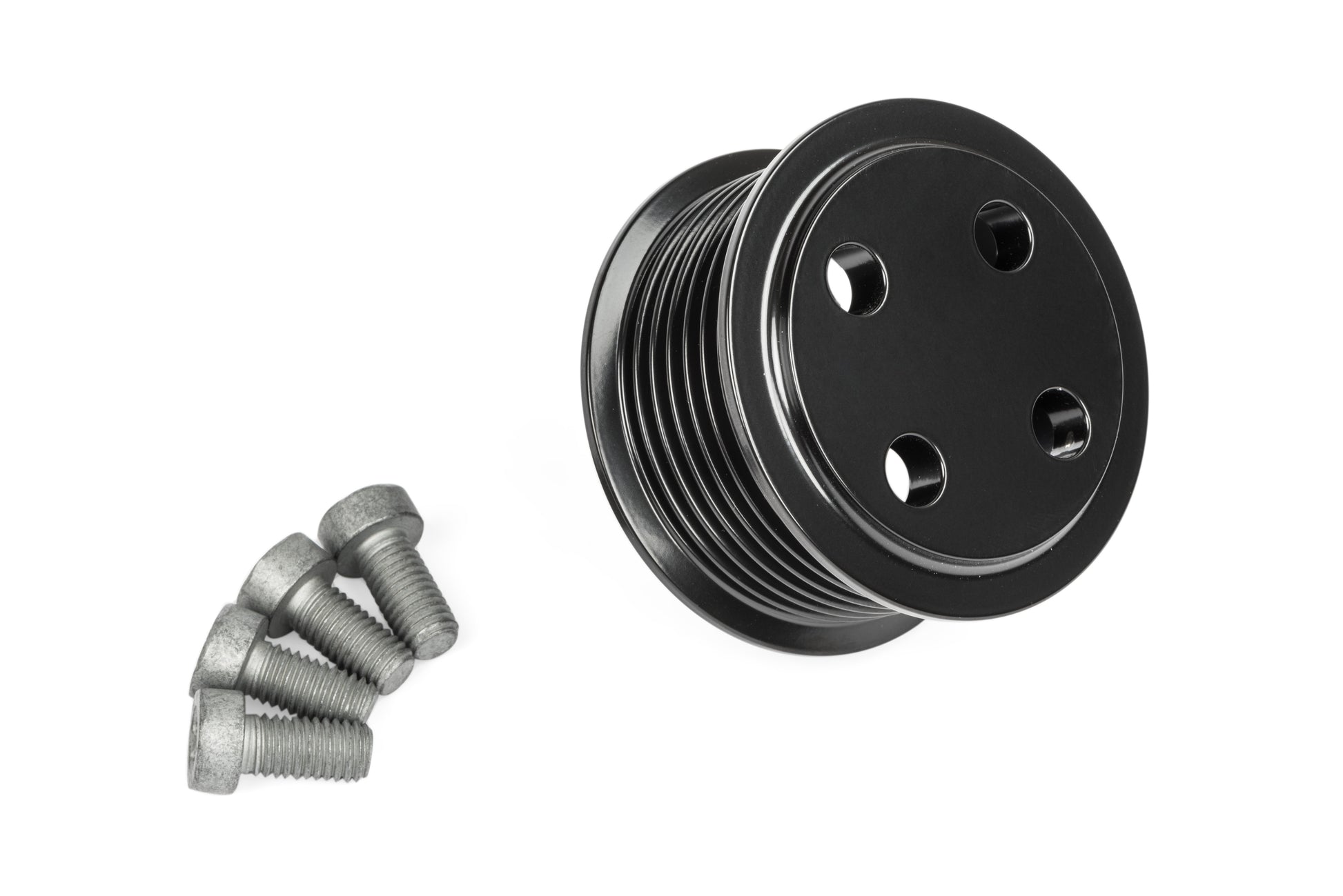

Description_FAB	Bolt on 57.75mm supercharger drive pulley

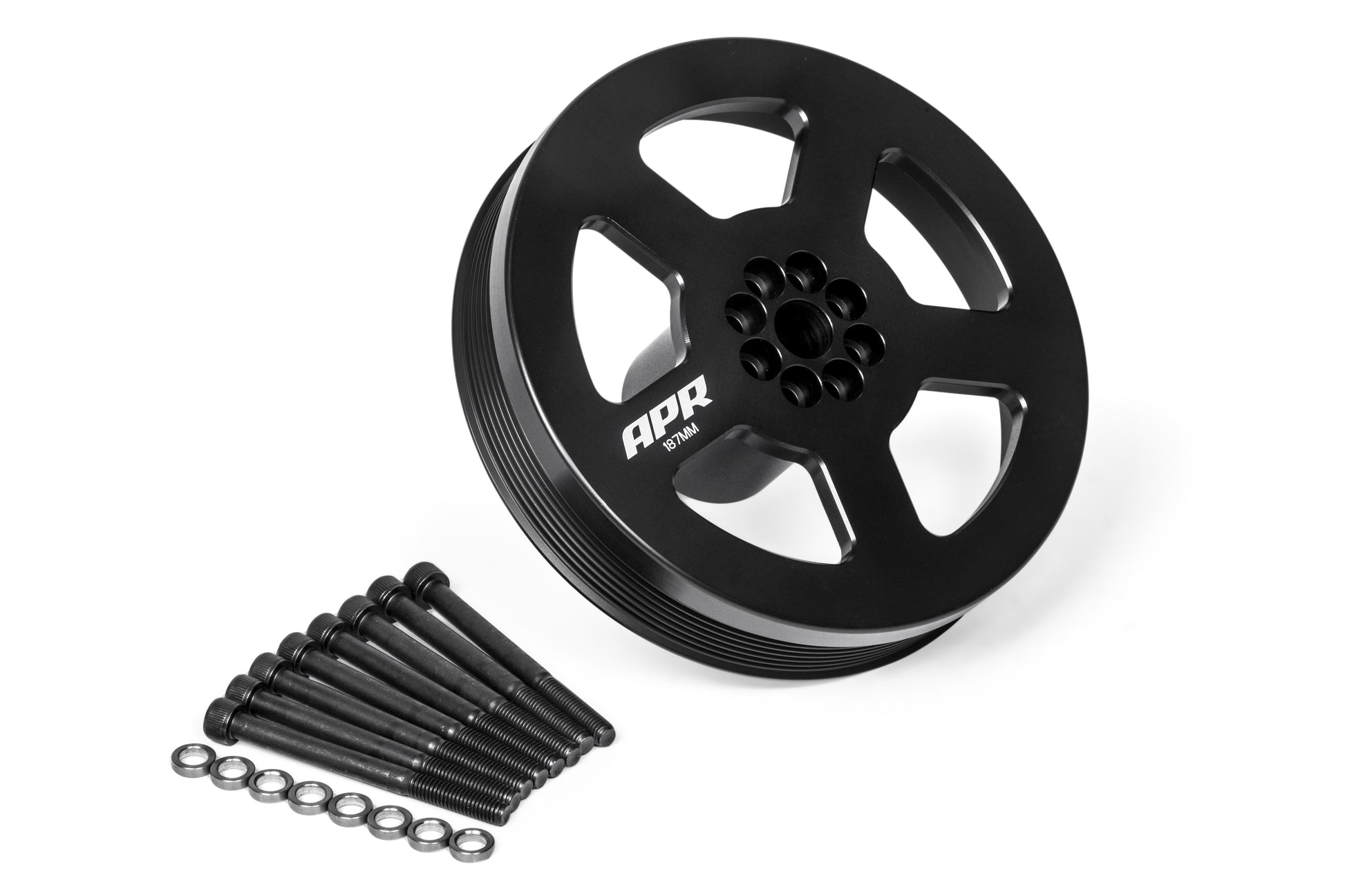

Description_FAB	Bolt on 187mm crank pulley
Description_FAB	Spins the charger 26.4% faster for massive torque and HP gains with tuning
Description_FAB	Anodized and E-coated factory black

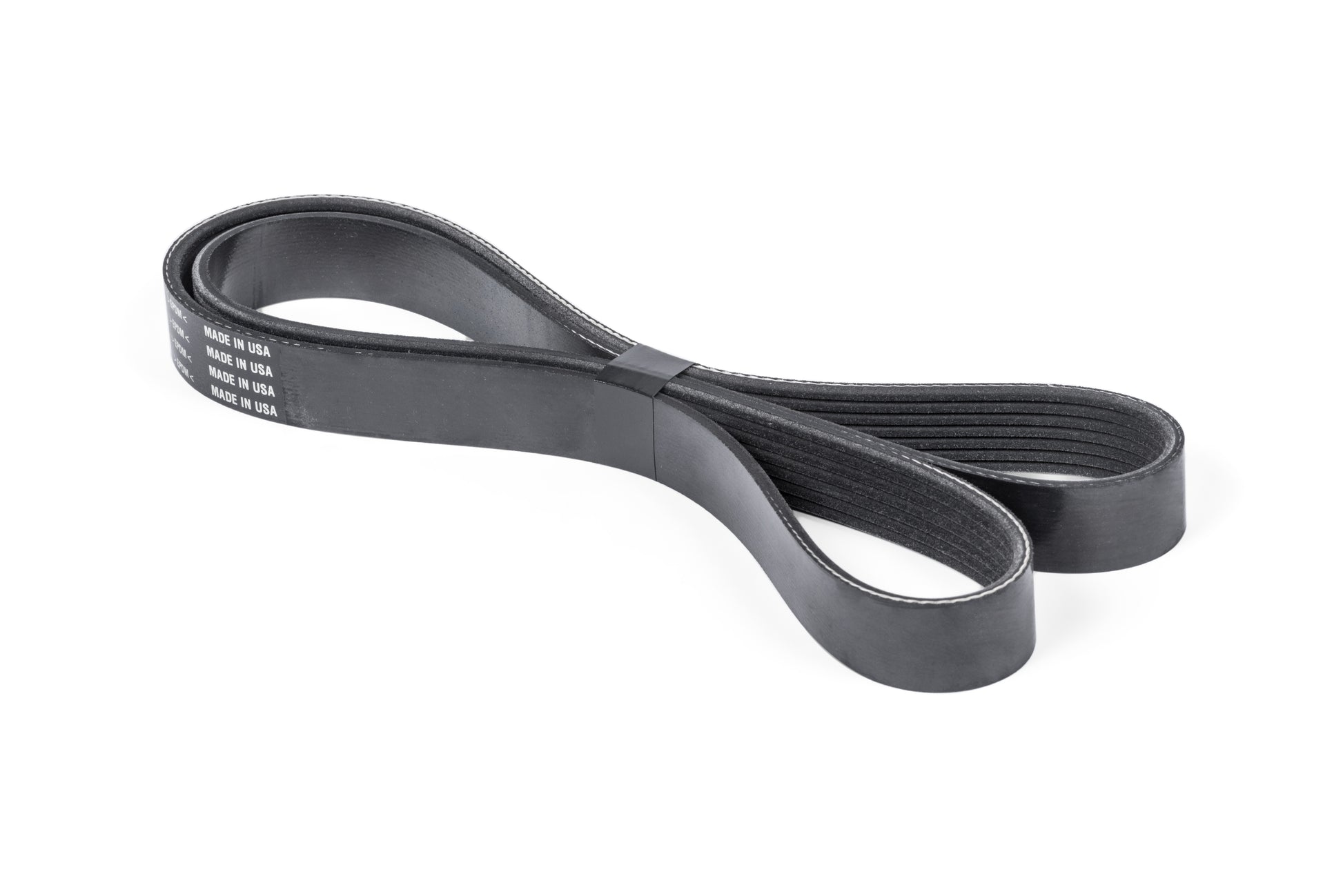

Description_FAB	Appropriate belt included
Description_FAB	Retains factory harmonic balancer
