APR K04-64 Turbo System - 2.0T Transverse - EA113 - T2100012

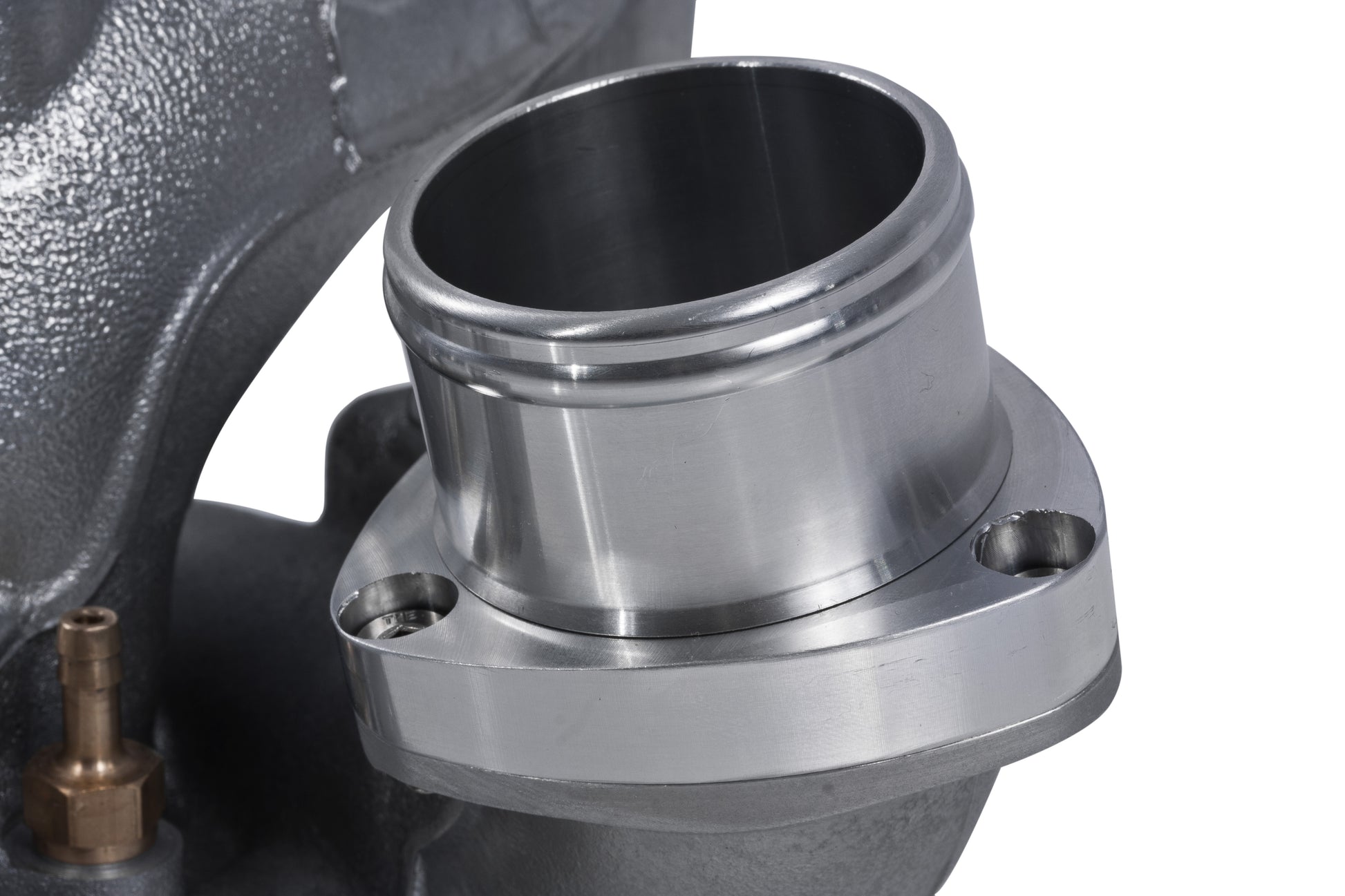

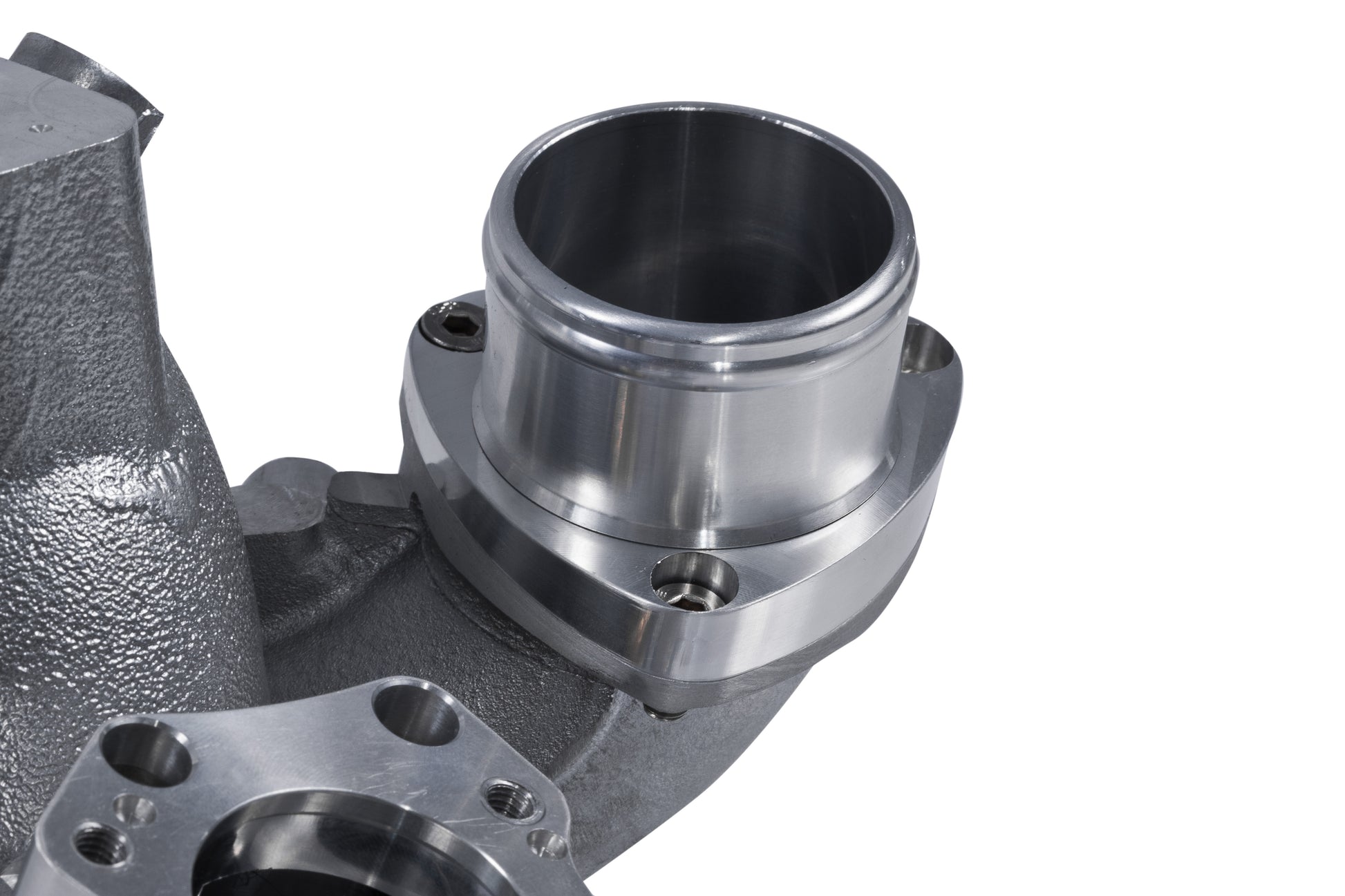

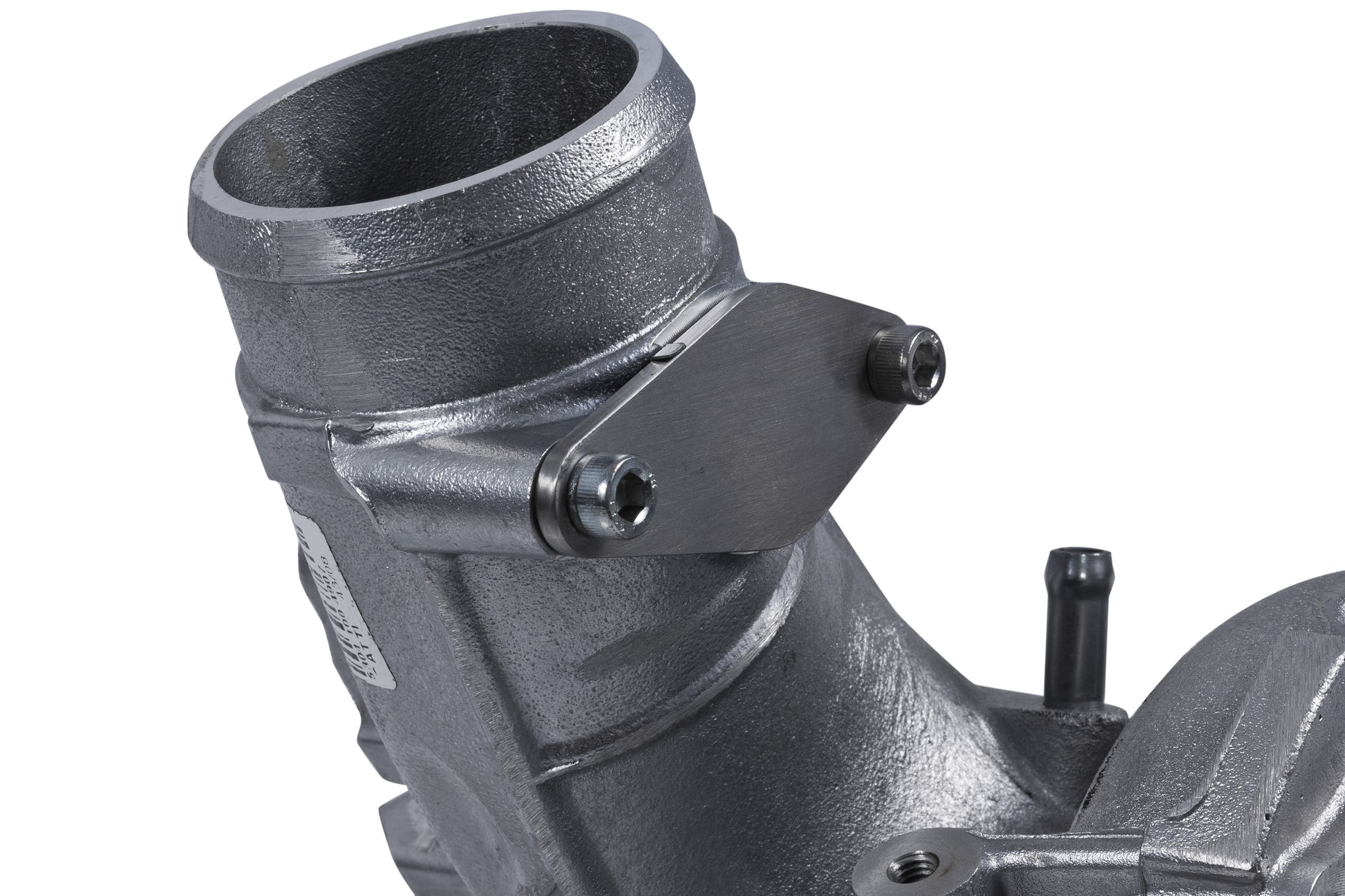

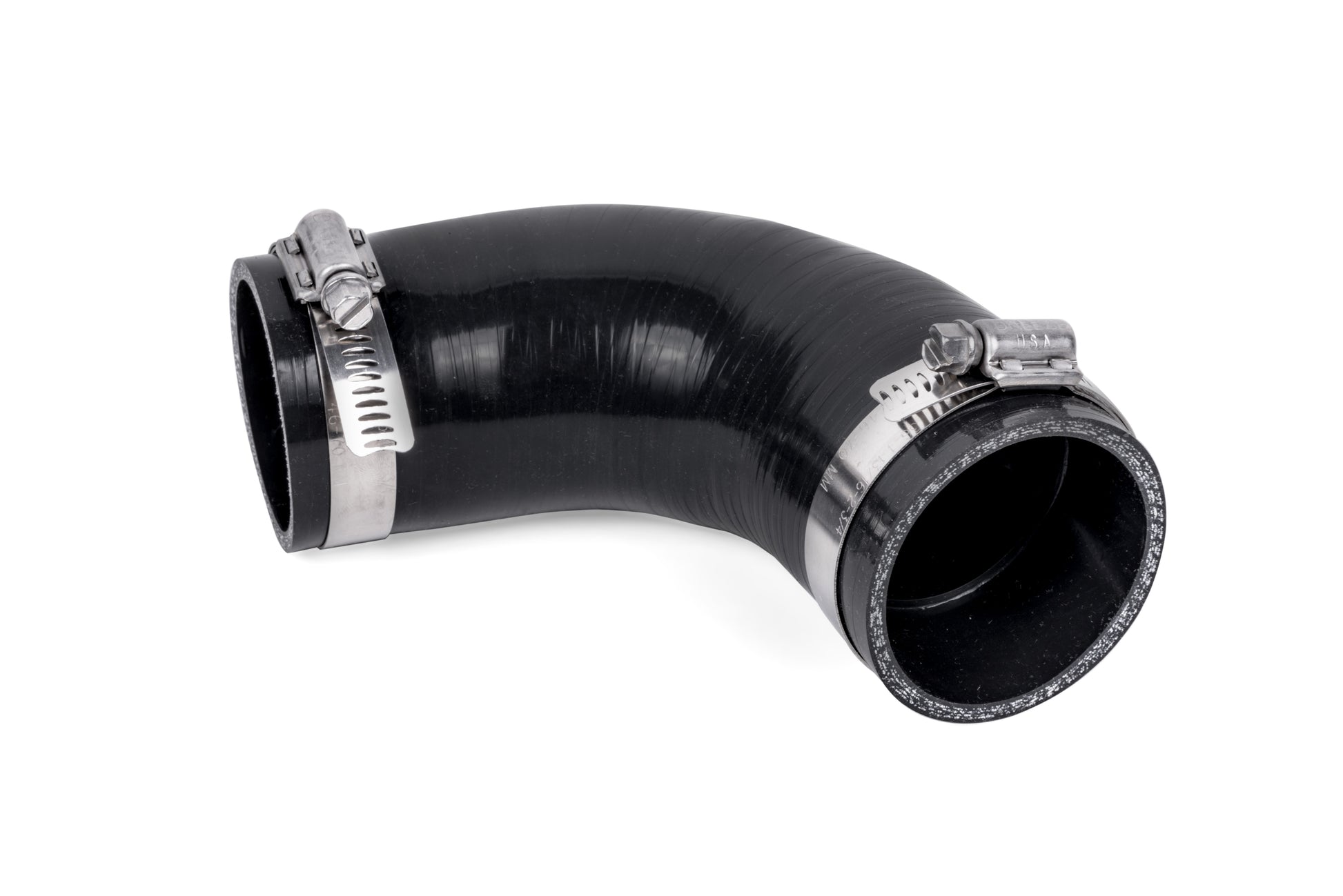

The OEM k04 turbocharger features a turbo muffler designed to reduce turbocharger sound in the cabin that also creates a restriction in the boost pressure delivery stream. APR removes the turbo muffler not only to enhance the sound of the turbocharger, but also to smooth the airflow across the previously baffled muffler section. This also eliminates the need to Purchase an OEM S3 turbo discharger pipe. A clean and simple CNC flange developed by APR's Engineering Team is bolted directly to the compressor cover in place of the OEM turbo muffler. A long mounting surface provides an excellent slip proof surface for mounting the silicon discharge hose and an o-ring between the flanges ensures a life of leak proof operation.

This Part Fits:

Year	Make	Model	Submodel	Notes
2006	Audi	A3
2007	Audi	A3
2008	Audi	A3
2009	Audi	A3
2010	Audi	A3
2011	Audi	A3
2012	Audi	A3
2013	Audi	A3
2009	Audi	A3 Quattro
2010	Audi	A3 Quattro
2011	Audi	A3 Quattro
2012	Audi	A3 Quattro
2013	Audi	A3 Quattro
2005	Audi	A4
2006	Audi	A4
2007	Audi	A4
2008	Audi	A4
2005	Audi	A4 Quattro
2006	Audi	A4 Quattro
2007	Audi	A4 Quattro
2008	Audi	A4 Quattro
2008	Audi	TT
2009	Audi	TT
2009	Audi	TT Quattro
2010	Audi	TT Quattro
2011	Audi	TT Quattro
2012	Audi	TT Quattro
2013	Audi	TT Quattro
2014	Audi	TT Quattro
2015	Audi	TT Quattro
2009	Audi	TTS Quattro
2010	Audi	TTS Quattro
2011	Audi	TTS Quattro
2012	Audi	TTS Quattro
2013	Audi	TTS Quattro
2014	Audi	TTS Quattro
2015	Audi	TTS Quattro
2007	Volkswagen	Eos
2008	Volkswagen	Eos
2009	Volkswagen	Eos
2010	Volkswagen	Eos
2011	Volkswagen	Eos
2012	Volkswagen	Eos
2013	Volkswagen	Eos
2014	Volkswagen	Eos
2015	Volkswagen	Eos
2016	Volkswagen	Eos
2012	Volkswagen	Golf R
2013	Volkswagen	Golf R
2006	Volkswagen	GTI
2007	Volkswagen	GTI
2008	Volkswagen	GTI
2009	Volkswagen	GTI
2005	Volkswagen	Jetta
2006	Volkswagen	Jetta
2007	Volkswagen	Jetta
2008	Volkswagen	Jetta
2009	Volkswagen	Jetta
2010	Volkswagen	Jetta
2006	Volkswagen	Passat
2007	Volkswagen	Passat
2008	Volkswagen	Passat
2009	Volkswagen	Passat
2010	Volkswagen	Passat

Specifications:

Brand	APR
Category	Exhaust
ECU Software Included	Yes
Emission Code	4
Product Type	Turbocharger Systems
Software Included	Yes
Sub Category	Service Kits
Turbo Brand	Borg Warner
Turbo Type	Drop-in Turbo
Turbocharger	K04-64
Version	Transverse EA113
Warning	California Proposition 65
Description_SHO	Turbo
Description_INV	2.0T FSI K04 KIT W/O FUEL PUMP W/O INJEC
Description_ASC	Please note: Specific software is required to use this system. Software is included. The software installs to your vehicle's factory ECU. Software can only be installed by an Authorized APR dealer. Software compatibility must be checked before purchase. This system also requires other hardware to function properly, including: HPFP, Injectors (MS100041 or 06F 906 036 F), Race DP, Intake, Intercooler, transmission software, spark plugs, and factory injectors. This system may require transmission and engine internal upgrades.
Description_DES	APR K04-64 Turbo System - 2.0T Transverse - EA113
Description_EXT	Fits Audi A3 06-13, A3 Quattro 09-13, A4 05-08, A4 Quattro 05-08, TT 08-09, TT Quattro 09-15, TTS Quattro 09-15; Volkswagen Eos 07-16, Golf R 12-13, GTI 06-09, Jetta 05-10, Passat 06-10

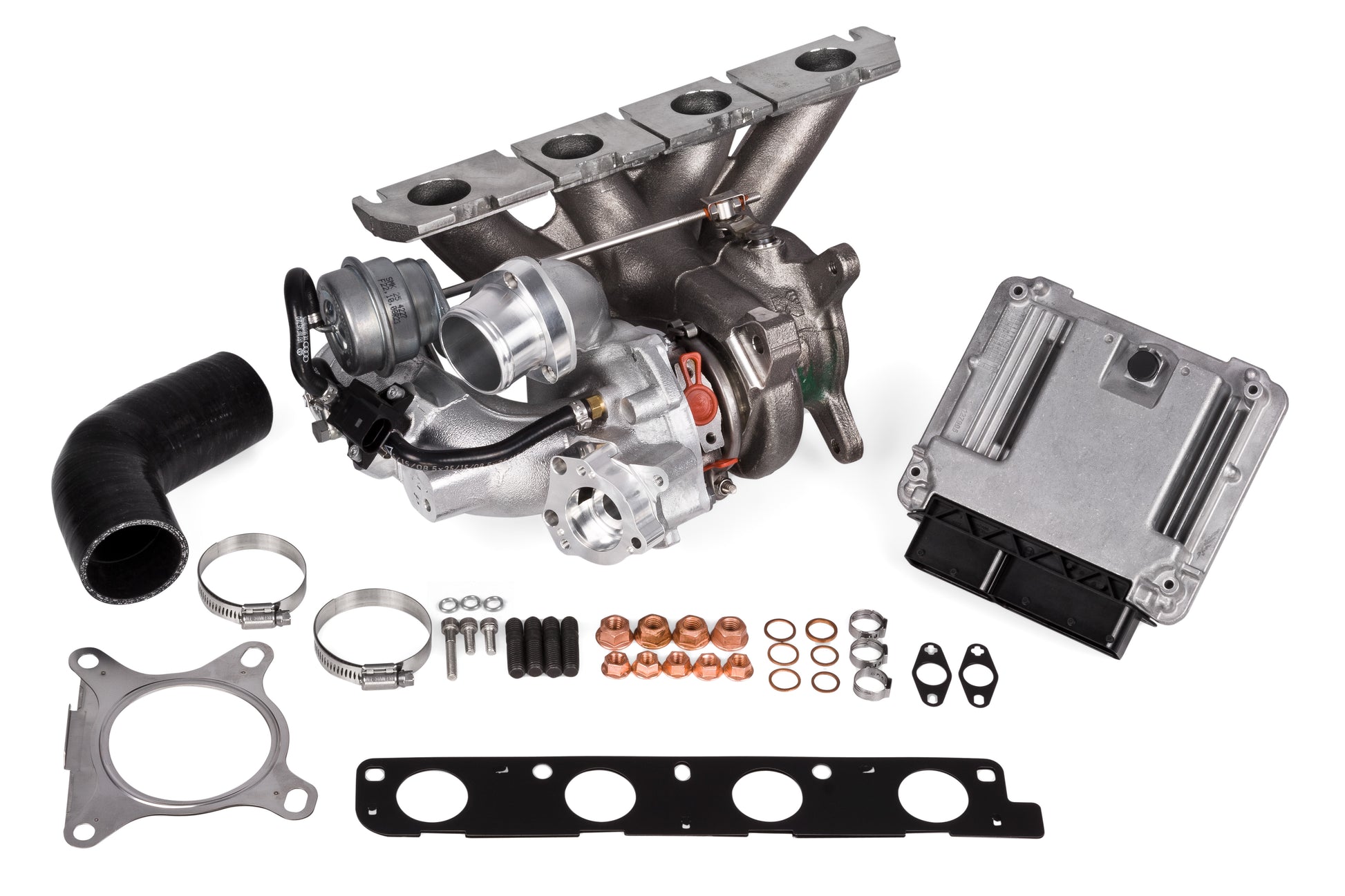

Description_MKT	APR's Transverse 2.0T FSI Audi S3 and VW Golf-R K04 Turbocharger System will upgrade your current 200hp and 207lb-ft Transverse 2.0T FSI Engine with the necessary OEM components from the European Audi S3 and Golf-R along with APR's Direct Compressor DV Recirculation Port, CNC Turbo Outlet and meticulously recalibrated Engine Management to produce 355 horsepower and 368lb-ft of torque on 100 octane gas.
Description_MKT	Reliability, drivability and enhanced performance that cannot be bested are the highlights of APR's newest OEM-component based conversion package.
Description_MKT	APR's engineers have expertly recalibrated the engine management system to allow for nearly flat torque delivery from 2500 rpm's to 5000 rpm's which results in a smooth linear pull throughout the power band. Keeping the track enthusiast in mind, this conversion package will not result in overpowering of the driveline but will allow for smooth acceleration to easily maintain control while cornering.

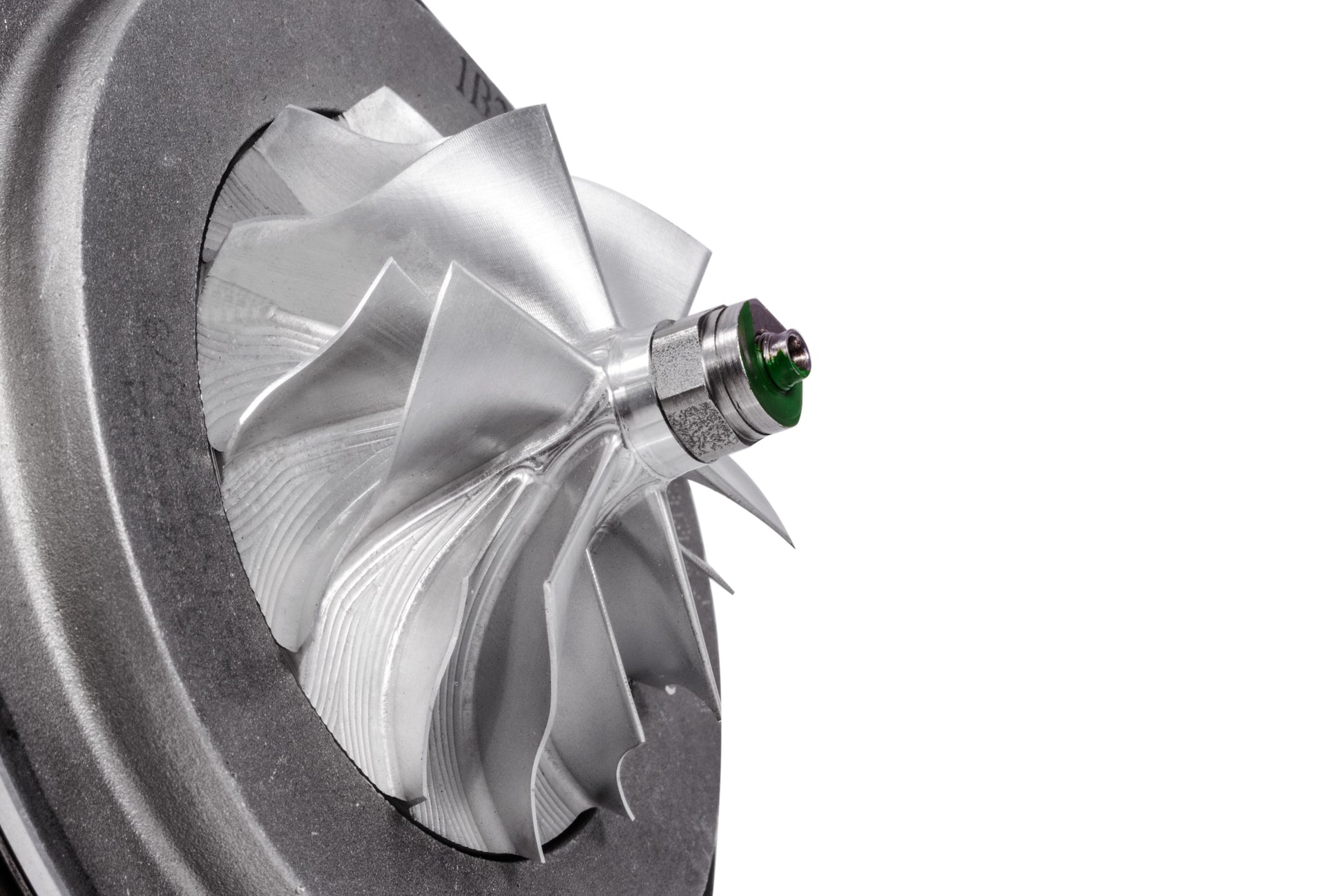

Description_MKT	The Borg Warner K04 turbocharger selected by VAG engineers is perfectly sized for the 2.0 liters of displacement to allow for stout horsepower numbers as the rpm's increase with no fall off as redline approaches. This ensures plenty of power in the high rpm's for continued acceleration in the straights or for shifting back into the healthiest portion of the power band at the drag strip.

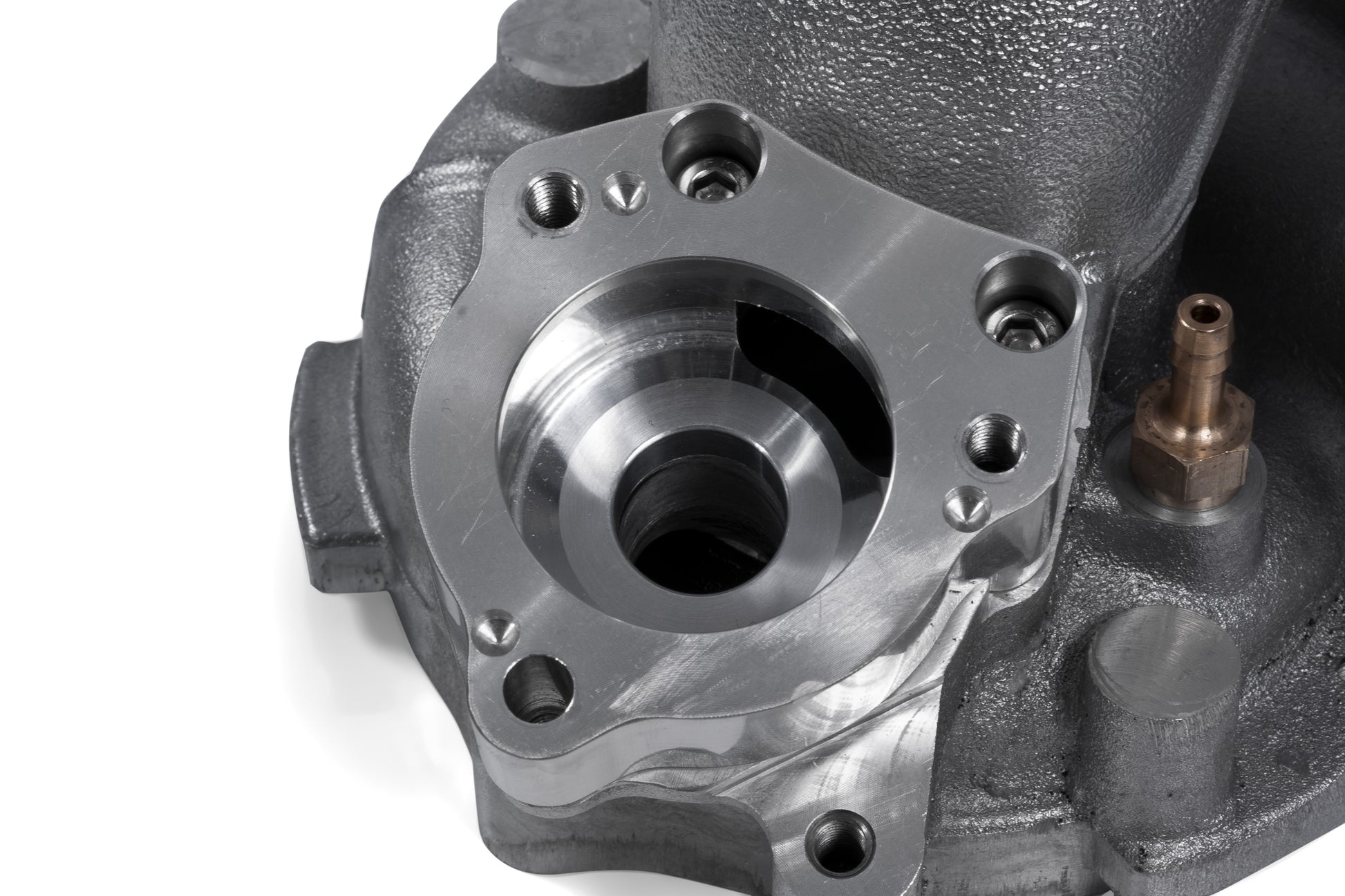

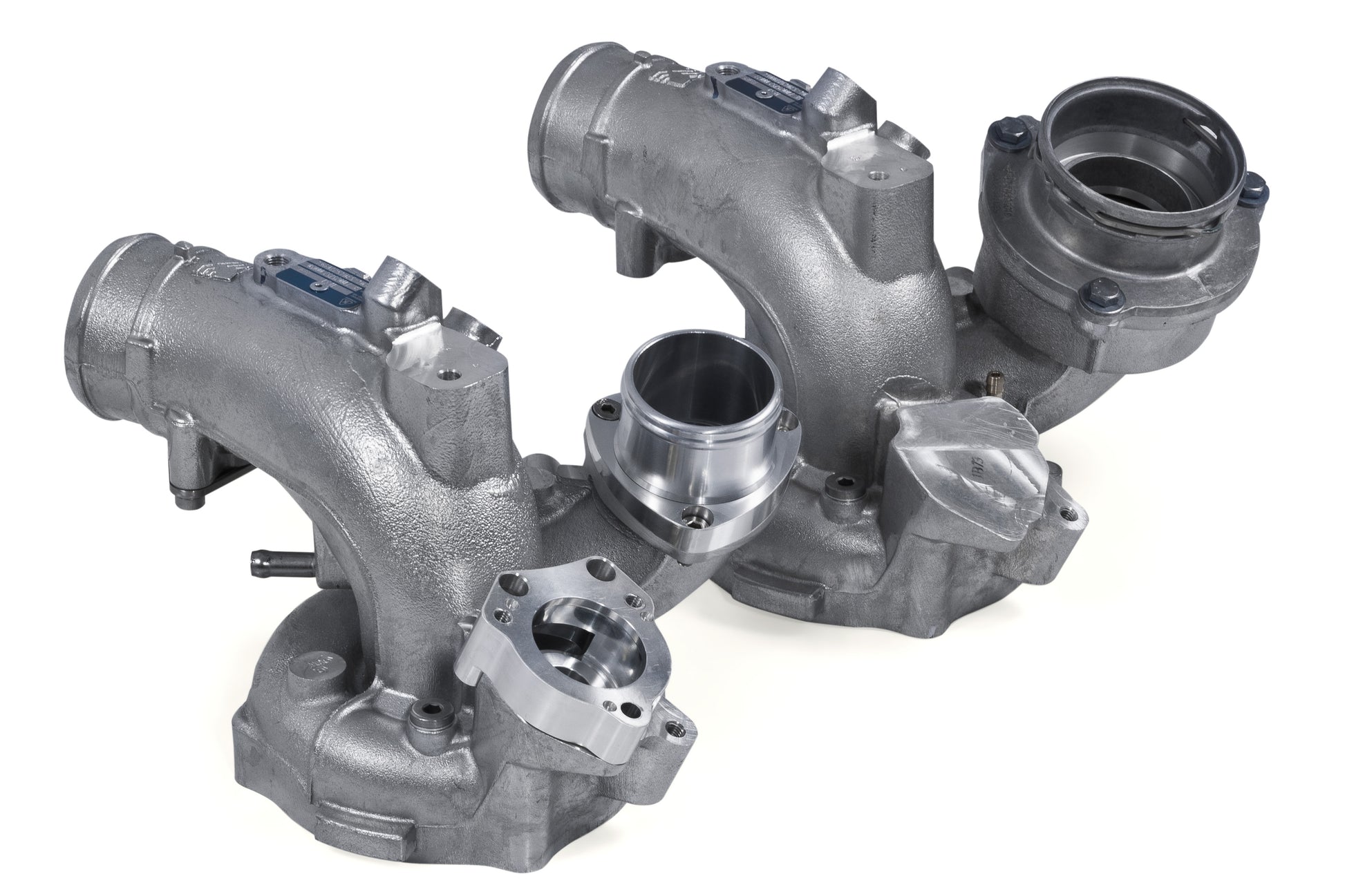

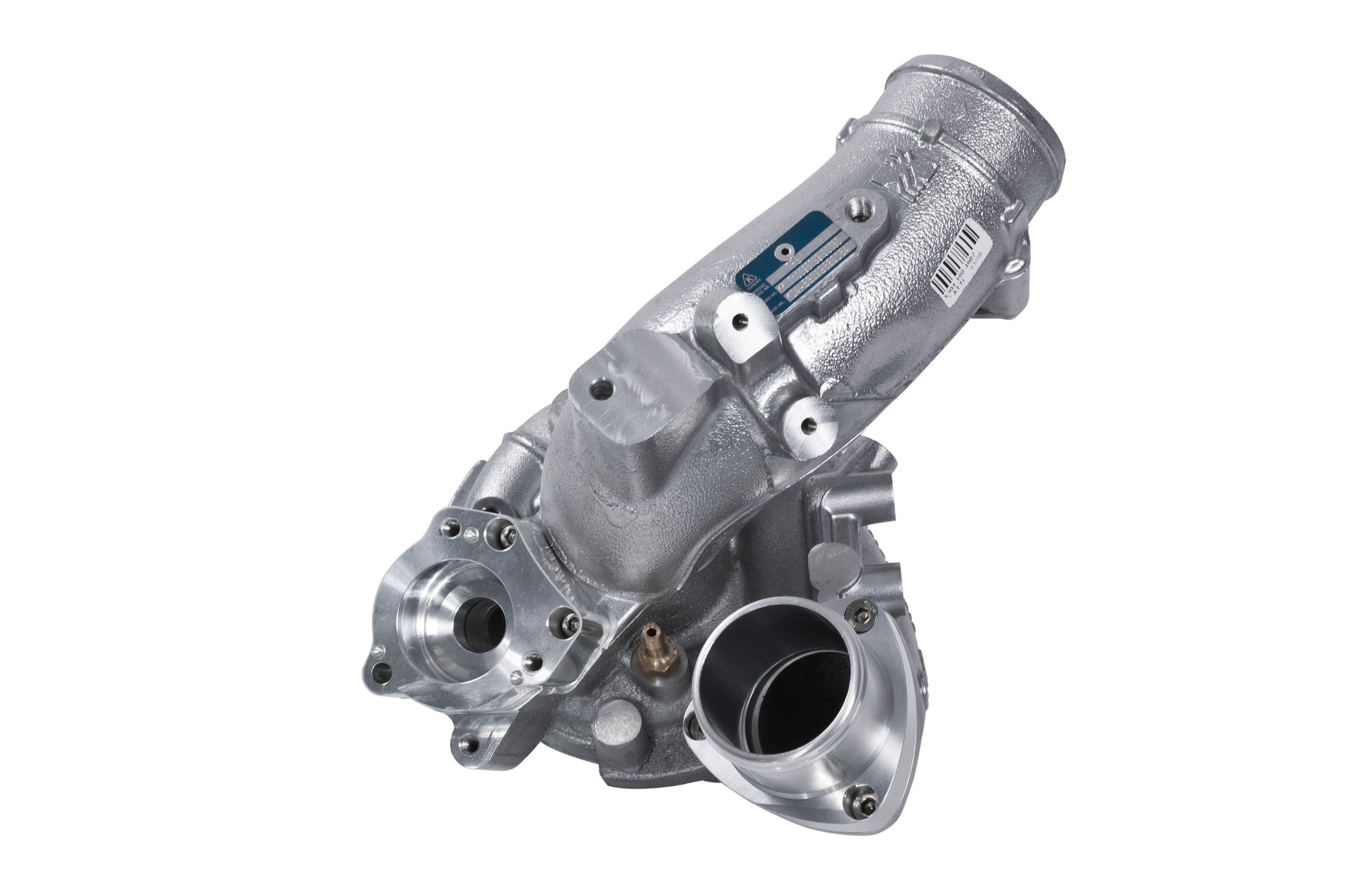

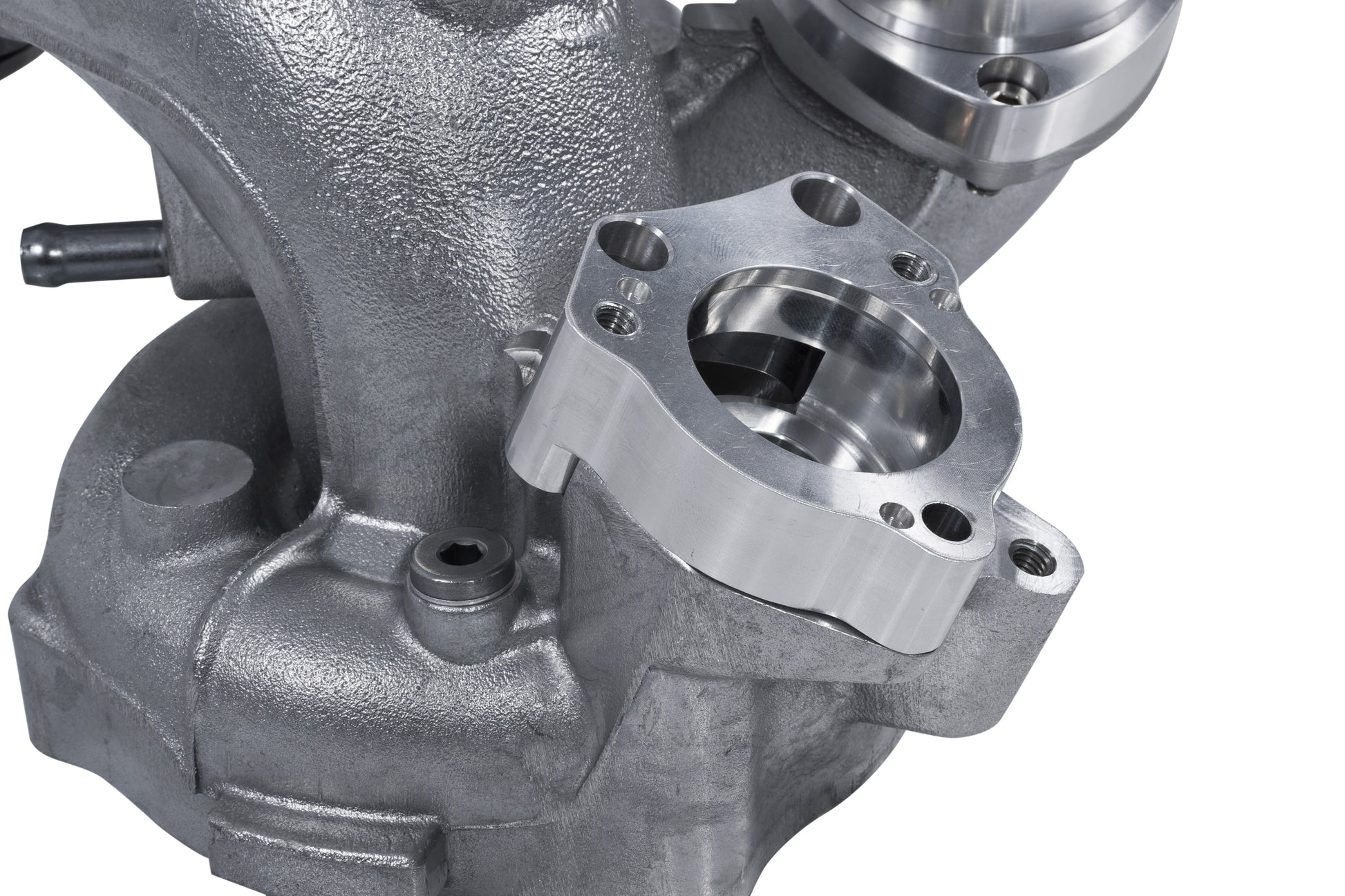

Description_MKT	One of the greatest benefits to the APR K04 turbocharger system is its simple, yet elegant design. APR's CNC machined direct compressor recirculation port on the OEM compressor cover significantly reduces engine bay clutter and saves the end user from the hidden costs of purchasing extra throttle body pipes, hoses, clamps and DV mounts for recirculating boost pressure. The compact design also removes extra charge piping volume to allow for lightning fast boost response and less locations for boost leaks. Furthermore, charge air pressure is directed directly at the compressor wheel which helps keep the turbo spooled upon lifting the throttle, minimizing turbo lag.
Description_MKT	The OEM k04 turbocharger features a turbo muffler designed to reduce turbocharger sound in the cabin that also creates a restriction in the boost pressure delivery stream. APR removes the turbo muffler not only to enhance the sound of the turbocharger, but also to smooth the airflow across the previously baffled muffler section. This also eliminates the need to Purchase an OEM S3 turbo discharger pipe. A clean and simple CNC flange developed by APR's Engineering Team is bolted directly to the compressor cover in place of the OEM turbo muffler. A long mounting surface provides an excellent slip proof surface for mounting the silicon discharge hose and an o-ring between the flanges ensures a life of leak proof operation.
Description_FAB	Big power and torque gains
Description_FAB	OEM K04 drop-in turbo
Description_FAB	High quality materials and components throughout
Description_FAB	ECU software included
