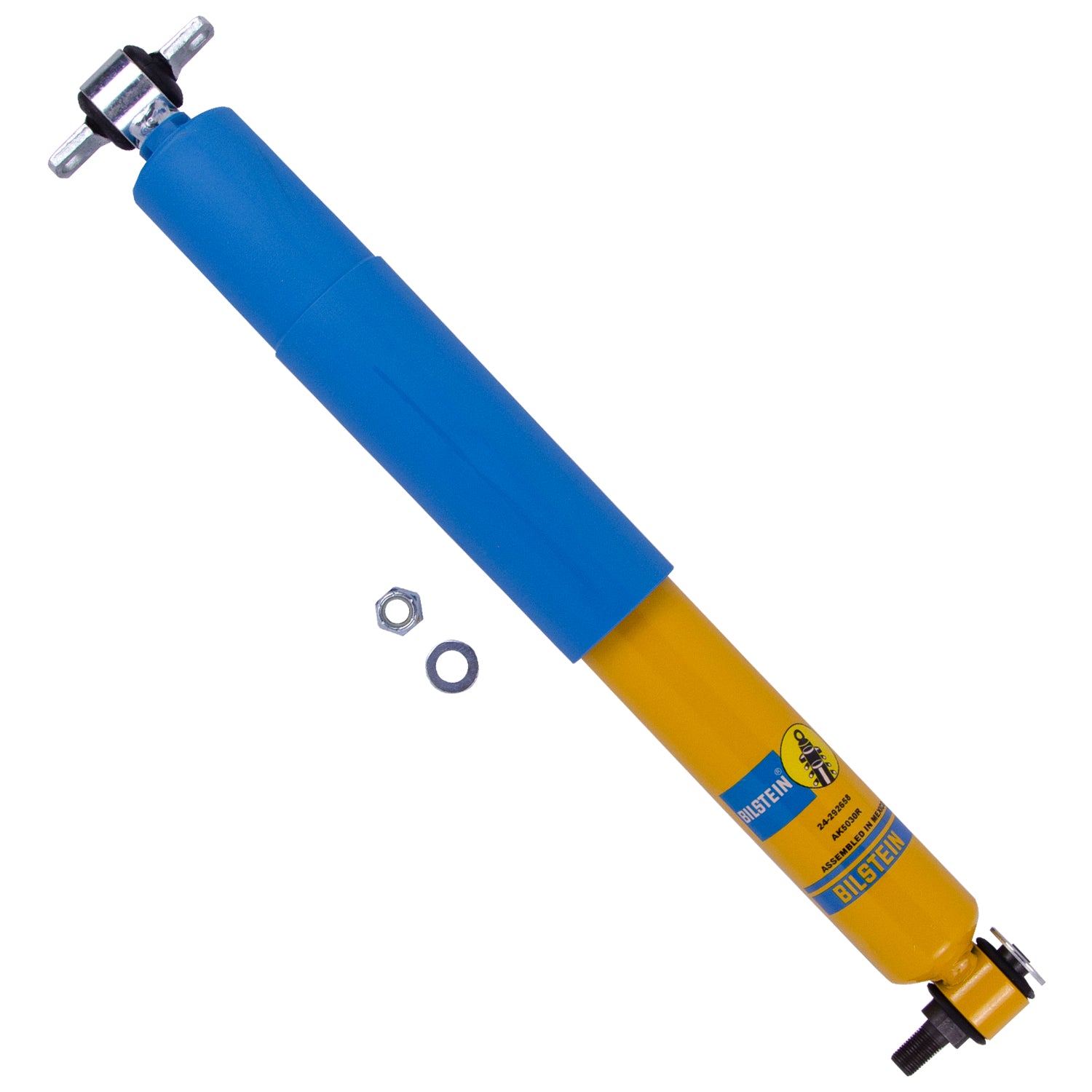

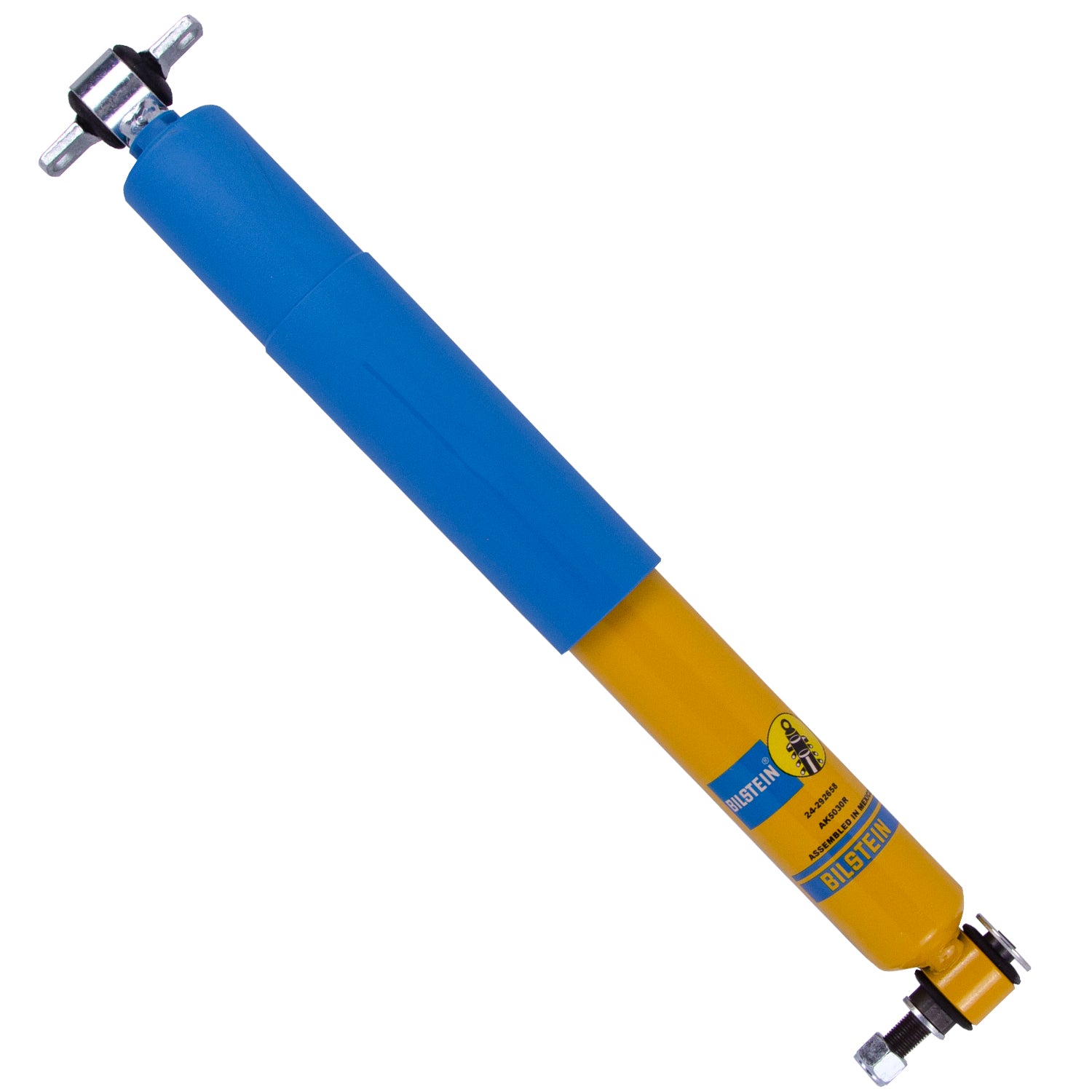

AK Series Suspension Shock Absorber GM G/H body Motorsport Rear AK5030R Bilstein

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability.

AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Details:

• Series: AK Series
• Internal Design:Monotube
• Lower Mount Type: Cantilever
• Upper Mount Type: Bar Pin
• Finish: Yellow Paint
• Adjustable: Non-Adjustable
• Body Design: Stock Mount Smooth Body
• Collapsed Length Inch: 13.11
• Body Material: Steel
• Compression at 52m s: 805
• Extended Length Inch: 20.28
• Boot Included: Blue Straight
• Pistion Diameter: 46mm
• Pistion Type: Digressive
• Rebound at 52m/s: 2730
• Shaft Diameter: 11mm
• Stroke Travel Length In: 7.17
• Stroke Travel Length In: 182.1
• Notes: GM G/H body Motorsport Rear AK5030R
• Warranty: Limited 90 Day Warranty
