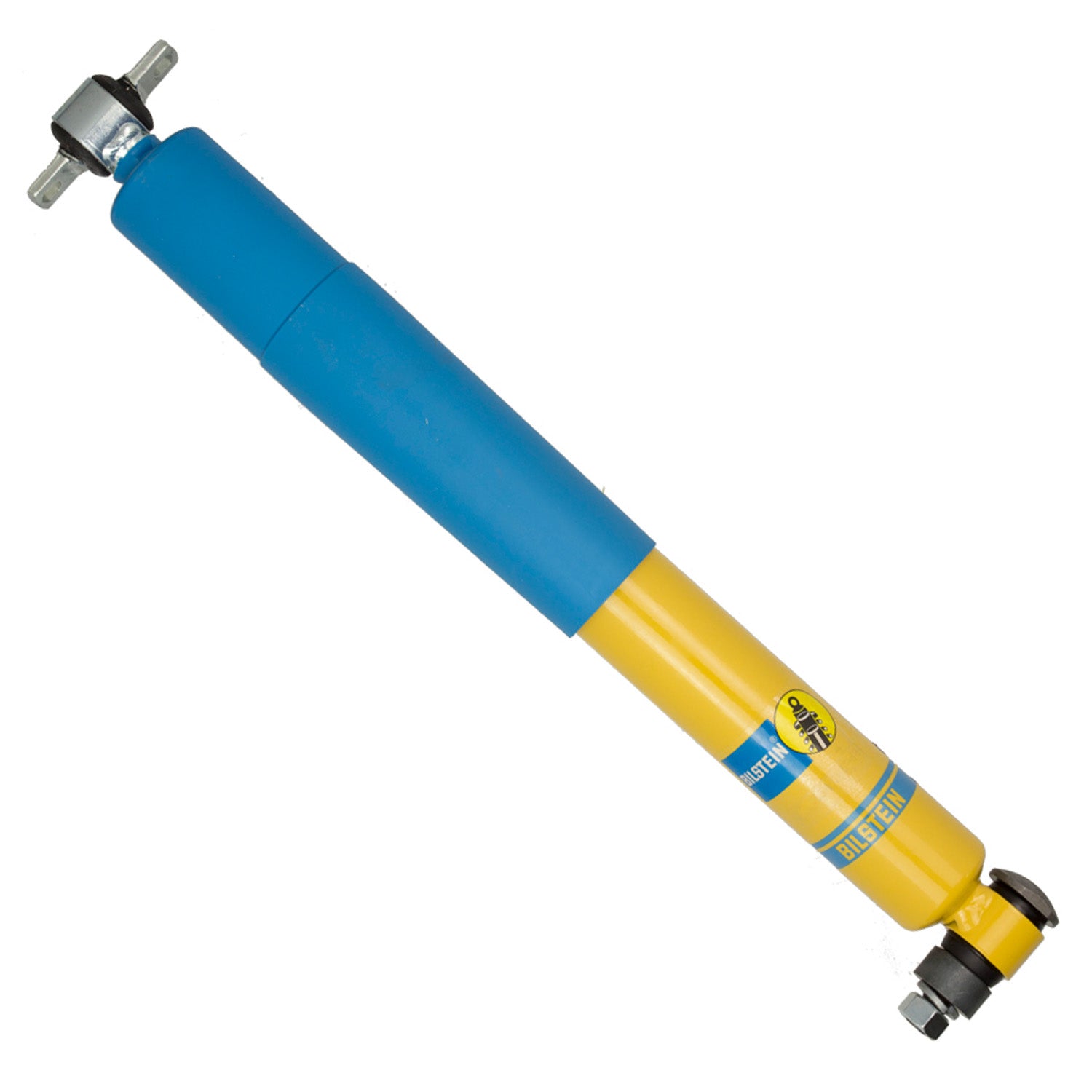

AK Series Suspension Shock Absorber 158/117 Digressive AK3030R Bilstein

Bilstein AK Series Suspension Shock Absorbers are designed for motorsports applications that require the use of the OE mounting components.

Each Suspension Shock Absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability.

AK Series Suspension Shock Absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Details:

• Series: AK Series
• Internal Design:Monotube
• Lower Mount Type: Cantilever
• Upper Mount Type: Bar Pin
• Finish: Yellow Paint
• Adjustable: Non-Adjustable
• Body Design: Stock Mount Smooth Body
• Collapsed Length Inch: 13.11
• Body Material: Steel
• Compression at 52m s: 835
• Extended Length Inch: 20.28Blue Straight
• Pistion Diameter: 46mm
• Pistion Type: Digressive
• Rebound at 52m/s: 1185
• Shaft Diameter: 11mm
• Stroke Travel Length In: 7.17
• Stroke Travel Length In: 182.1
• Notes: 158/117 Digressive AK3030R
• Warranty: Limited 90 Day Warranty
