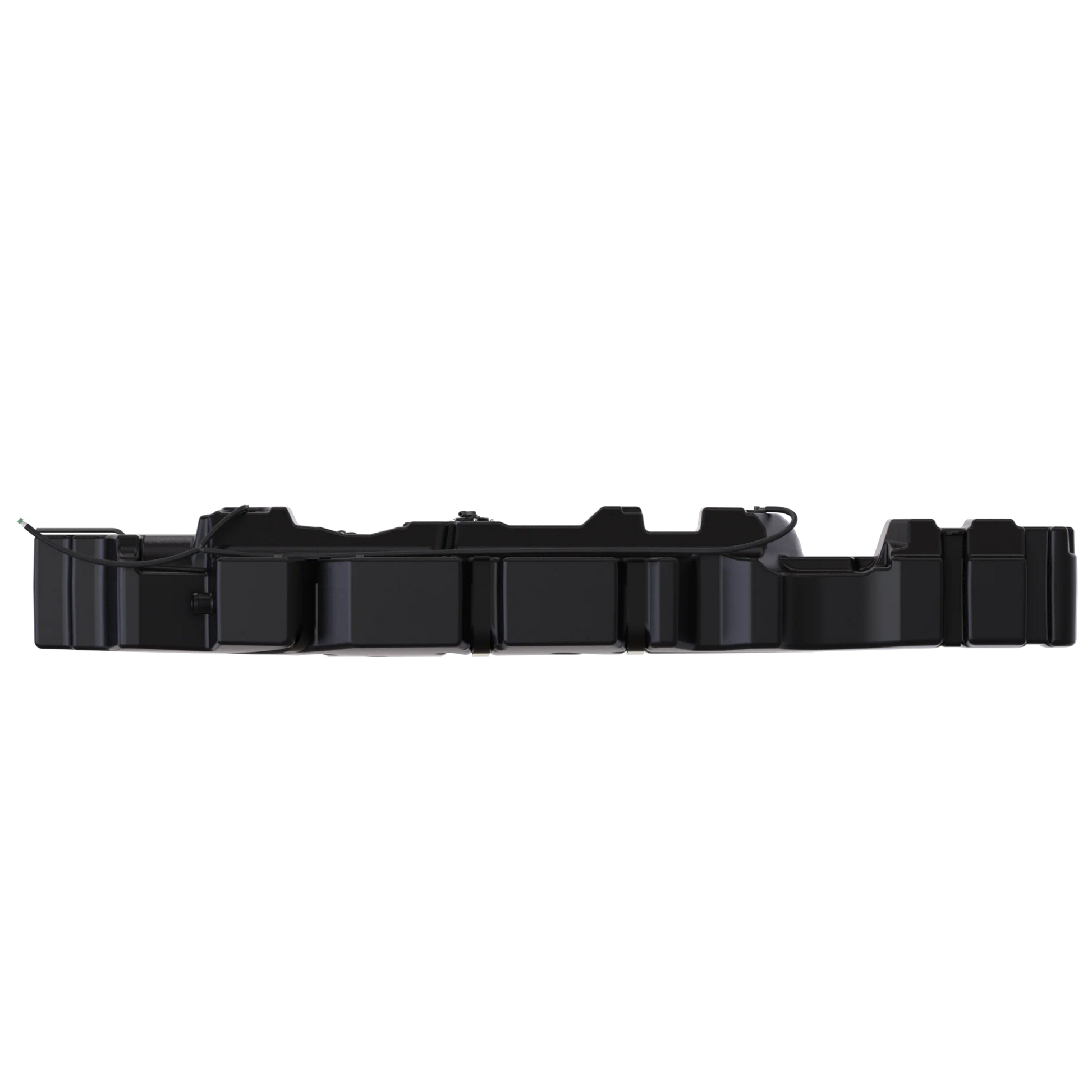

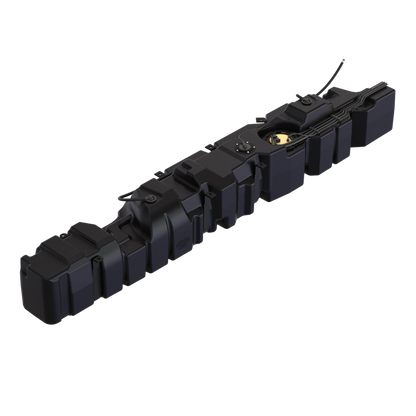

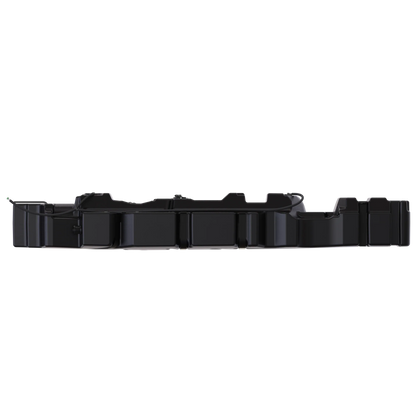

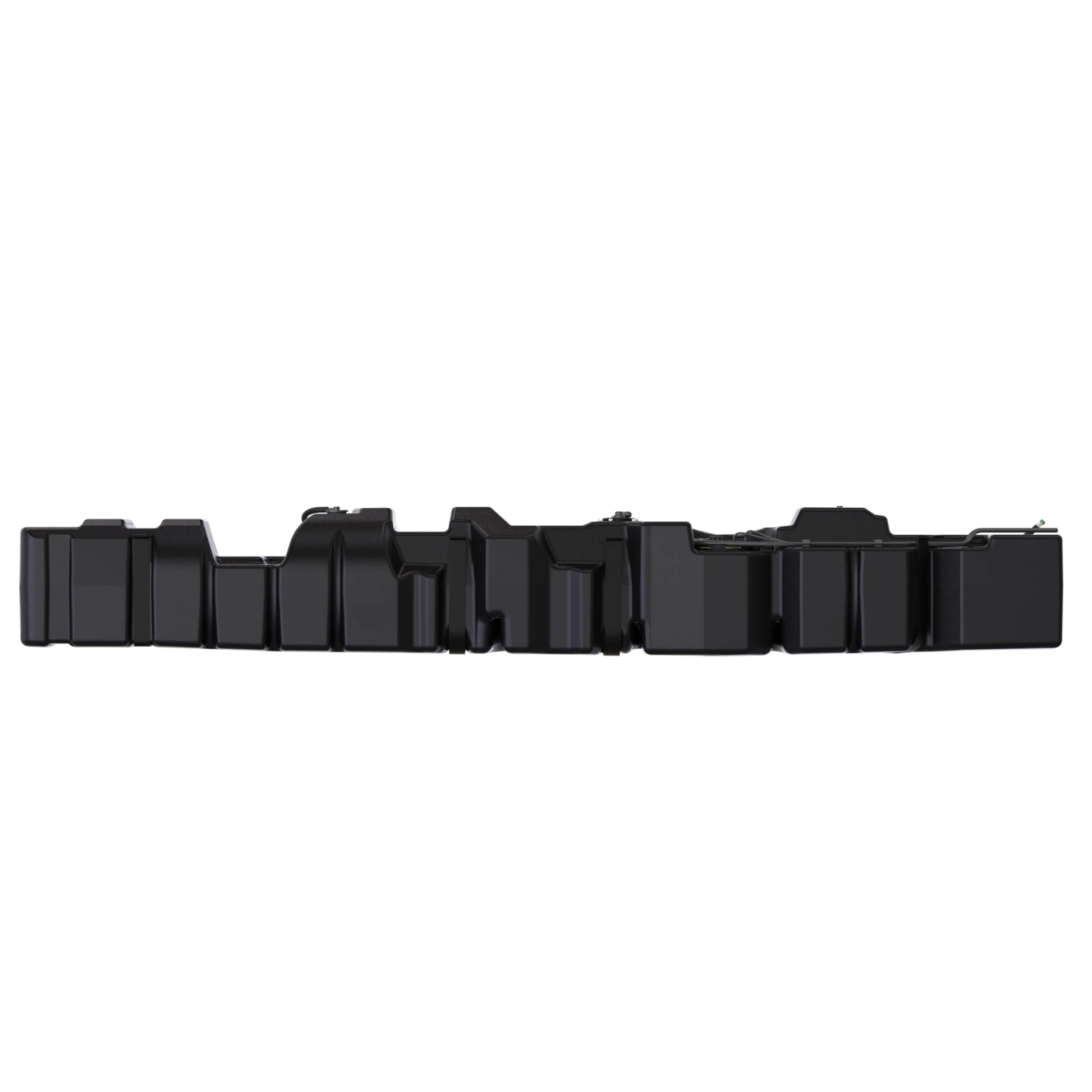

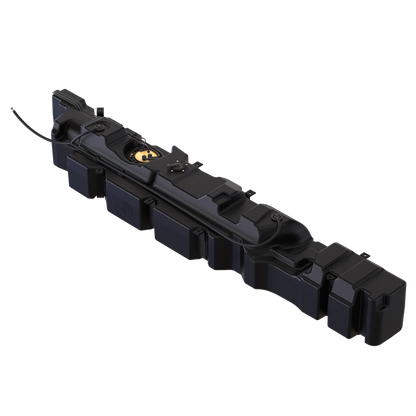

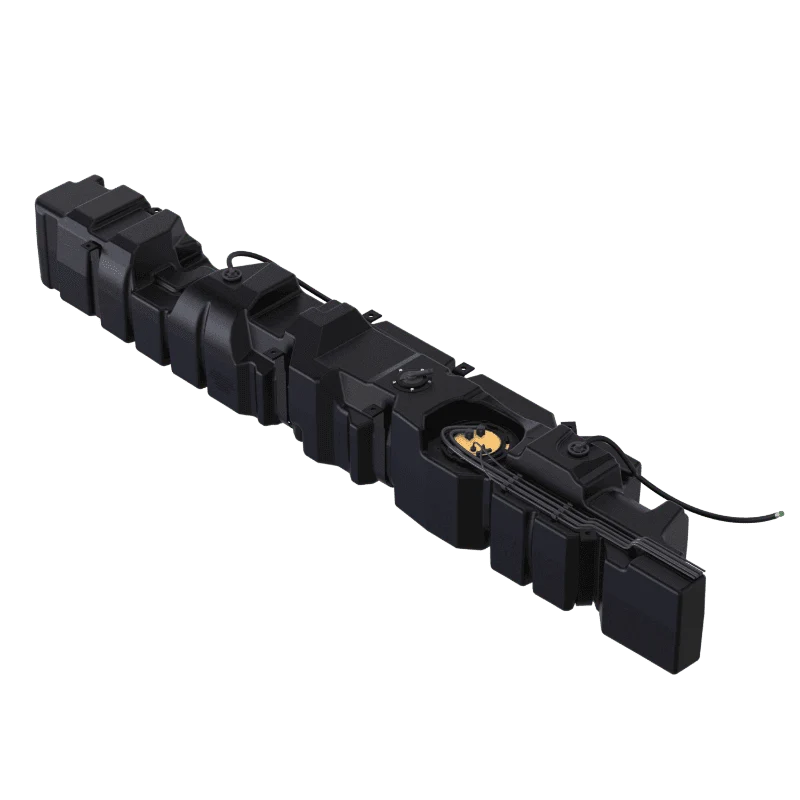

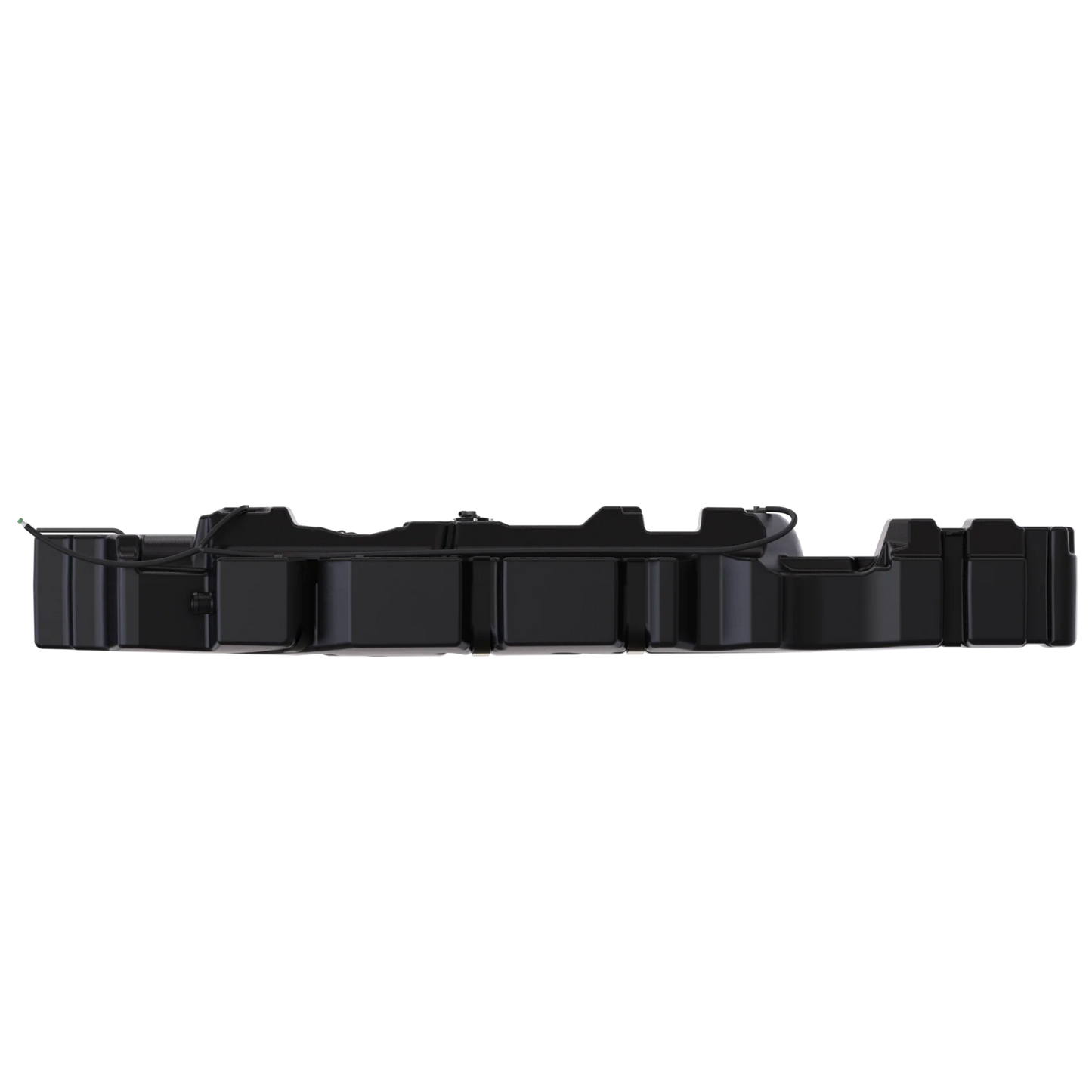

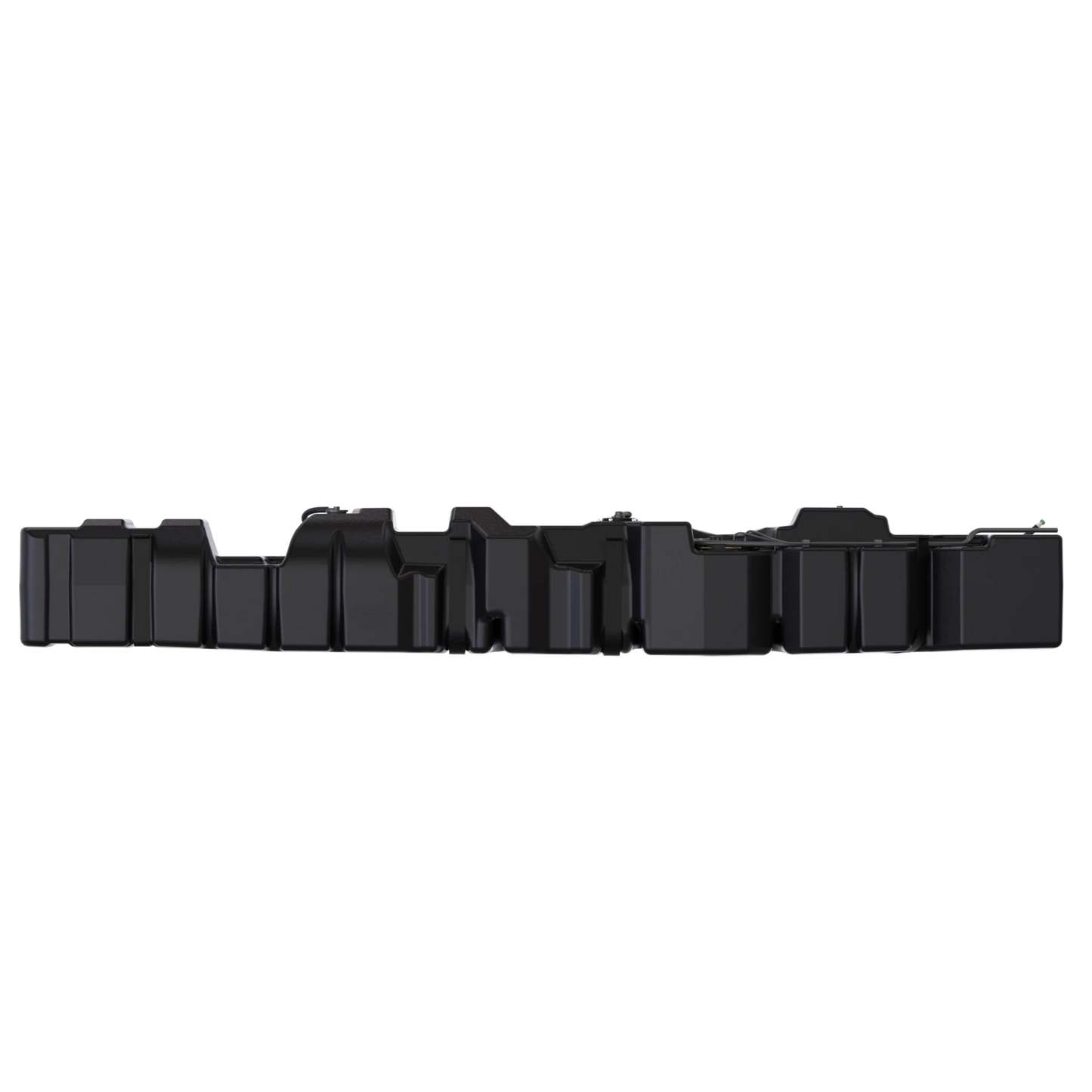

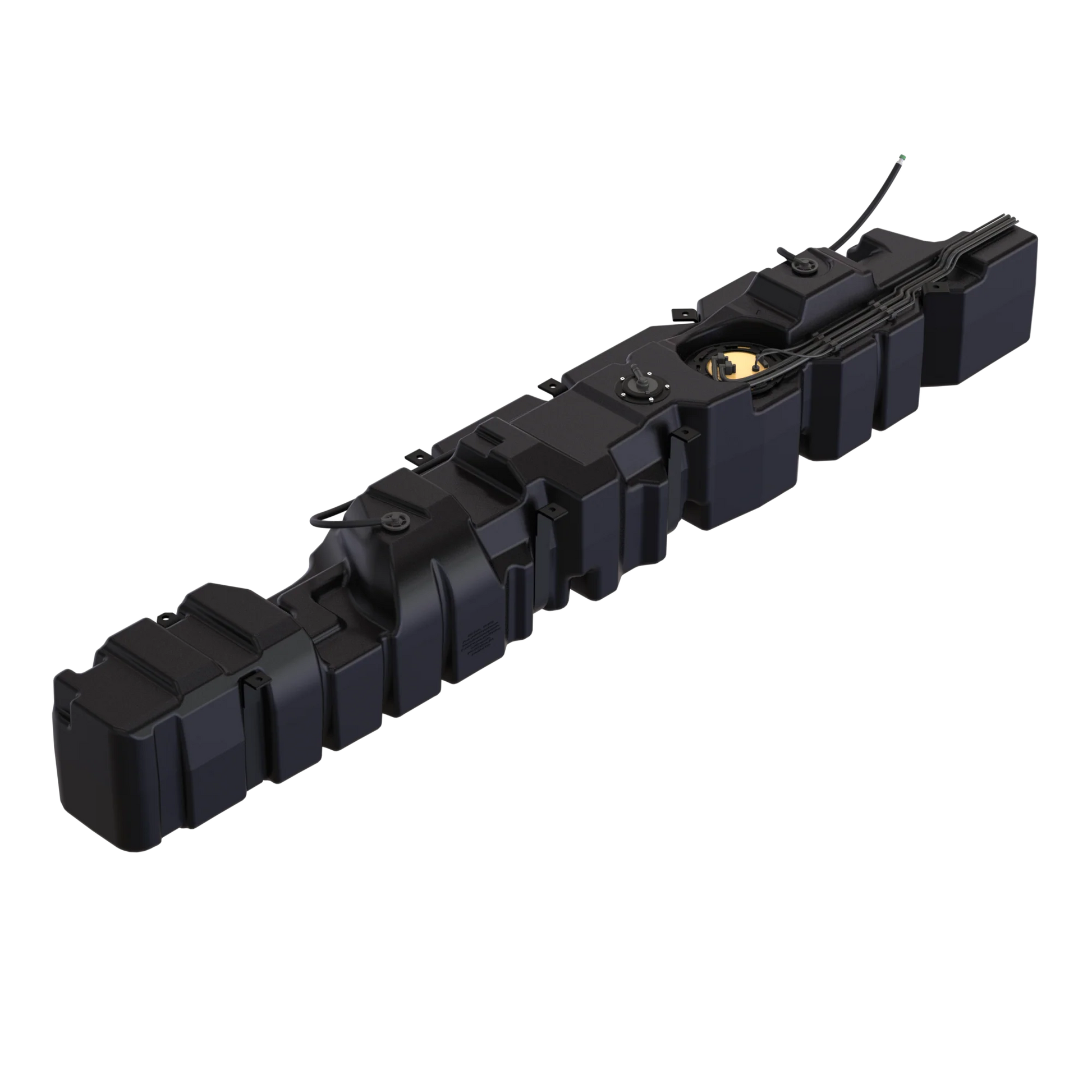

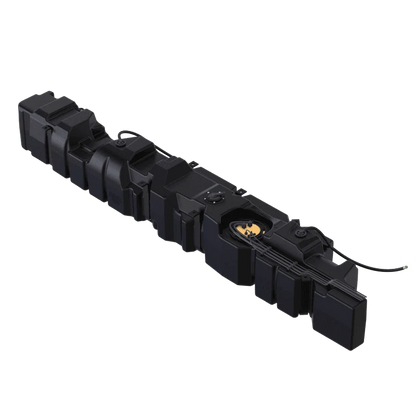

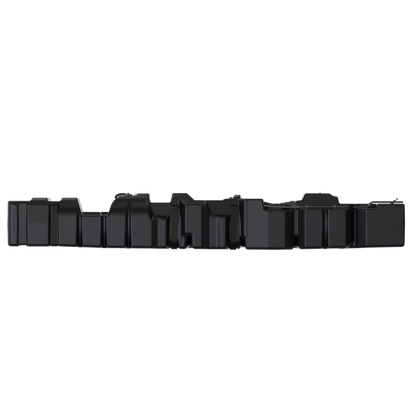

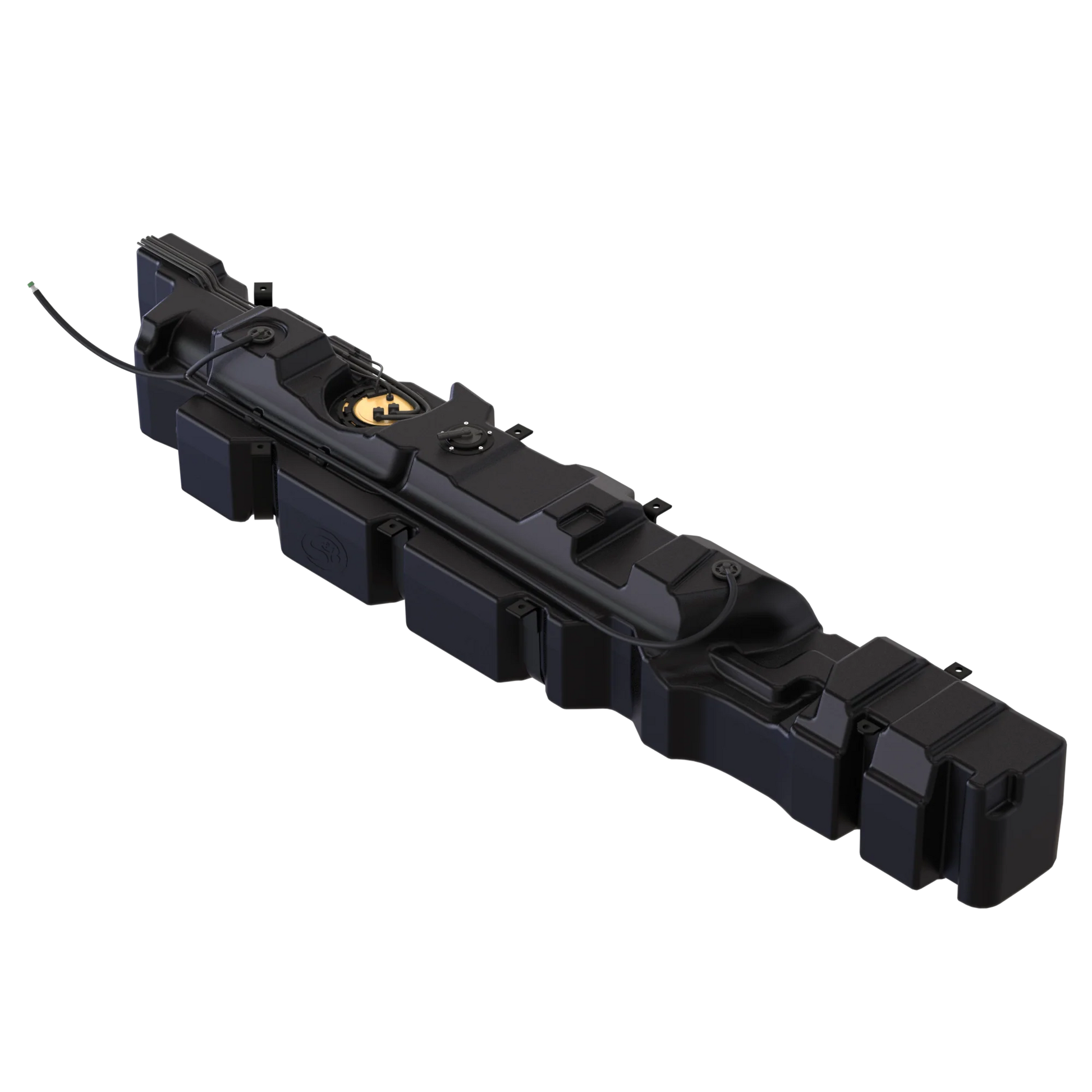

45 Gallon Replacement Fuel Tank for 2023-2024 Mercedes Sprinter 144" and 170" Wheelbase
45 Gallon Replacement Fuel Tank for 2023-2024 Mercedes Sprinter 144" and 170" Wheelbase
Couldn't load pickup availability
- If there is an applicable core charge, it will be included in this price and will be avail for a refund when approved after cores are returned and inspected. core charges can apply to injectors, turbos, injection pumps and possibly a few other parts. please contact if you have any questions.
- 144” Dually Vans
- 170” Crew Vans (1 row of seats)
- Vans with plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member
Storyteller XO: If seat brace recall# 25V-070 was performed on 2024-25 Vans it will fit. Tank will fit on 2026+ XO Storytellers or if van isn't affected by recall.
2023+ Vans: Part # 10-1032 is a shorter 40 gallon tank and will work for 170" Crew Vans and vans with plumbing 5"+ behind the OEM tank.
2019-2022 Vans: Part # 10-1027 is a shorter 40 gallon tank and will work for 170" Crew Vans, 144” Dually Vans, and vans with plumbing 5"+ behind the OEM tank.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call your Mercedes dealer to confirm if you have this option. If you don’t have it, you will need TI1349-00 or TI1527-00. We recommend TI1527-00 as it also reprograms your Miles to Empty reading.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
Product Details
| Dimensions | 98.28" X 15.41" X 14.17" |
| Drain | No |
| Ground clearance compare to oe tank | 1.5" |
| Oem capacity | 24 Gallons |
| Sending unit | OE |
| Straps included | Yes |
| Sump | No |
| S&B Capacity (Approximate) | 45 Gallons |
| Tank type | Midship |
| Weight dry | 45lbs |
Vehicle Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2023-2026 | Mercedes | Sprinter | 2.0L, Diesel |
| 2019-2022 | Mercedes | Sprinter | 3.0L, Diesel |
| 2020-2023 | Storyteller | Classic Mode 4x4 | 3.0L, Diesel |
| 2020-2023 | Storyteller | Beast Mode 4x4 | 3.0L, Diesel |
| 2020-2024 | Winnebago | Navion | 3.0L, Diesel |
| 2020-2024 | Winnebago | View | 3.0L, Diesel |
| 2021-2023 | Storyteller | Stealth Mode 4x4 | 3.0L, Diesel |
| 2022-2023 | Pleasure-Way | Rekon 4x4 | 3.0L, Diesel |
| 2022-2023 | Winnebago | Adventure Wagon 70 | 3.0L, Diesel |
| 2023-2026 | Storyteller | Classic Mode 4x4 | 3.0L, Diesel |
| 2023-2026 | Storyteller | Stealth Mode 4x4 | 3.0L, Diesel |
| 2023-2026 | Storyteller | Beast Mode 4x4 | 3.0L, Diesel |
| 2025-2026 | Winnebago | Ekko | 2.0L, Diesel |
