S&B FILTERS

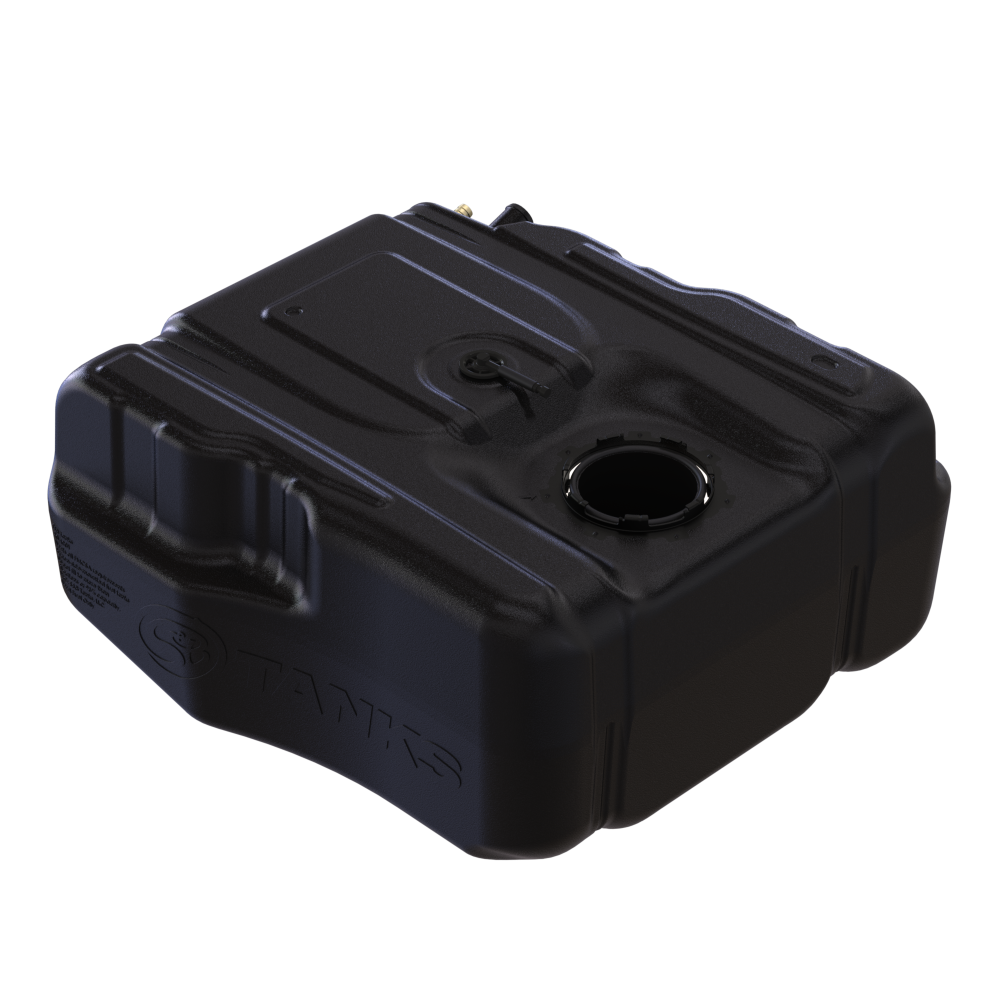

40 Gallon (After Axle) High-Capacity Fuel Tank for 2011-2016 Ford F250, F350, F450, F550 Powerstroke 6.7L, Cab Chassis
40 Gallon (After Axle) High-Capacity Fuel Tank for 2011-2016 Ford F250, F350, F450, F550 Powerstroke 6.7L, Cab Chassis
Couldn't load pickup availability
- If there is an applicable core charge, it will be included in this price and will be avail for a refund when approved after cores are returned and inspected. core charges can apply to injectors, turbos, injection pumps and possibly a few other parts. please contact if you have any questions.
Important Note: The nozzle at high-flow fuel stations (truck stops) will not be able to fill automatically. Skid plates and straps are NOT included. These parts are reused.
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
This is a direct replacement to the OEM 40 gallon tank. This and your current OEM tank are the same size and shape. This poly tank resolves the problem of the OEM steel tank delaminating and damaging your fuel system.
| Compatible with gooseneck and 5th wheel | Yes |
| Compatible with oe skid plate | Yes |
| Dimensions | 30.21" X 31.22" X 14.95" |
| Drain | No |
| Embedded fitting thread size | 1/2" NPT |
| Ground clearance compare to oe tank | Same |
| Sending unit | OE |
| Straps included | No |
| Sump | No |
| S&B Capacity (Approximate) | 40 Gallons |
| Tank type | AFT |
| Transfer pump ready | No |
| Weight dry | 25lbs |
Vehicle Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2011-2016 | Ford | F-250 | 6.7L, Diesel |
| 2011-2016 | Ford | F-350 | 6.7L, Diesel |
| 2011-2016 | Ford | F-450 | 6.7L, Diesel |
| 2011-2016 | Ford | F-550 | 6.7L, Diesel |
Install Instructions
View Instructions Watch Install Video
Prop 65 Warning
WARNING: This product can expose you to chemicals including carbon black, silica - crystalline, methylene chloride, and lead which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm.
