S&B FILTERS

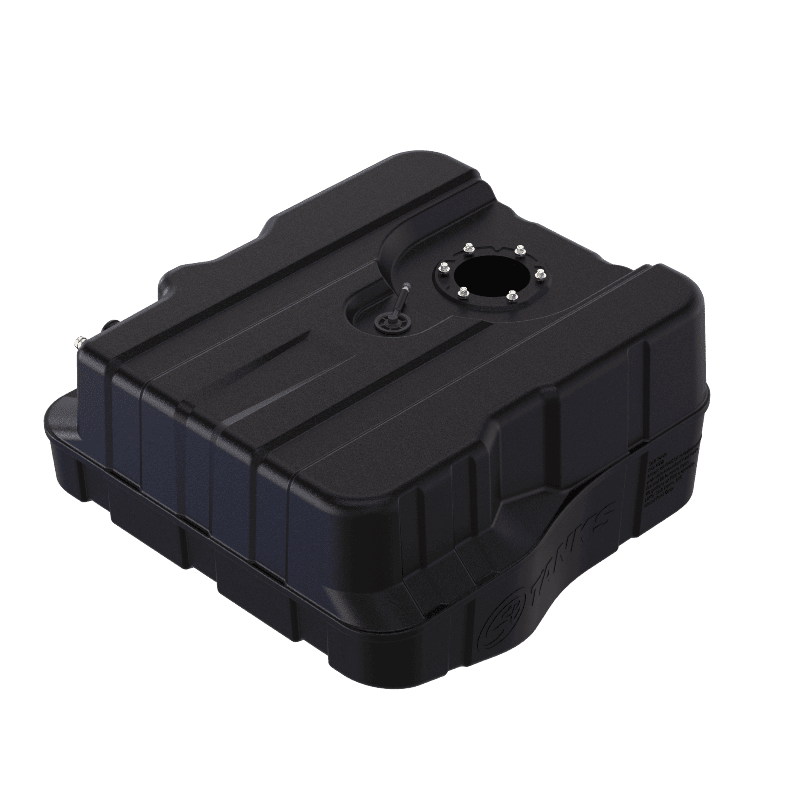

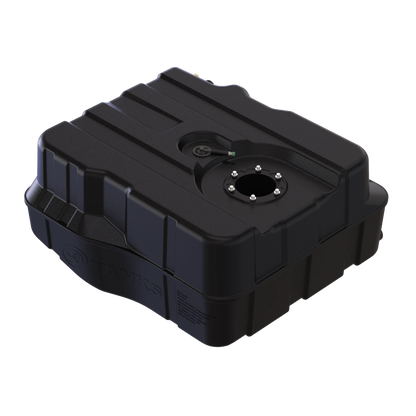

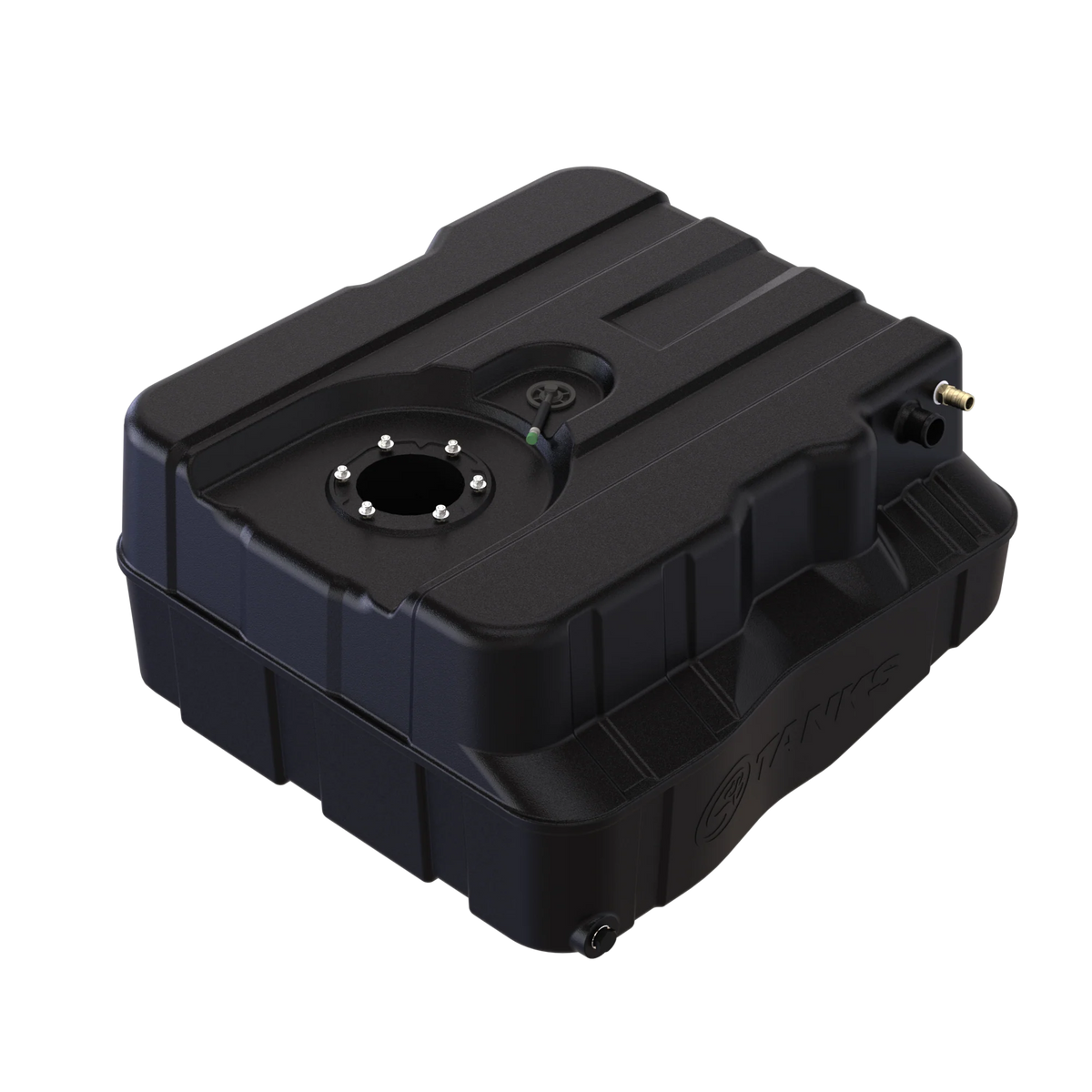

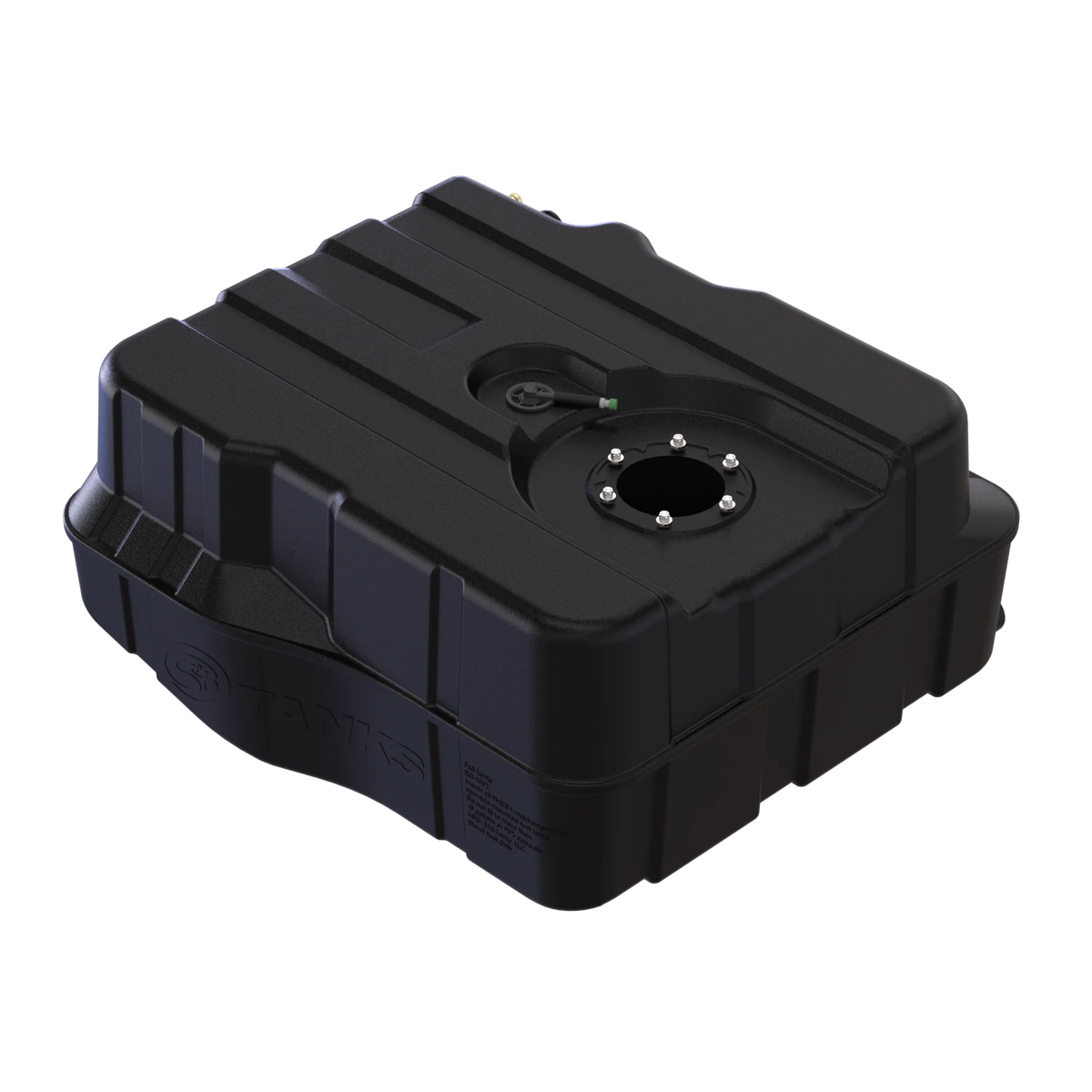

40 Gallon (After Axle) High-Capacity Fuel Tank 2000-2010 Ford Powerstroke 7.3L, 6.0L, 6.4L F-350, F-450, F-550 Cab Chassis
40 Gallon (After Axle) High-Capacity Fuel Tank 2000-2010 Ford Powerstroke 7.3L, 6.0L, 6.4L F-350, F-450, F-550 Cab Chassis
Couldn't load pickup availability
- If there is an applicable core charge, it will be included in this price and will be avail for a refund when approved after cores are returned and inspected. core charges can apply to injectors, turbos, injection pumps and possibly a few other parts. please contact if you have any questions.
Important Note: Skid plates and straps are NOT included. These parts are reused. Torque Spec is 30 in/lbs for sending unit nuts
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.

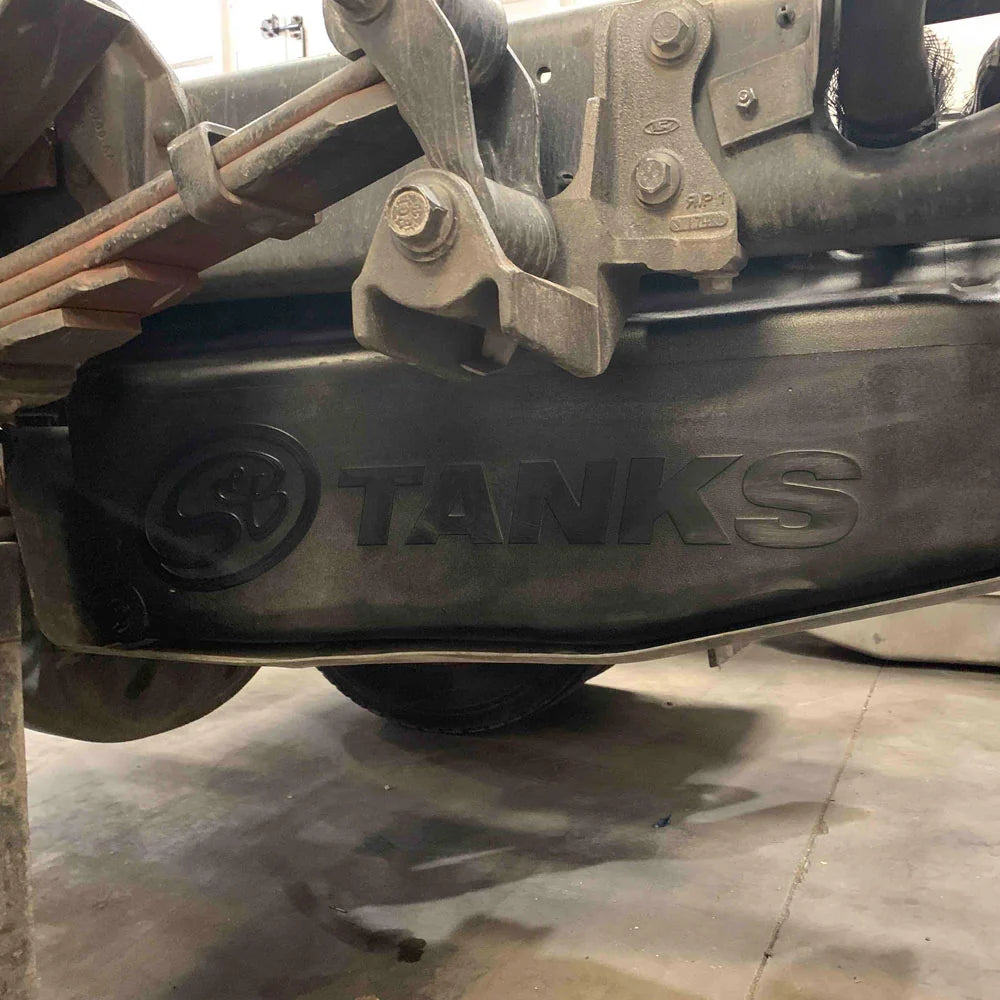

This is a direct replacement to the OEM 40 gallon tank. This and your current OEM tank are the same size and shape. This poly tank resolves the problem of the OEM steel tank delaminating and damaging your fuel system. This tank does NOT fit 1999 trucks.
| Compatible with gooseneck and 5th wheel | Yes |
| Compatible with oe skid plate | Yes |
| Dimensions | 31.84" X 31.77" X 14.94" |
| Drain | Yes |
| Embedded fitting thread size | 1/2" NPT |
| Ground clearance compare to oe tank | Same |
| Sending unit | OE |
| Straps included | No |
| Sump | No |
| S&B Capacity (Approximate) | 40 gallons |
| Tank type | AFT |
| Transfer pump ready | No |
| Weight dry | 28lbs |
Vehicle Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2000-2003 | Ford | F-350 | 7.3L, Diesel |
| 2000-2003 | Ford | F-450 | 7.3L, Diesel |
| 2003-2007 | Ford | F-350 | 6.0L, Diesel |
| 2003-2007 | Ford | F-450 | 6.0L, Diesel |
| 2008-2010 | Ford | F-350 | 6.4L, Diesel |
| 2008-2010 | Ford | F-450 | 6.4L, Diesel |
Install Instructions
View Instructions Watch Install Video
