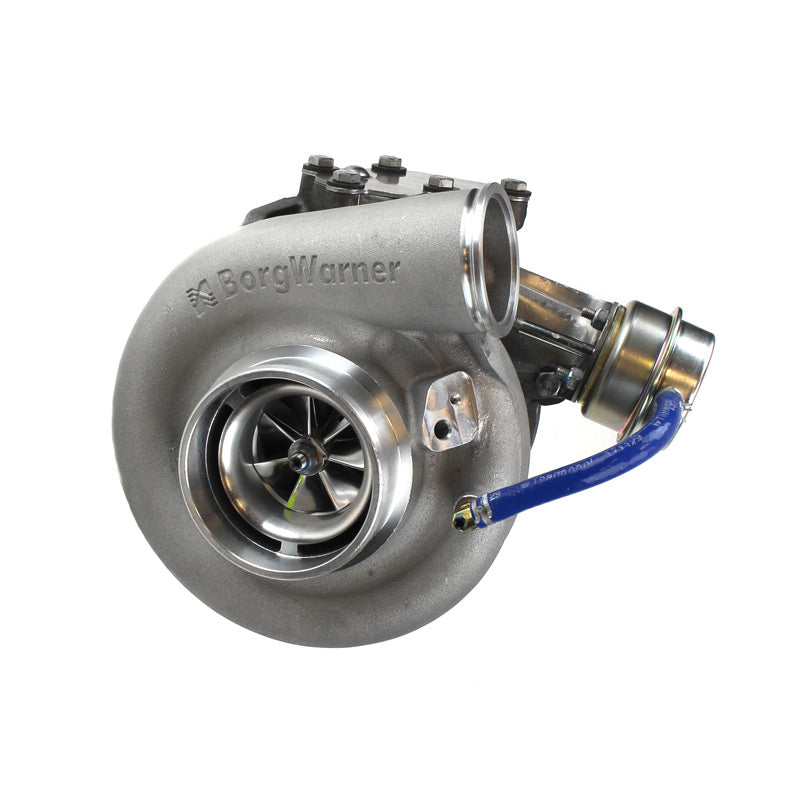

1994-2002 5.9 Cummins Viper PhatShaft Turbos - 64 Turbo 12cm Housing-3642306801

FEATURES:
Increased Performance
Lower EGTs
Designed For Towing & Daily Driving
62mm, 63mm or 64mm Compressor Wheel
68mm Turbine Wheel
(FMW) Forged Milled Compressor Wheel
360* Thrust Bearing
Dual Grooved High Performance Journal Bearings
Drop In Replacement Turbo
The Industrial Injection Viper PhatShaft Series Turbos were designed to handle mild fueling upgrades to help increase overall performance and be perfect for towing, daily driving or street performance. The PhatShaft comes equipped with an extended tip 62mm, 63mm or 64mm forged milled compressor wheel and 360 degree thrust bearing. The PhatShaft utilizes the 68mm turbine wheel and is available in a 12cm or 14 cm exhaust housing in which we modify the angle of the exhaust nozzle, maximize the wastegate ports, and enlarge the wastegate chamber for full wastegate travel. Like all PhatShaft turbochargers it is equipped with dual grooved high performance bearings and an adjustable boost elbow. We recommend the 12cm Housing for 12 valve and 24 valve trucks for faster spool up.

NOTE: Requires HX40 Downpipe

NOTE: Depending on the factory oil drain configuration it may need to be slightly modified to clear the wastegate rod

Part Number: 3642306801
