ICON Vehicle Dynamics

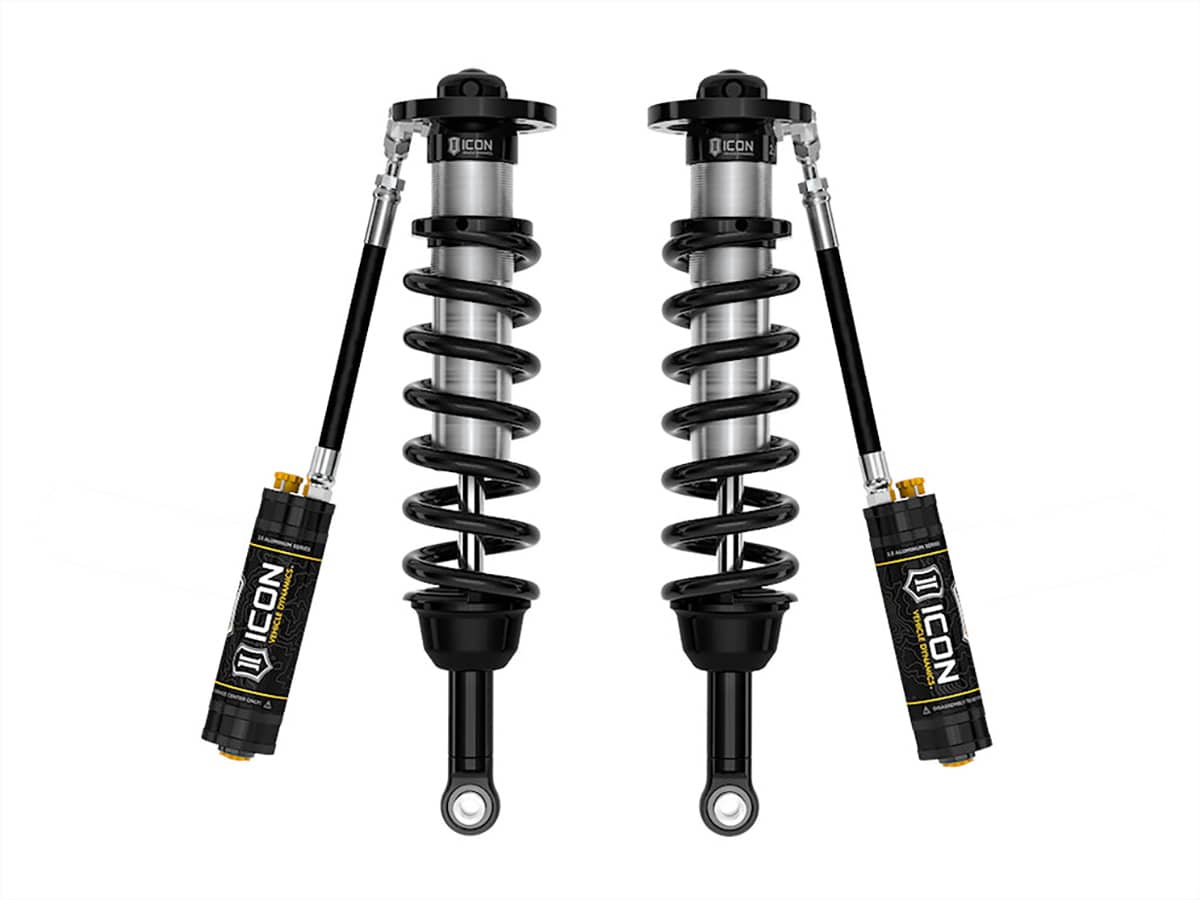

2.5 VS RR CDCV COILOVER KIT 1.25-4.5" LIFT 22-25 TUNDRA / 23-25 SEQUOIA
2.5 VS RR CDCV COILOVER KIT 1.25-4.5" LIFT 22-25 TUNDRA / 23-25 SEQUOIA
Couldn't load pickup availability
- If there is an applicable core charge, it will be included in this price and will be avail for a refund when approved after cores are returned and inspected. core charges can apply to injectors, turbos, injection pumps and possibly a few other parts. please contact if you have any questions.
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Adjustable up to 1.25-3.5" of front lift height over stock on Tundra or 3-4.5" of front lift on Sequoia
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Important Note: ICON does not recommend lifting above 2.25" (Tundra)/3.75" (Sequoia) without an ICON upper control arm, failure to do so can result in improper wheel alignment and cause damage to front axles on 4WD models For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part ICT-55156) or using Toyota TRD axles. Failure to do so could result in front axle damage. Not required for TRD Pro. Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install If equipped with TRD aluminum skid plate part ICT-55164 is also required Not compatible with OE TRD billet front upper control arms regardless of lift height. Vehicles equipped with these will require ICON Delta Joint Pro UCAs (ICT-58461DJ or ICT-58561DJ) Tundra lift heights above 2.25” require sway bar drop bracket kit part number ICT-55154. Required for all lift heights on T
