16 Gallon Passenger Side Undercarriage Fresh Water Tank 2007-24 Mercedes Sprinter 144" & 170"
16 Gallon Passenger Side Undercarriage Fresh Water Tank 2007-24 Mercedes Sprinter 144" & 170"
Couldn't load pickup availability
- If there is an applicable core charge, it will be included in this price and will be avail for a refund when approved after cores are returned and inspected. core charges can apply to injectors, turbos, injection pumps and possibly a few other parts. please contact if you have any questions.

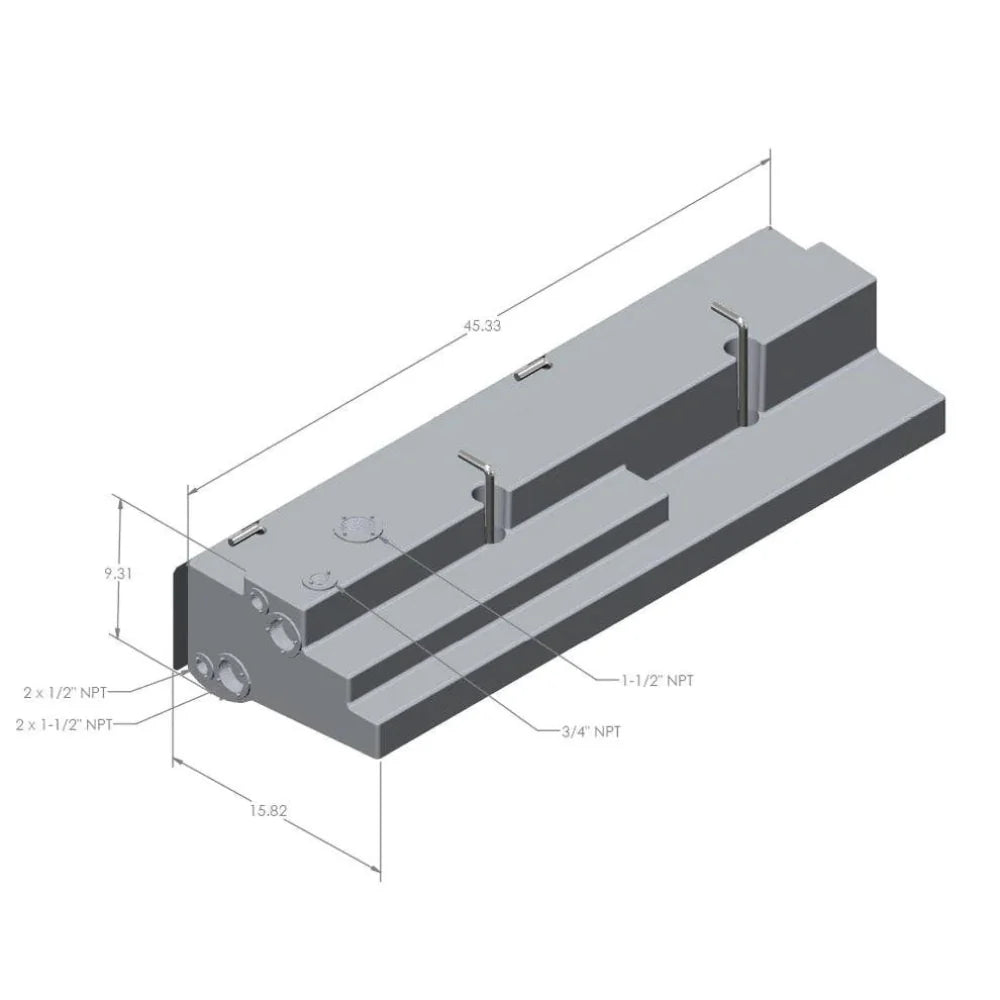

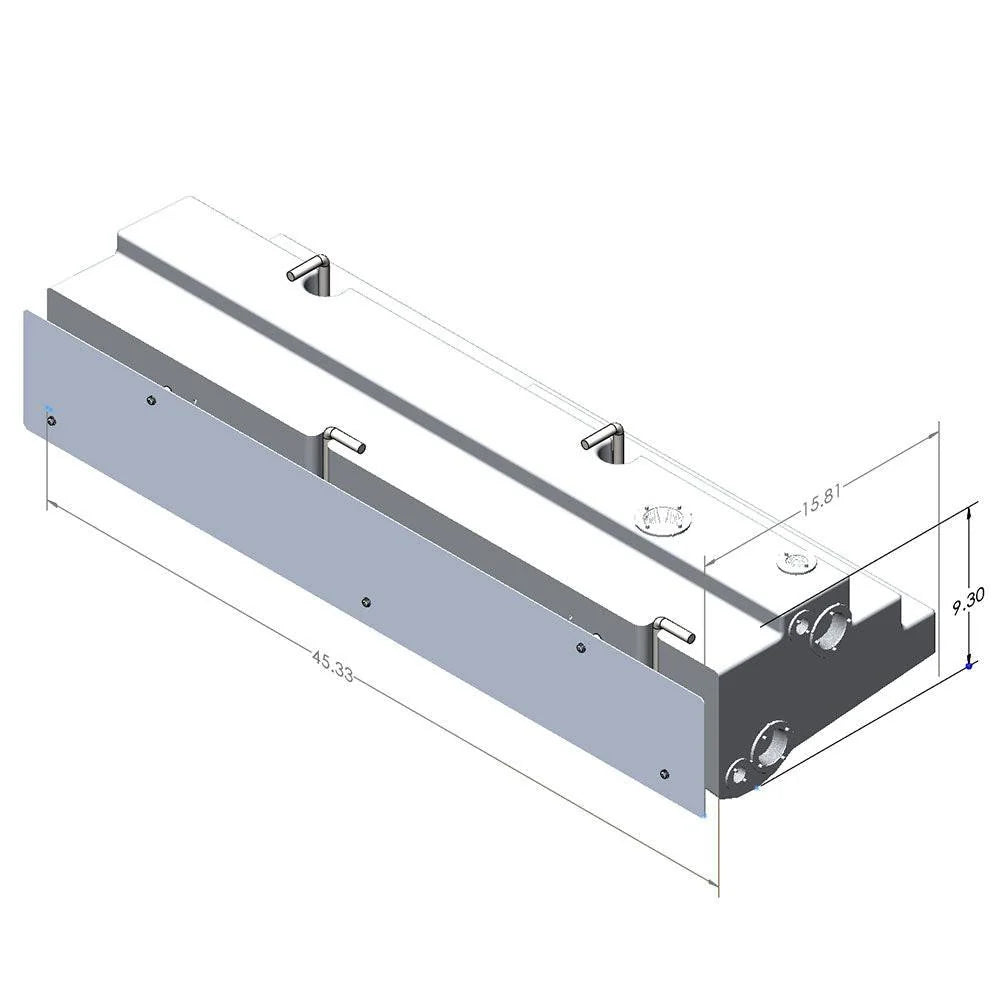

Tank Dimensions:
45.33" Length x 15.5" Width x 8.31" Height
*Tank dimensions are approximate. Dimensions can vary up to .5".
Tank is confirmed to fit with Owl Side Steps. Will not work with AMP steps. There is .8" between the tank and body. (where the side steps mount)
Please confirm you have inboard holes for hangers before ordering. This tank will not fit gas vans or vans with a DEF tank mounted under the van or amp steps.
TEI Tested & Listed / RVIA Approved / BPA Free.
Product Details
| Kus level sensor height | 6" |
| Kus level sensor part number | S5U-6 (Not Included) |
| Straps included | YES |
| S&B Capacity (Approximate) | 16 |
| Tank type | Passenger side undercarriage |
| Tei listed | YES |
| Weight dry | 20 LBS |
Vehicle Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2023-2026 | Mercedes | Sprinter | 2.0L, Diesel |
| 2007-2025 | Mercedes | Sprinter | 3.0L, Diesel |
