BD DIESEL

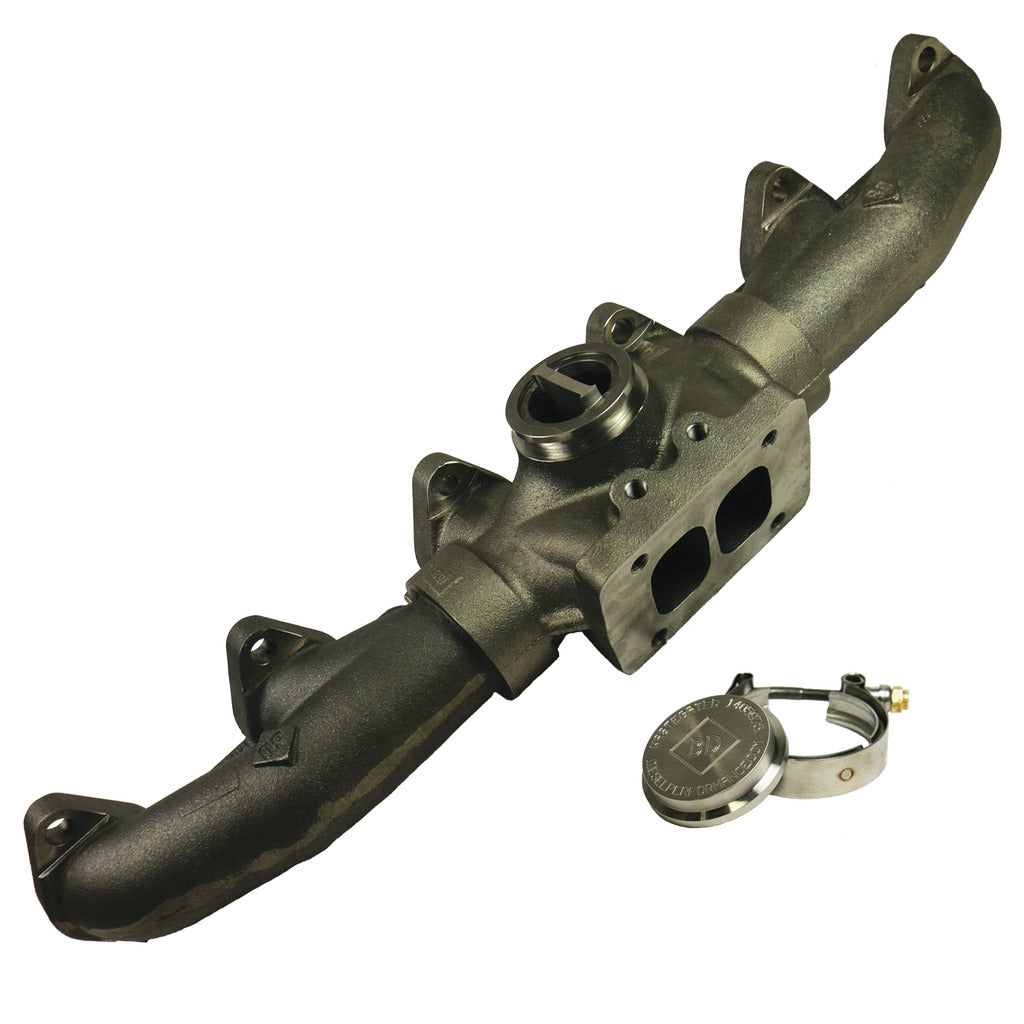

20-degree Waste Gated Exhaust Manifold T4 Mount DODGE 5.9L Cummins-1045996-T4

20-degree Waste Gated Exhaust Manifold T4 Mount DODGE 5.9L Cummins-1045996-T4

Regular price $850.95 CAD
Regular price Sale price $850.95 CAD
Sale Sold out
Shipping calculated at checkout.

Protect your turbocharger with a performance manifold designed with a waste gate in mind. Cast and machined wastegate port completely divides the manifold into two sections to retain the divided pulse manifold flow. Internal geometry is optimized through Computational Fluid Dynamics (CFD), which increases flow throughout the RPM band for your high flowing T4 of T6 based turbo. Thick-wall cast high silicone ductile iron retains heat energy. Precision slip joints allow the manifold to expand and contract, which reduces cyclic thermal fatigue and greatly increase manifold longevity. 1/8-NPT ports are pre-drilled and tapped.
FEATURES

Gasket, Bolt and Spacers kits are available separately
Better cylinder exhaust evacuation to keep EGTs down
Combustion Pulse remains constant with the W/G valve closed
Machined for use with 45mm Hyper Gate or Turbo Smart
Block off plate and clamp provided
Gate port area is 1.67 sq. in. - 33% of T4 / 12% of T6 inlet
Improves turbo response Price includes applicable core fee . Part Number: 1045996-T4
