BD DIESEL

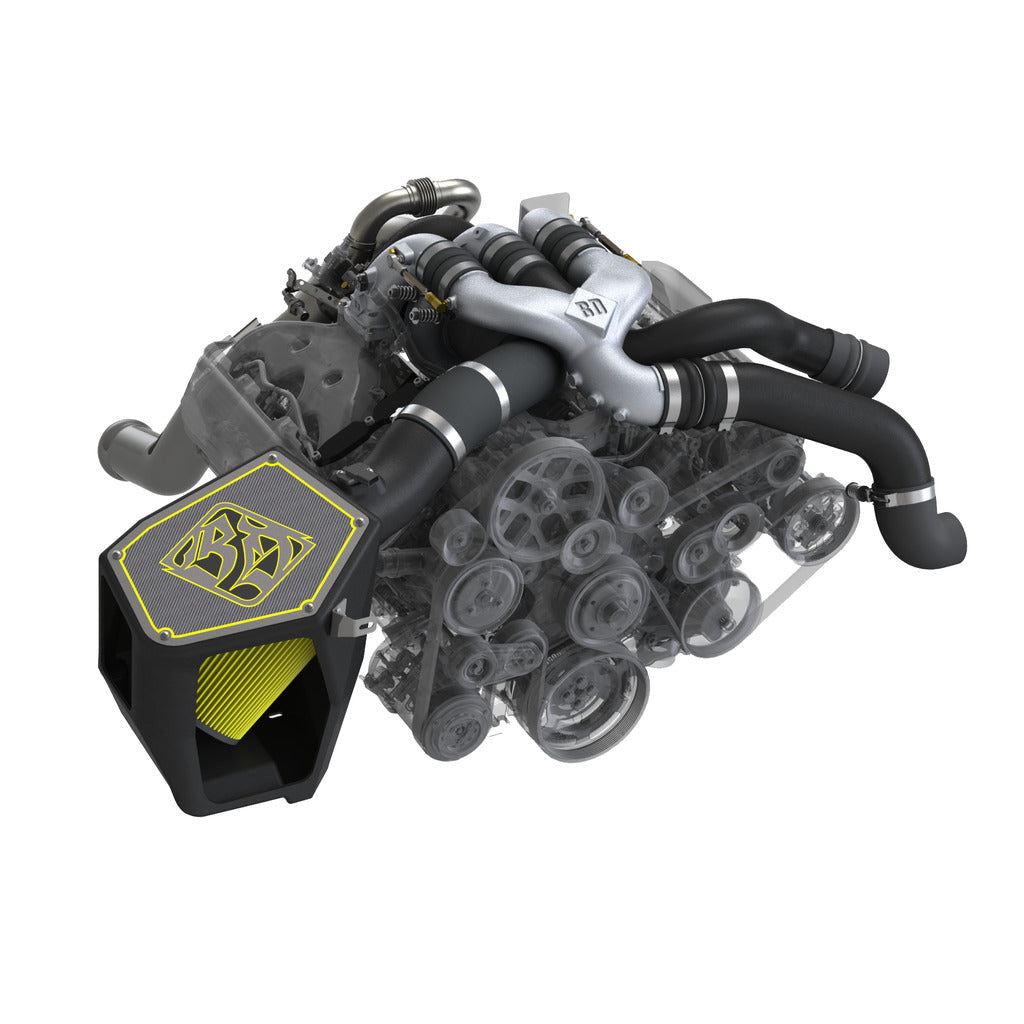

POWERSTROKE 6.7L SCORPION TURBO KIT

POWERSTROKE 6.7L SCORPION TURBO KIT

Regular price $6,775.00 CAD
Regular price Sale price $6,775.00 CAD
Sale Sold out
Shipping calculated at checkout.

Designed with both reliability and performance in mind, the BD scorpion kit grants you the opportunity to take advantage of high-flow Borg Warner S300 SXE or S400 SXE turbochargers. The turbocharger is mounted directly to a BD cast iron T4 manifold, built to maximize both durability and performance. To minimize EGT's, a smooth-wall Y-bridge evenly distributes air to all eight cylinders. From stock hp levels, to those wanting to push past 700hp, the BD Scorpion Kit is the perfect combination of performance a reliability.

FEATURES
Larger turbochargers available for even higher horsepower
Race tune required (not included)
BD 90-deg compressor cover with 2.75in (S300) or 3.00in (S400) outlet
BD high performance T4 flanged exhaust manifold, stainless heatshield and crossover tube
BD billet aluminum pedestal block with oil drain and feed. Includes 1/8 NPT water feed port if using water cooled waste gate (Or CHRA).
BD high strength A356 aluminum intake horns
BD high strength A356 Y-Intake with meth, NOS and boost pressure sensor bosses
BD custom 4in cold air intake with 8in OD high-flow velocity stacked filter
BD complete high flow aluminized 4in downpipe that mates to stock flange position for easy install to stock or aftermarket exhaust systems
BD cold air charge tubes, 3.5in intercooler to intake tubes with pressure sensor provision
Stainless heat shield keeps heat in and intake temperatures down
Incorporated dual 1/8 NPT EGT ports as well as the provision to use a factory EGT sensor
BD Boot Lock ready with boss positions on intake and outlets
Compatible with stock or aftermarket water-to-air intercooler
INSTALL TIME
9 Hours
WARRANTY
Parts
12-Months
12,000 Miles
Note
Wheel burst resulting from over speeding is not warrantable
NOTE
2015-up model years require 1045805 application kit
Not for sale on licensed California vehicles
Requires tuner with special programming due to VGT removal: EZ Lynk tuned by PPEI, or SCT (custom tuned) Part Number: 1045800
